Develon Maskiner hos Dansk Maskincenter

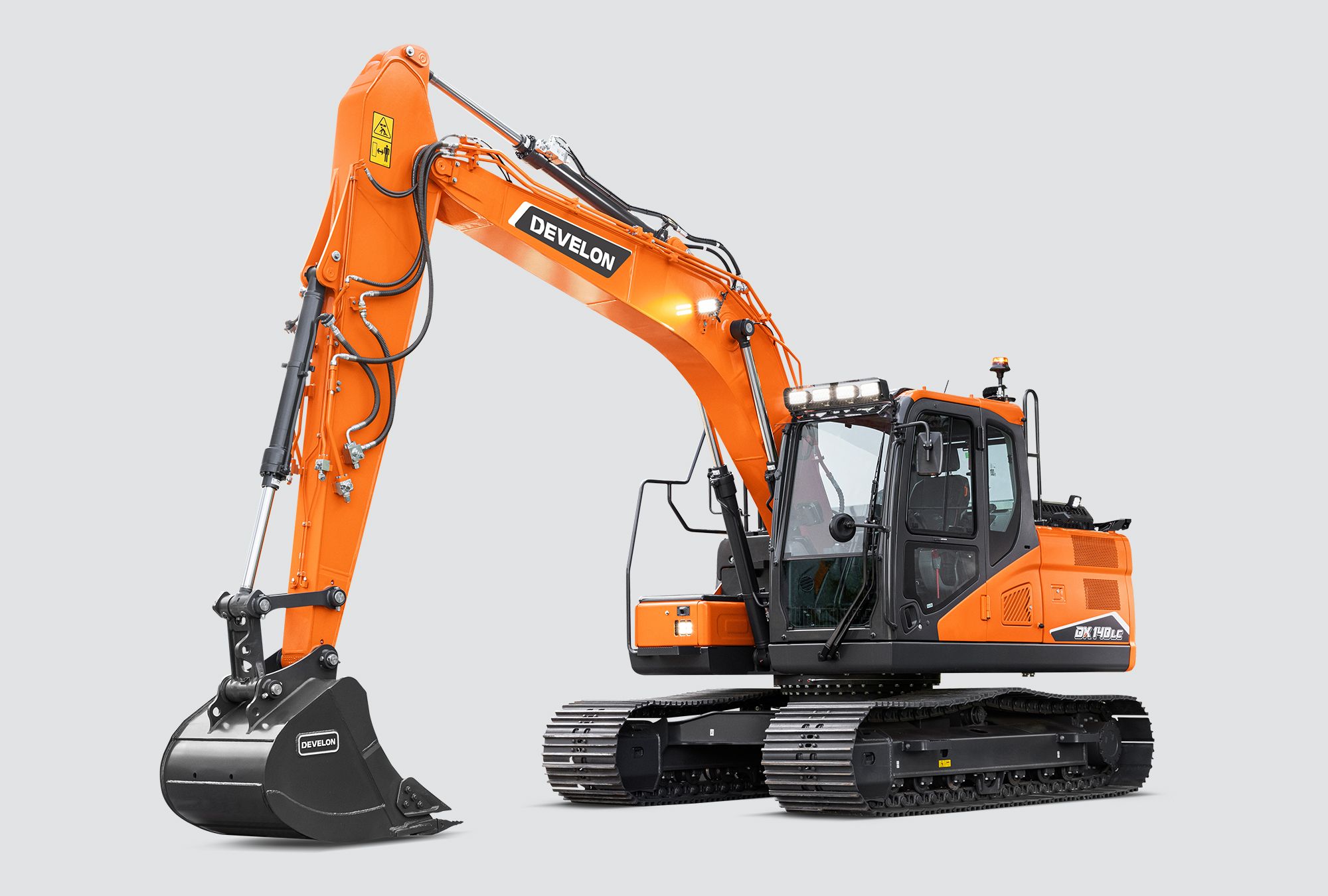

DX140LC-7
Maximum power
115 HP
Operating weight
14.400 kg
Buckets
0.51 m³
Emission standard
Stage V
Engine
Develon G2 D34

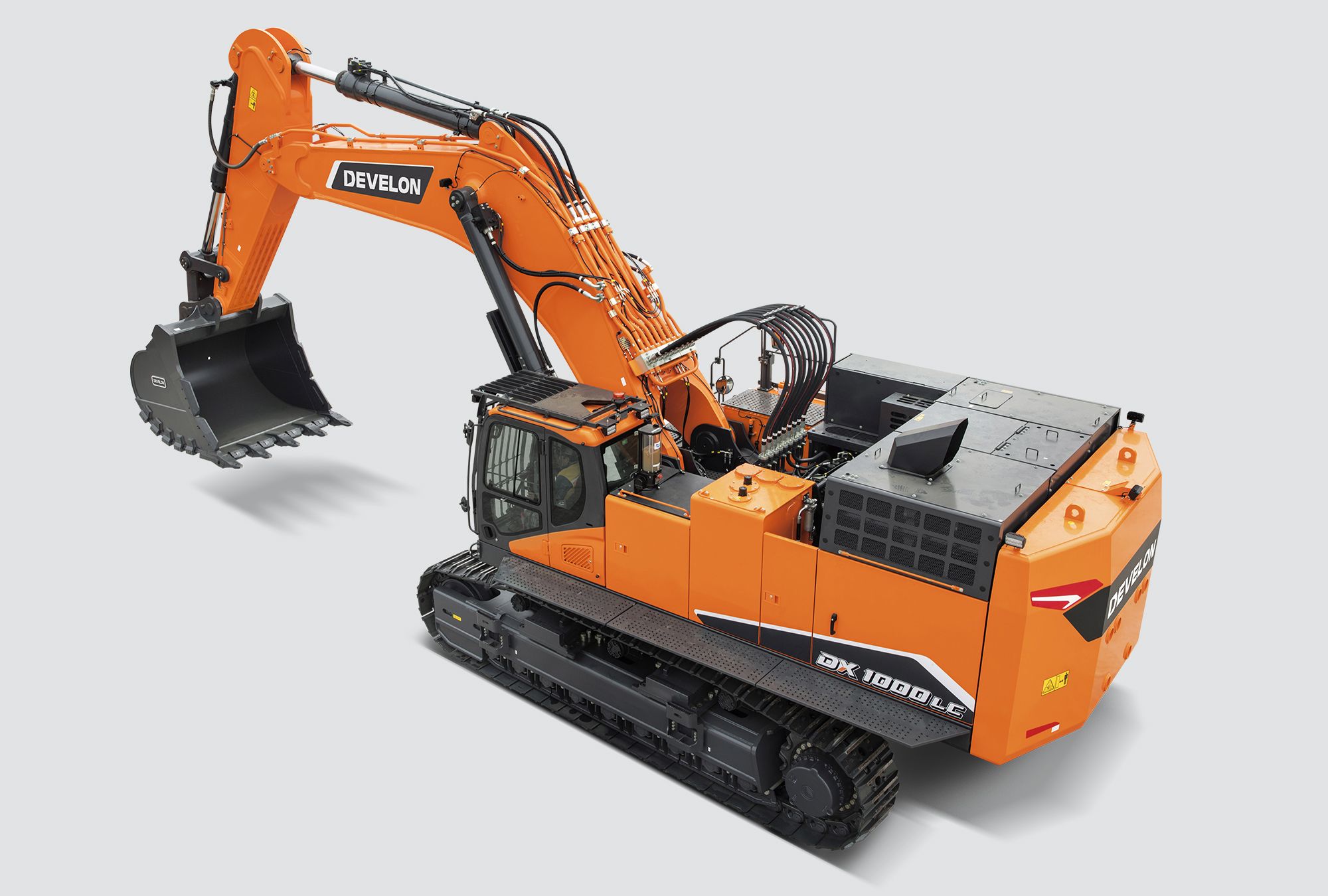

DX1000LC-7
Maximum power
469 kW
Operating weight
97.000 ~ 99.500 kg
Buckets
5.4 ~ 6.8 m³
Emission standard
Stage V
Engine
Perkins 2806

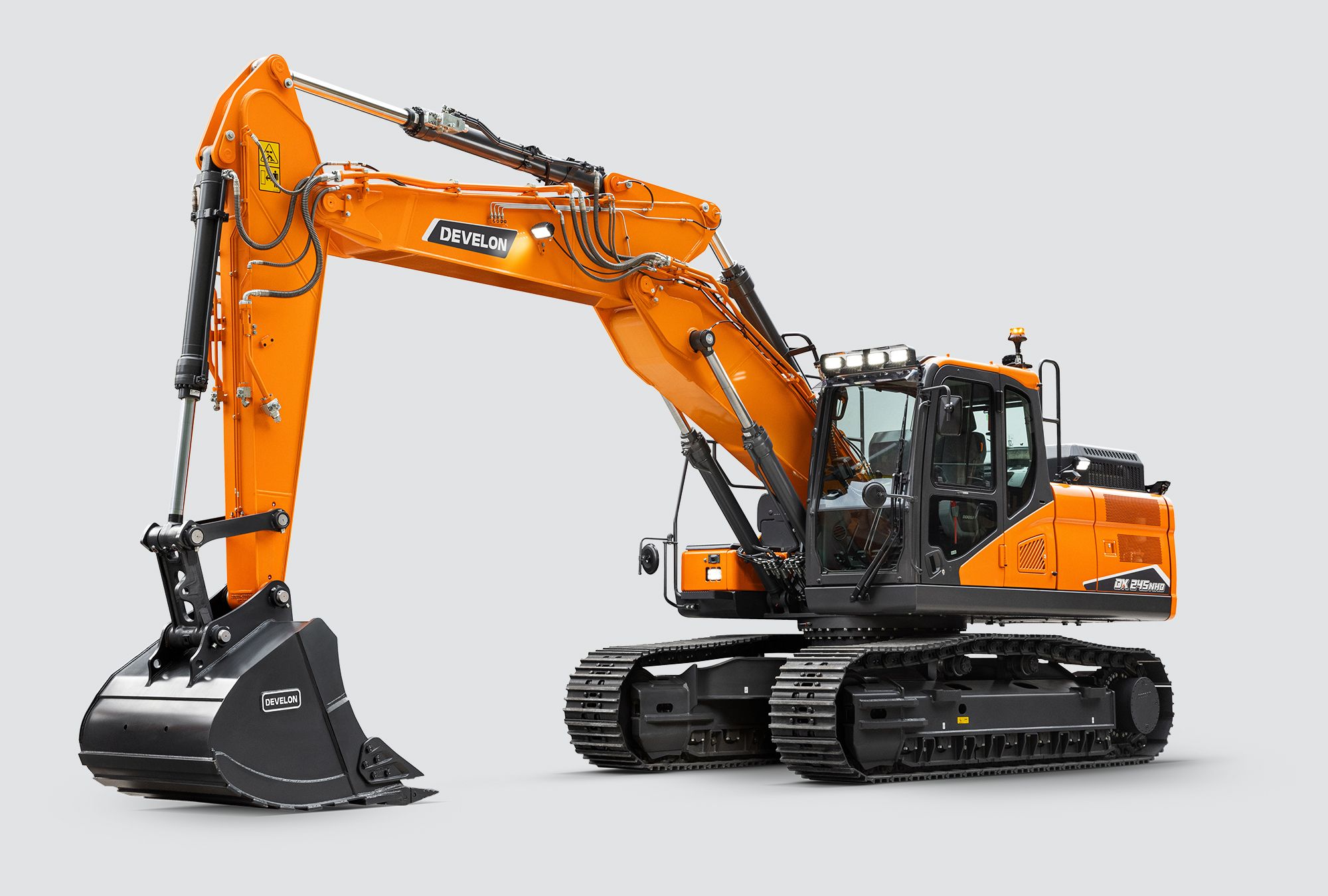

DX245NHD-7
Maximum power
173 hp
Operating weight
25.100 kg
Buckets
1.3 m3
Emission standard
Stage V
Engine
Develon DL06V

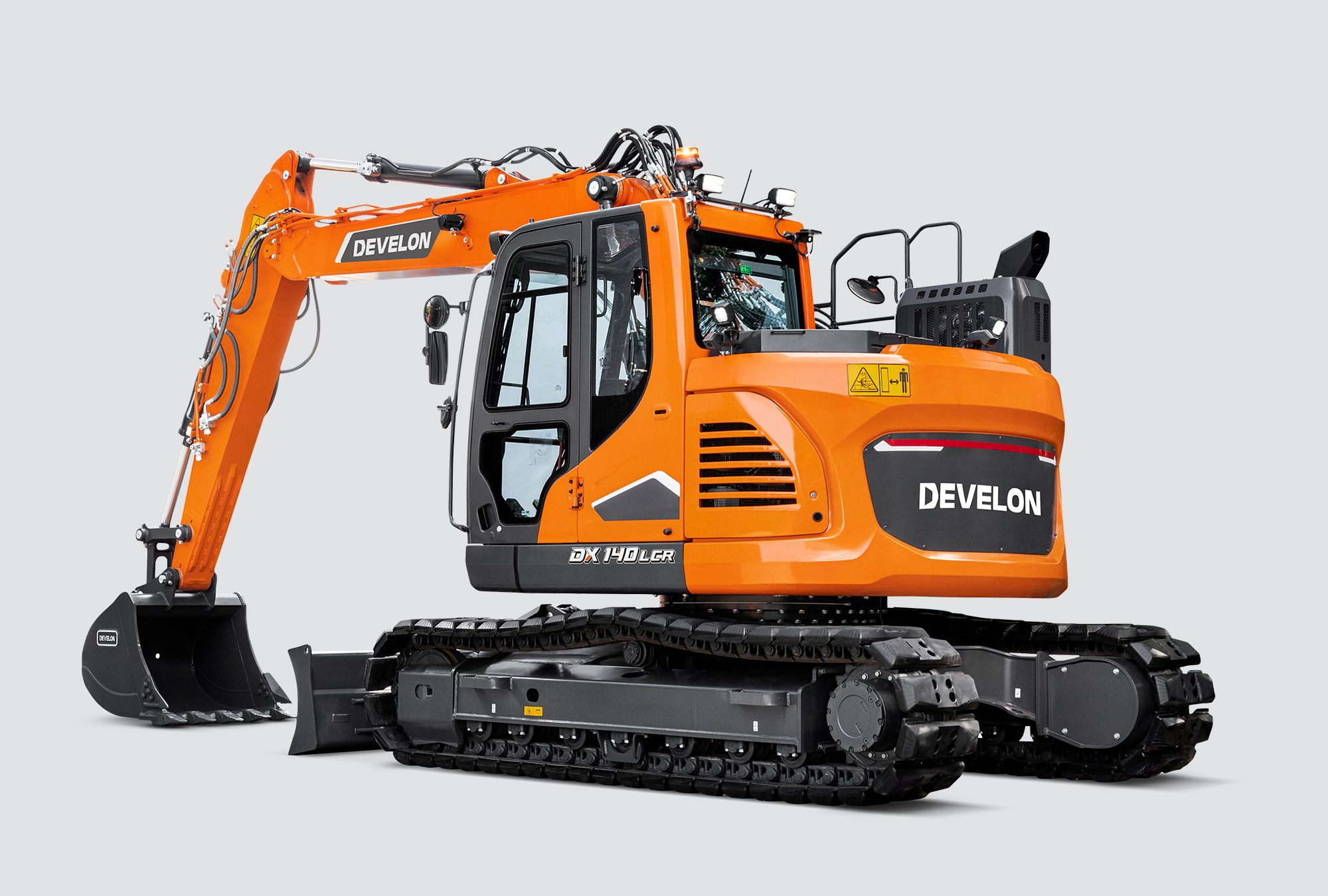

DX140LCR-7
Maximum power
115 HP
Operating weight
15.600 kg
Buckets
0.51 m³
Emission standard
Stage V
Engine
Develon G2 D34

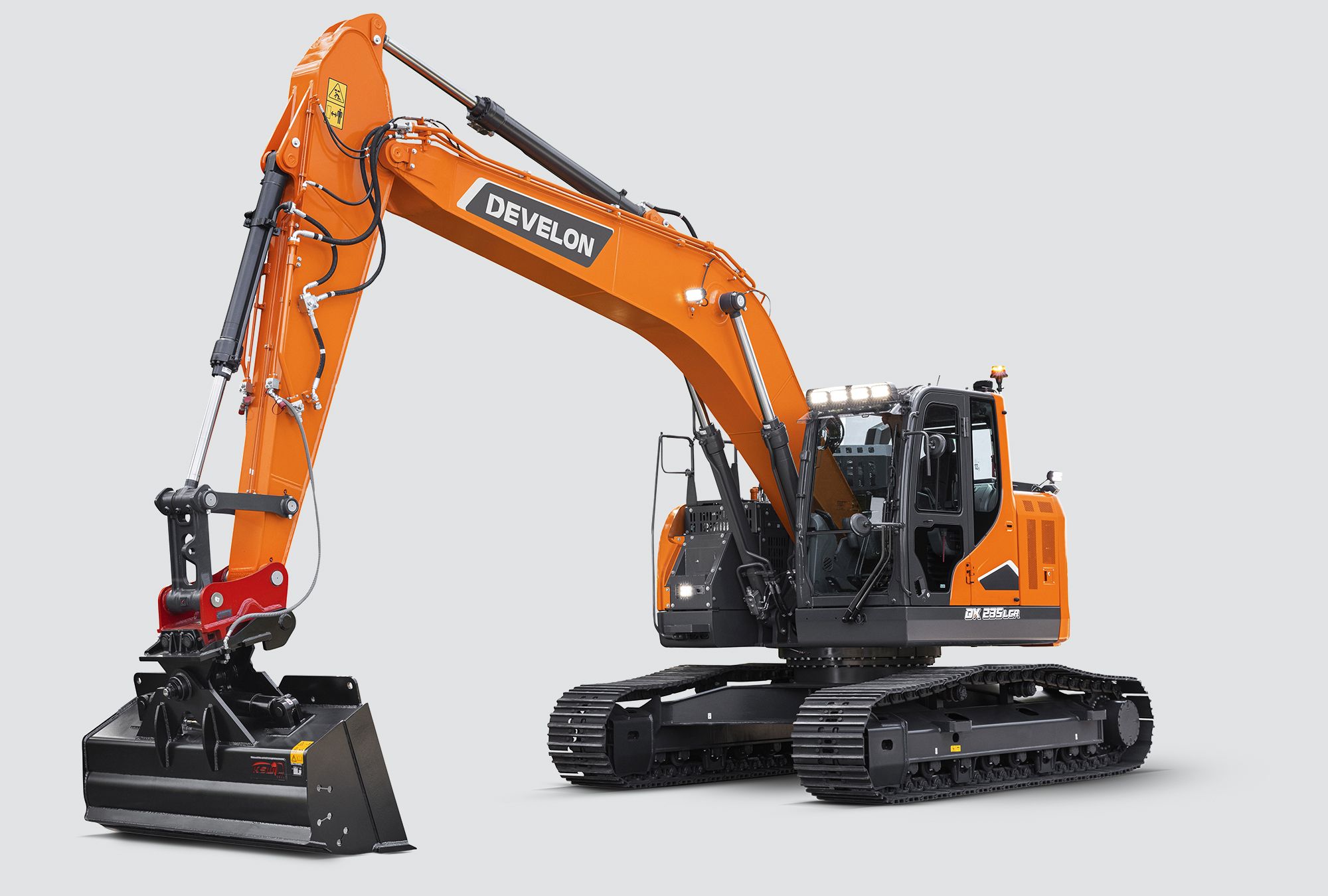

DX235LCR-7
Maximum power
189 HP
Operating weight
24.300 kg
Buckets
0.92 m³
Emission standard
Stage V
Engine
Develon DL06V

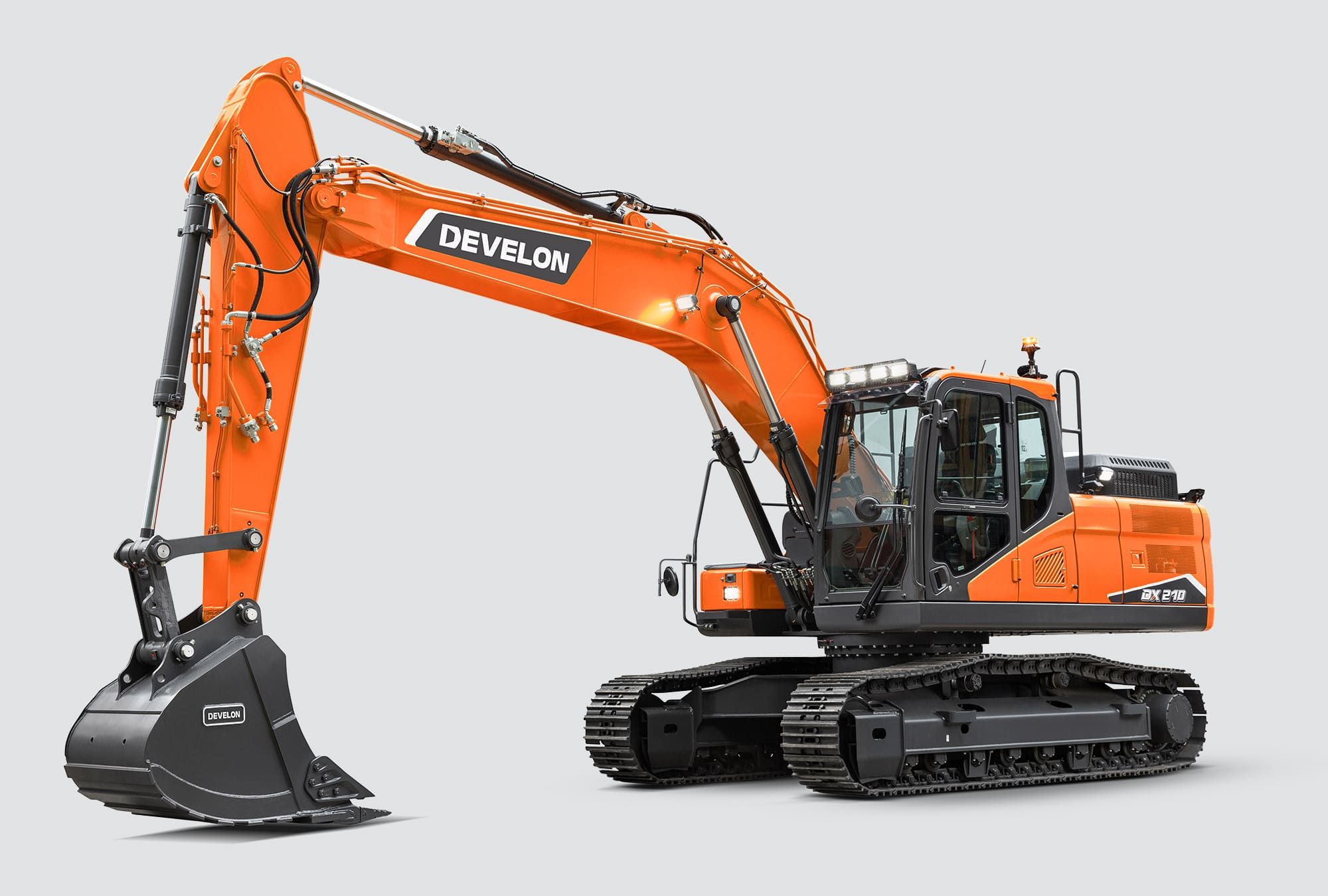

DX210-7
Maximum power
166 hp
Operating weight
21.900 kg
Bucket capacity
0.92 m3
Emission standard
Stage V
Engine
Develon DL06V

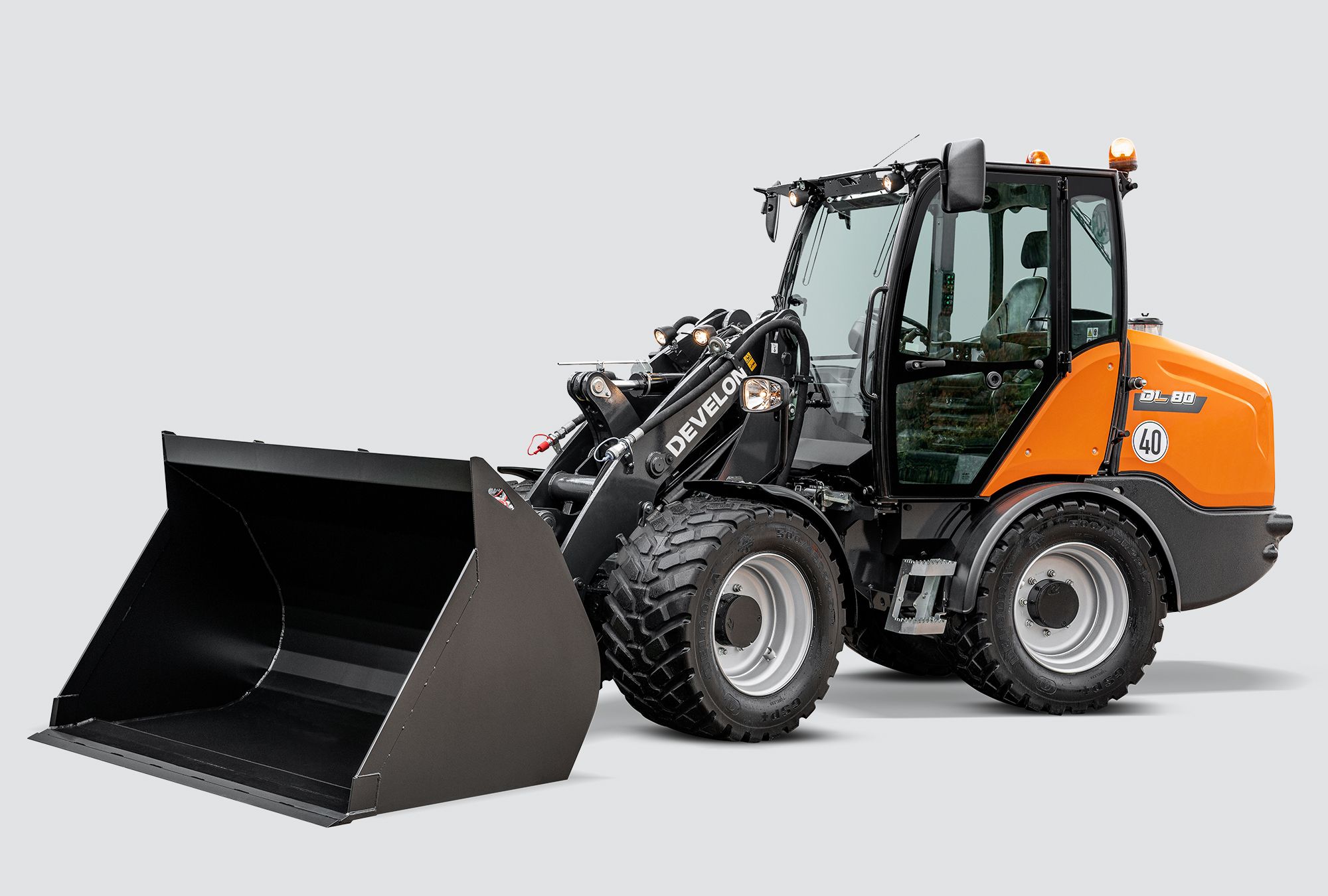

DL80-7
Maximum torque
265 N·m @ 1500 rpm
Operating weight
5.200 kg
Emission standard
Stage V
Engine
Kubota V3307
Engine power
55 kW / 75 hp

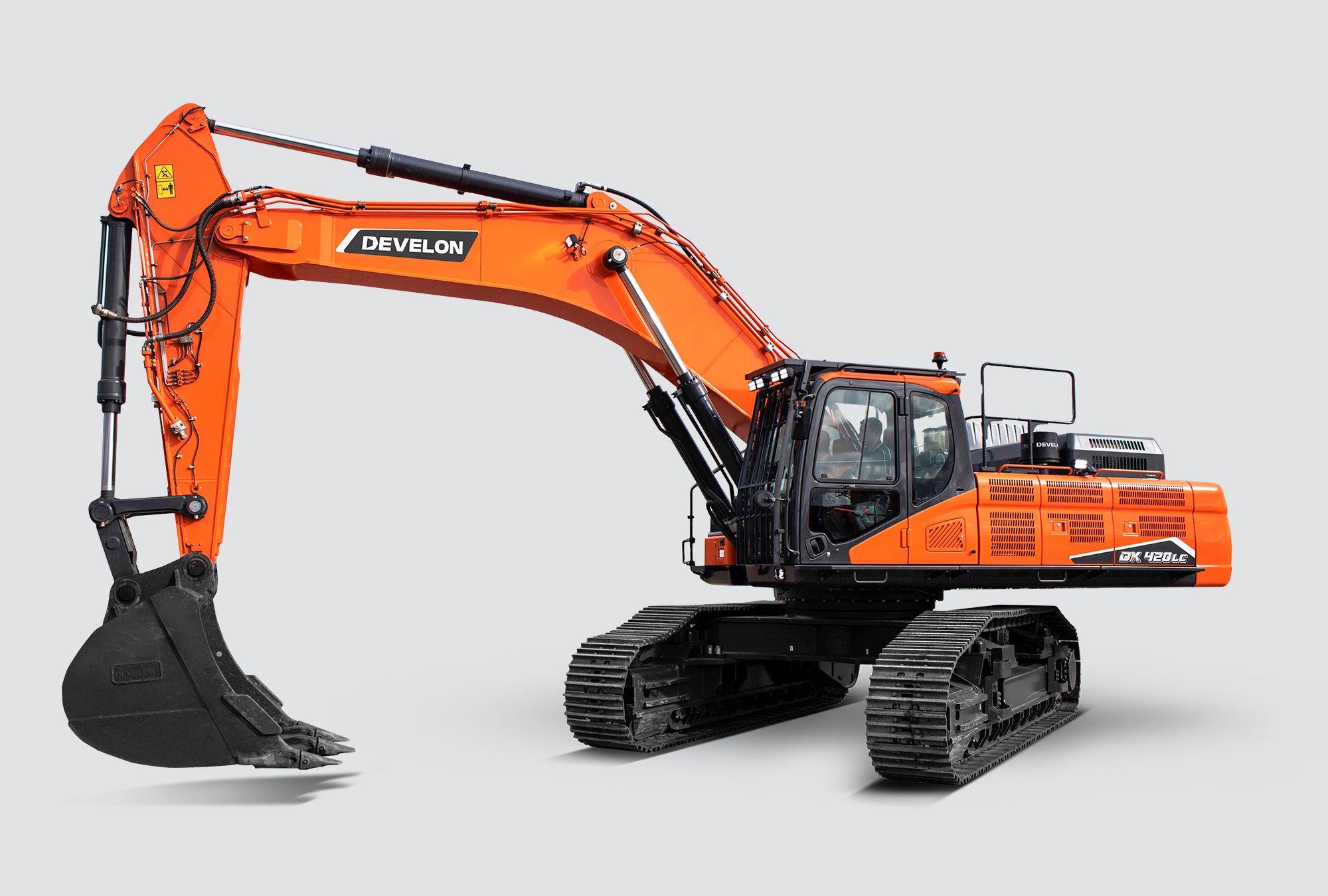

DX420LC-7K
Operating weight
43.500 kg
Buckets
1,5 – 2,1 m³
Engine
Scania DC13
Maximum power
344 HP
Emission standard
Stage V

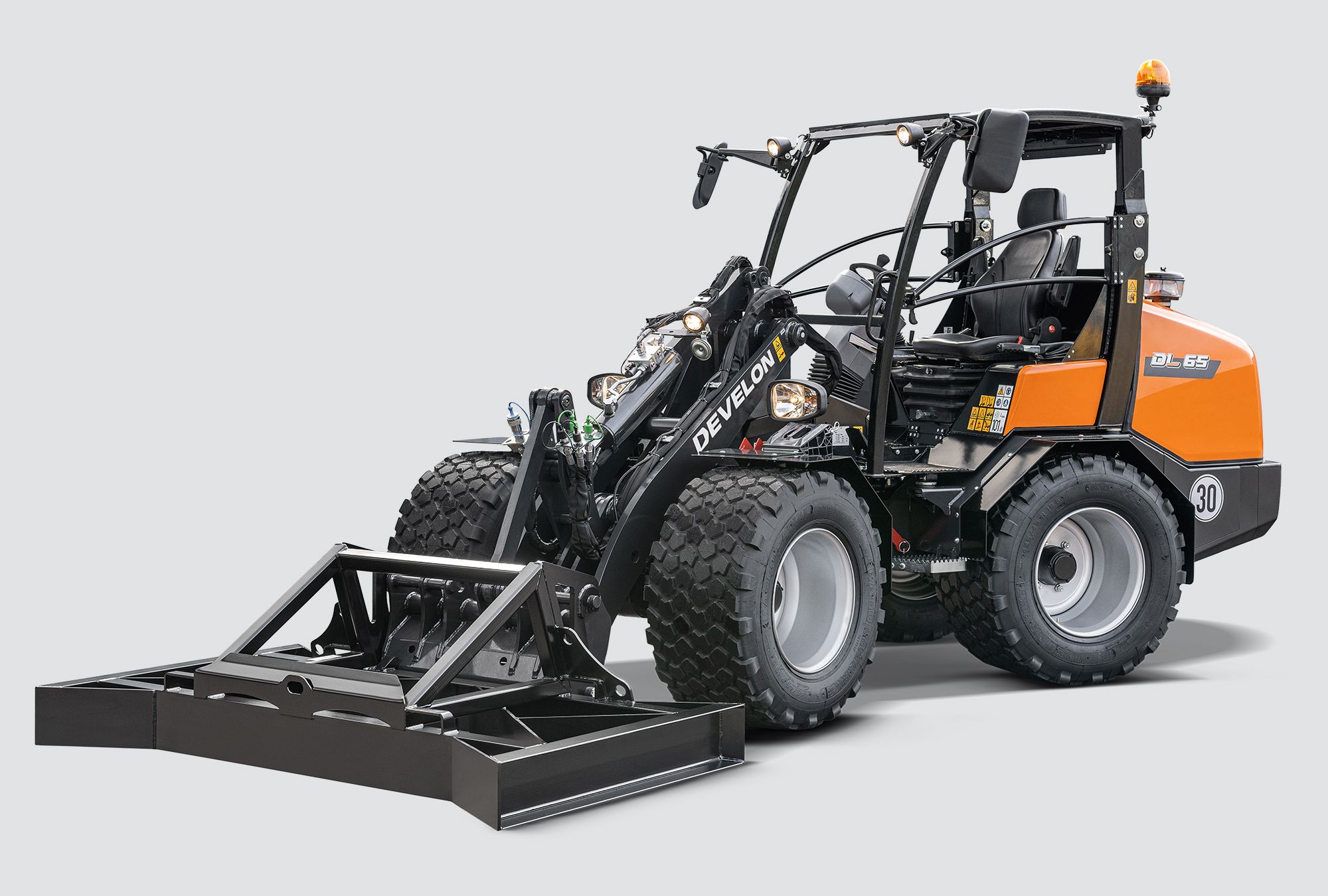

DL65-7
Maximum torque
198 N·m @ 1600 rpm
Operating weight
3.650 kg
Emission standard
Stage V
Engine
Kubota V2403-CR-TE5B
Engine power
48.5 kW / 66 hp

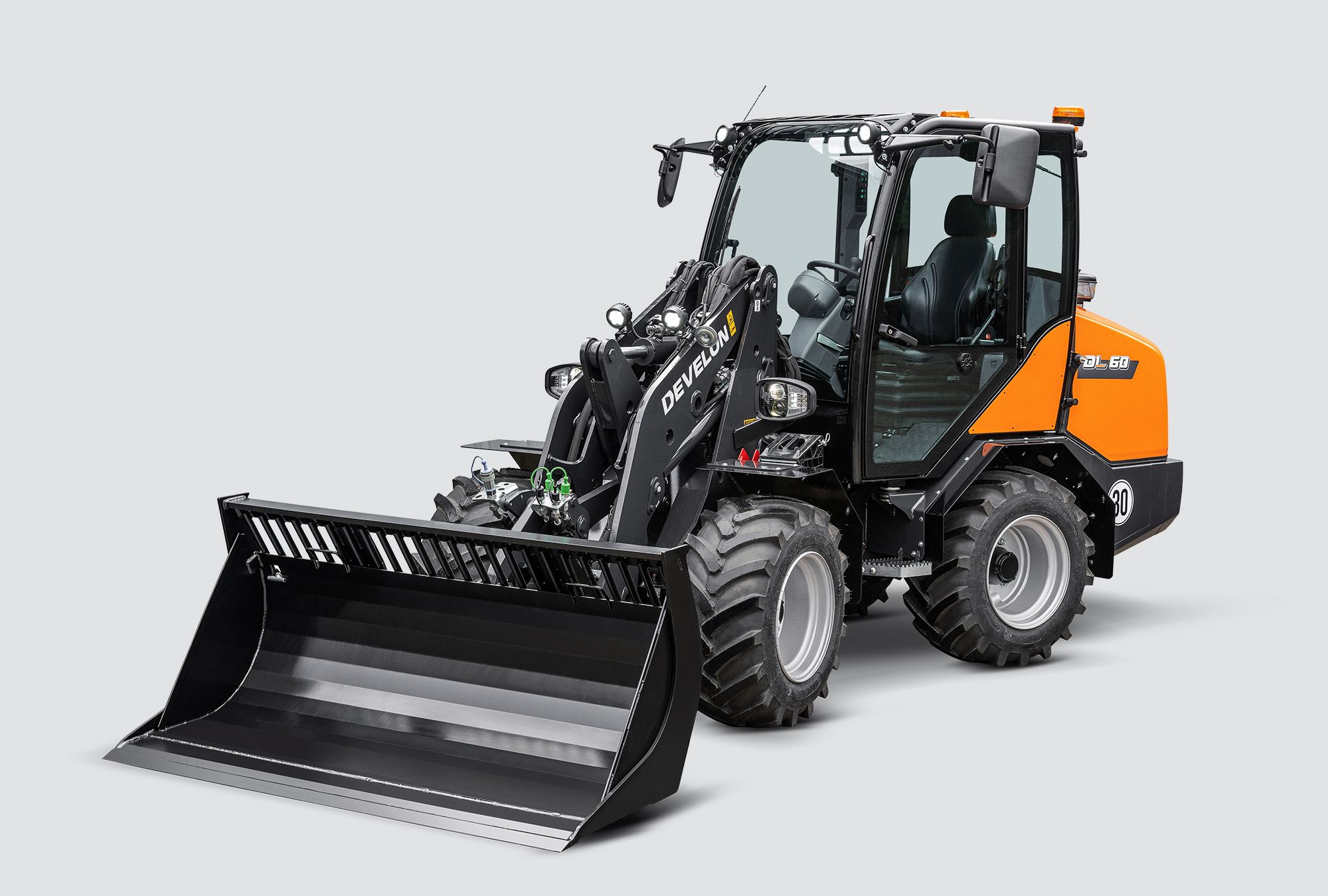

DL60-7
Maximum torque
198 N·m @ 1600 rpm
Operating weight
3.750 kg
Emission standard
Stage V
Engine
Kubota V2403-CR-TE5B
Engine power
48.5 kW / 66 hp

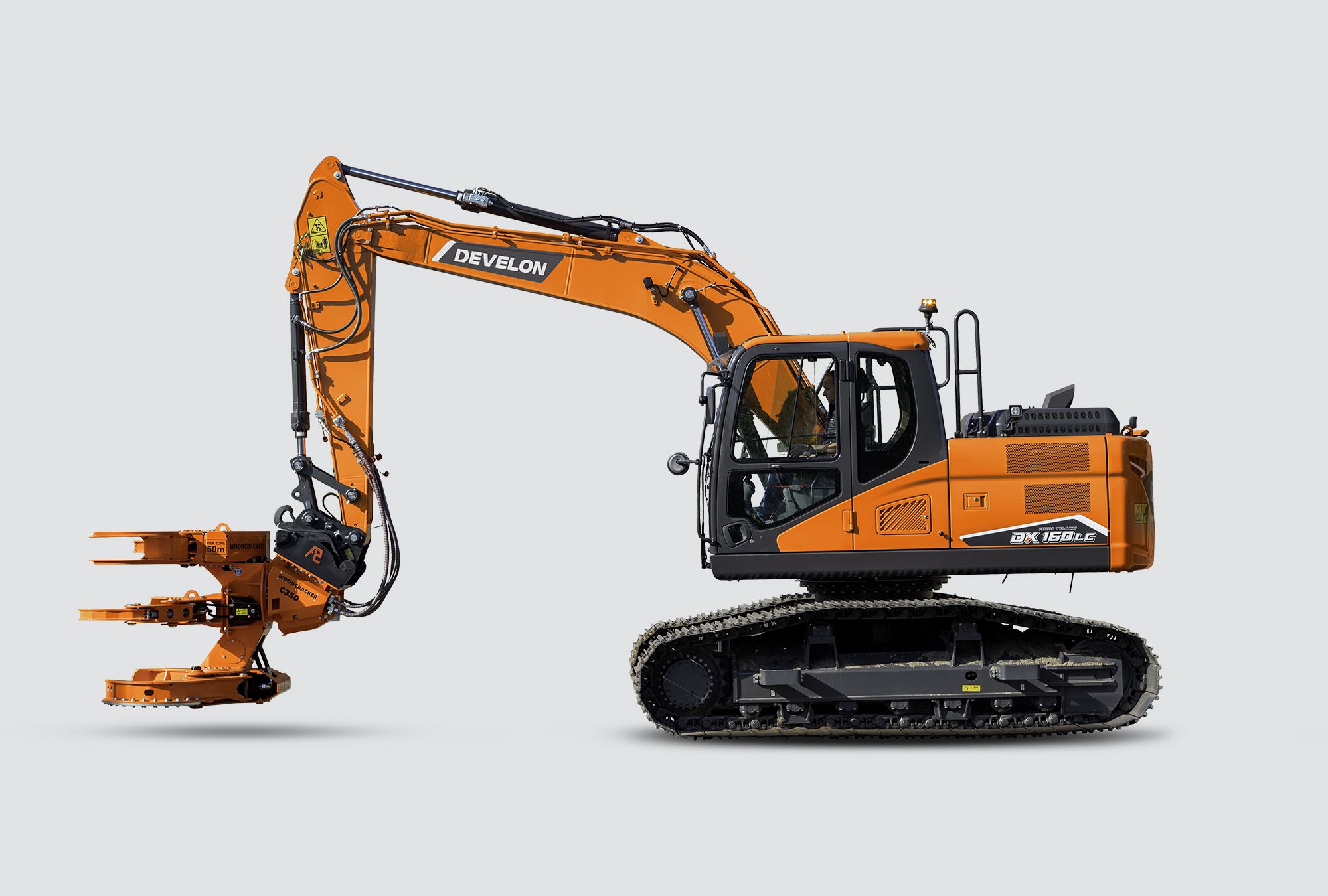

DX160LC-7HT
Maximum power
115 hp
Operating weight
16.8 t
Buckets
0.5 - 0.75 m³
Emission standard
Stage V
Engine
Develon D34 G2

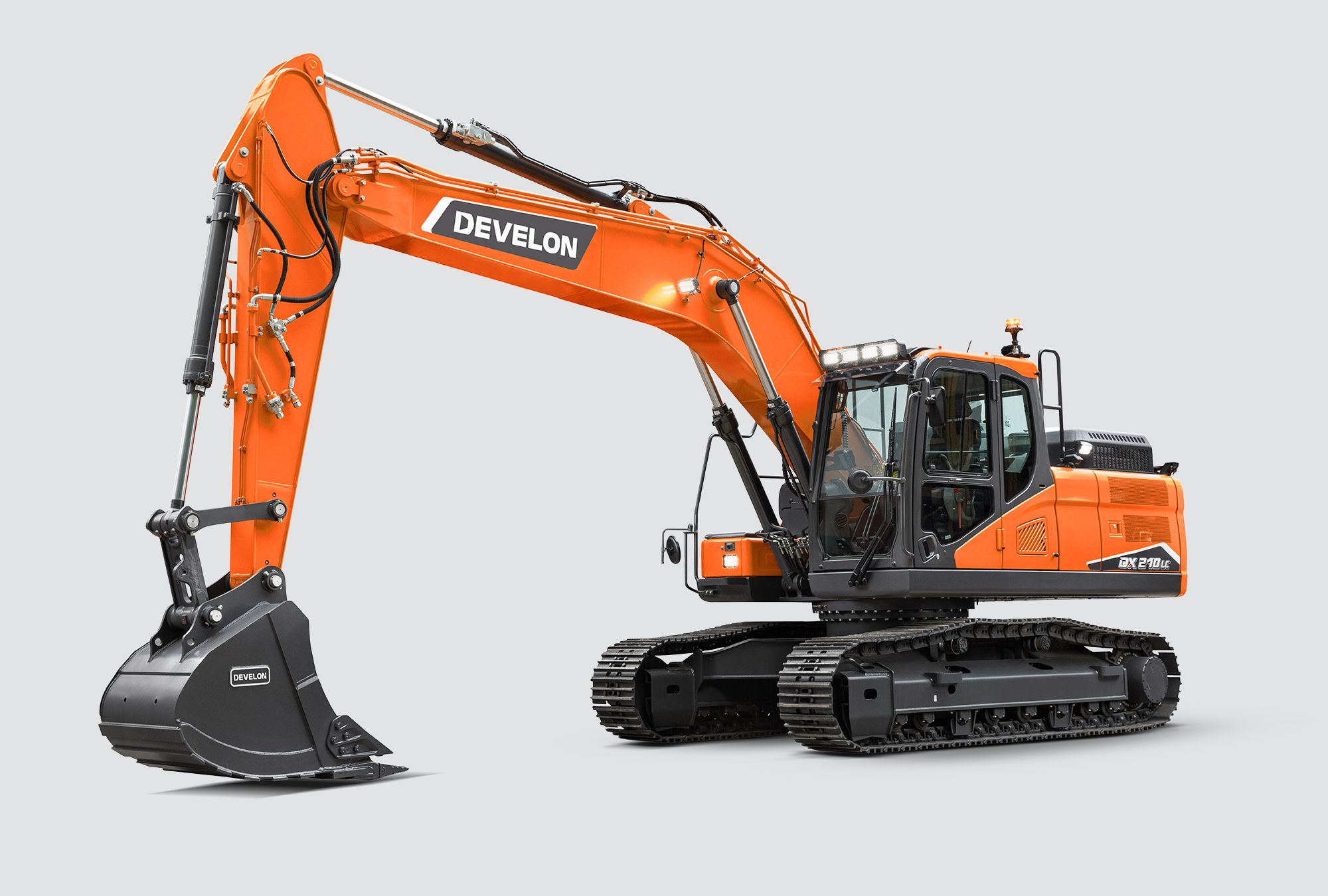

DX210LC-7
Maximum power
166 hp
Operating weight
22.300 kg
Bucket capacity
0.92 m3
Emission standard
Stage V
Engine
Develon DL06V

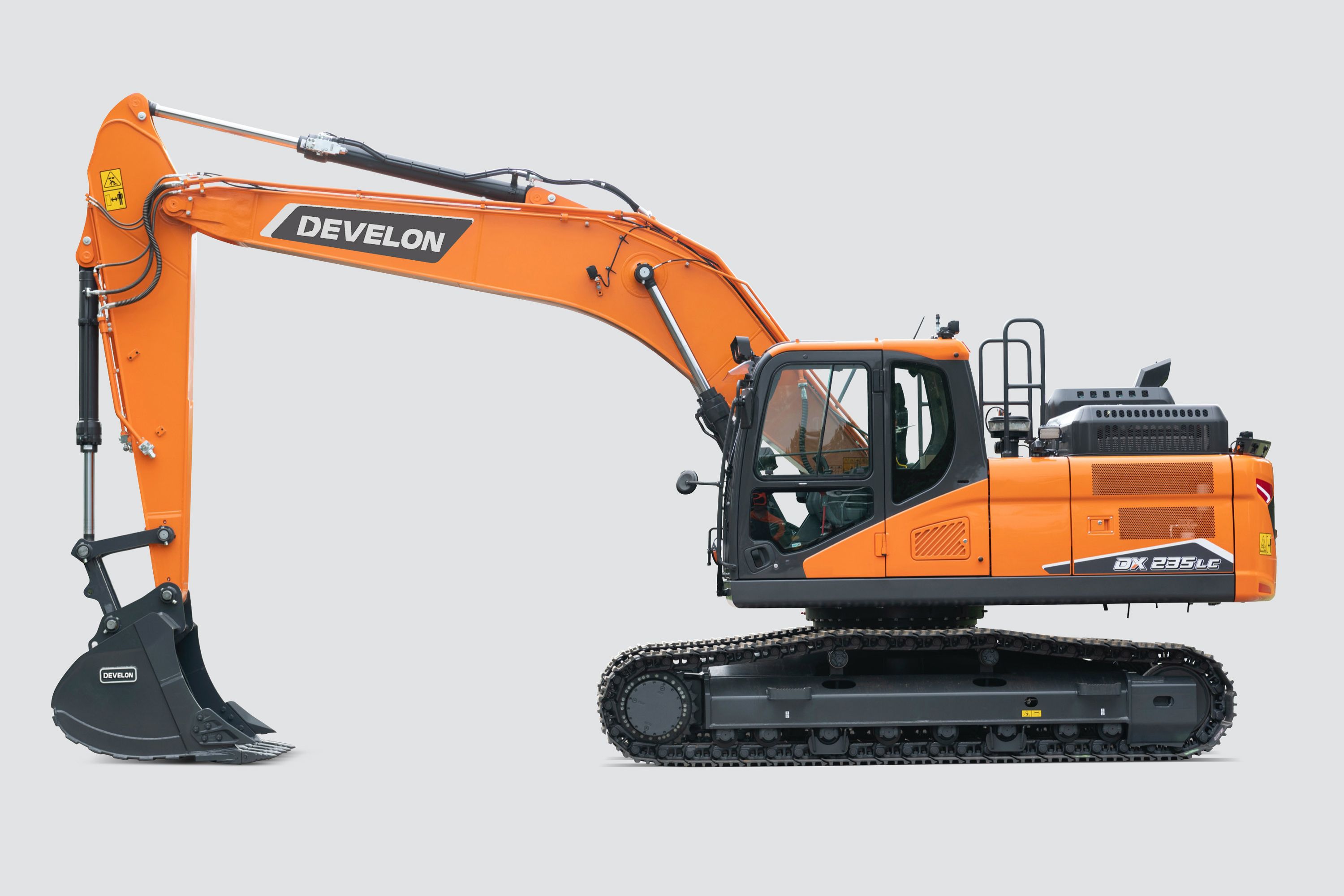

DX235LC-7
Maximum power
173 hp
Operating weight
23.300 kg
Buckets
1.3 m3
Emission standard
Stage V
Engine
Develon DL06V

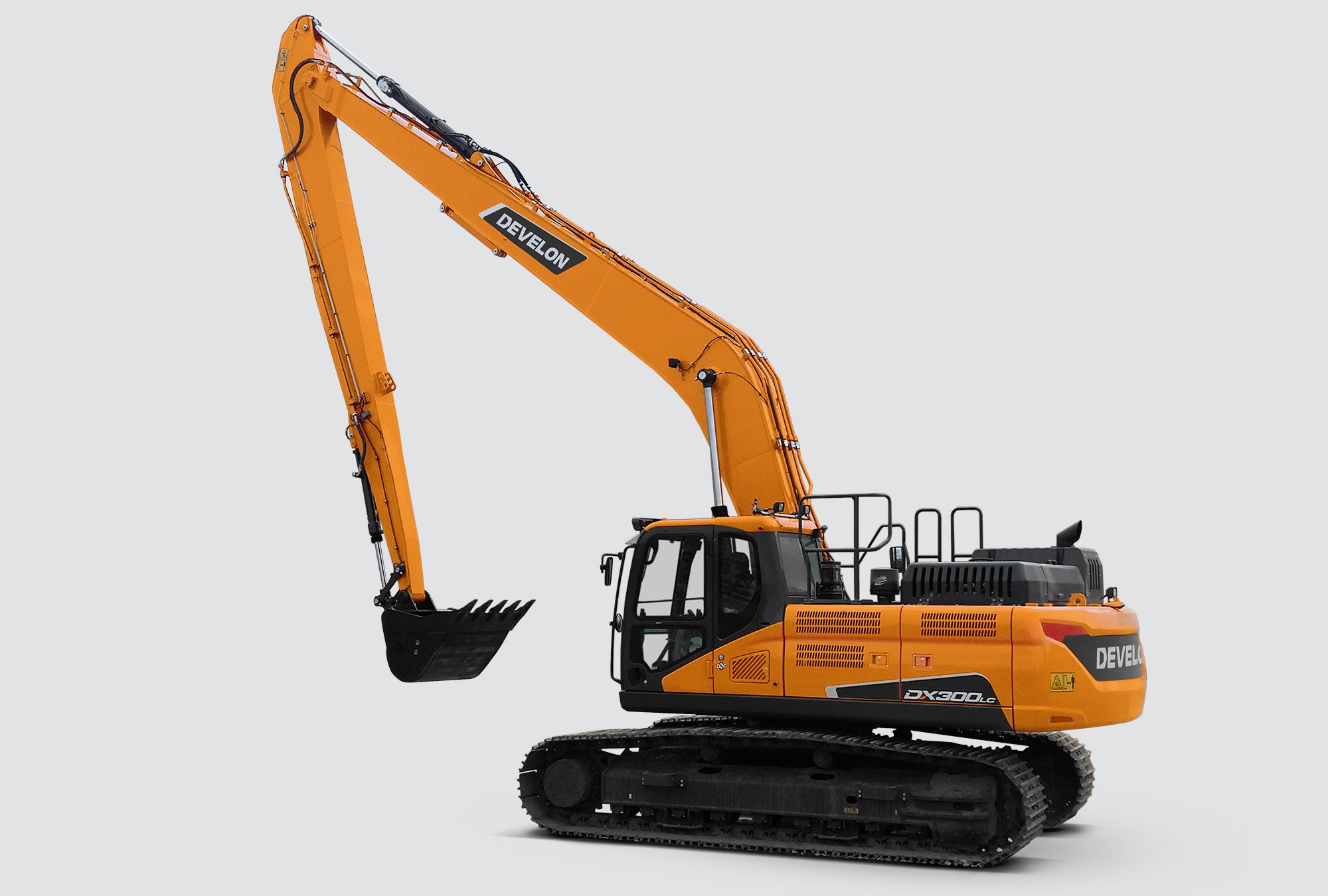

DX300LC-7 SLR
Maximum power
271 HP
Operating weight
33.000 kg
Max. digging reach
17.5 m
Engine power
202 kW (271 HP) @ 1800 rpm (SAE J1995)
Engine
DL08V

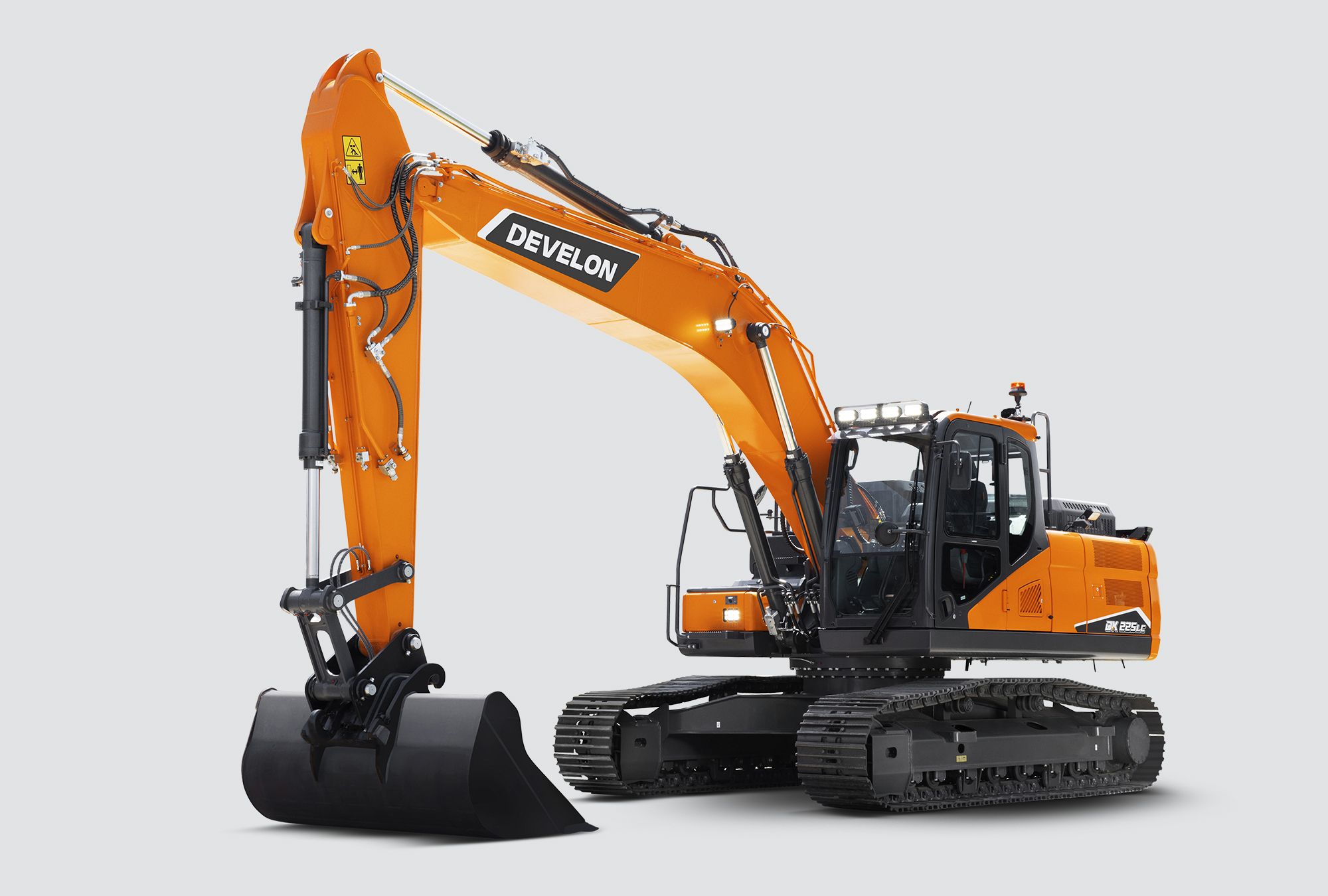

DX225LC-7
Maximum power
174 hp
Operating weight
23.300 kg
Buckets
1.28 m3
Emission standard
Stage V
Engine
Develon DL06V

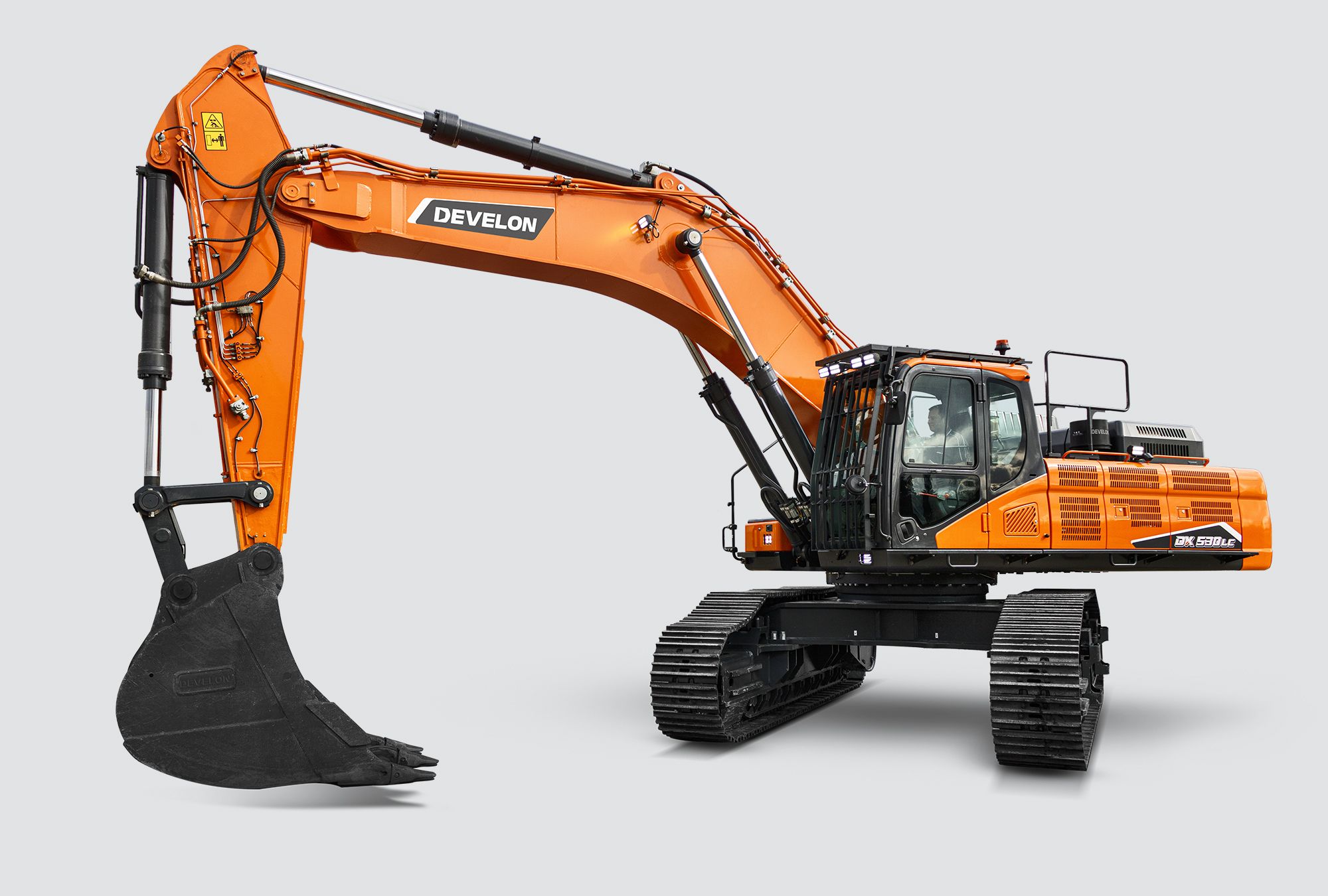

DX530LC-7 SLR
Maximum power
294 kW
Operating weight
52.200 kg
Max. digging reach
19.6 m
Engine power
294 kW (394 HP) @ 1800 rpm (SAE J1995)
Engine
Scania DC13

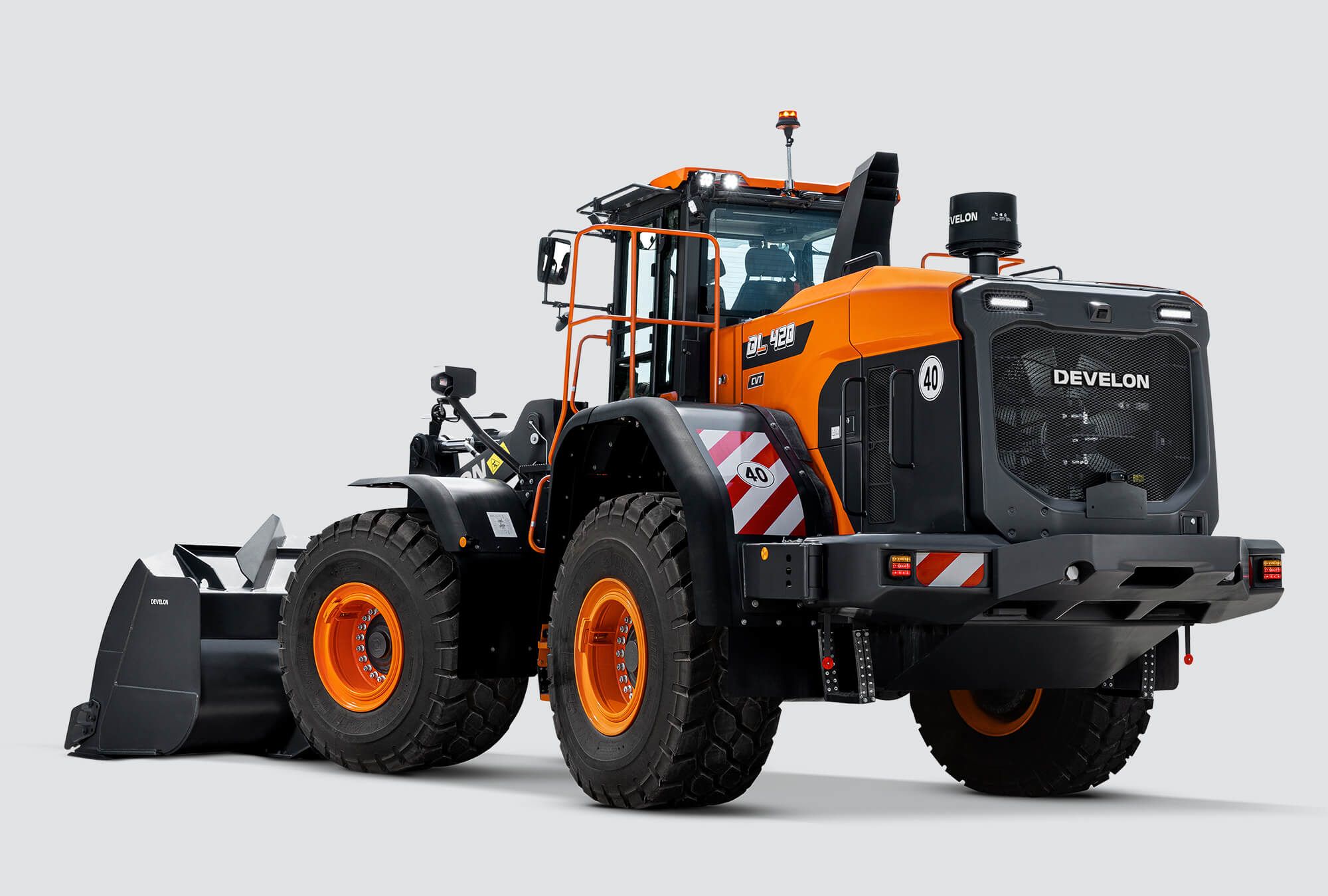

DL420CVT-7
Bucket capacity
4.5 m³
Tipping load
18.696 kg
Static tipping load, at 40°
16.493 kg
Length with bucket
8.926 mm
Width with bucket
3.200 mm

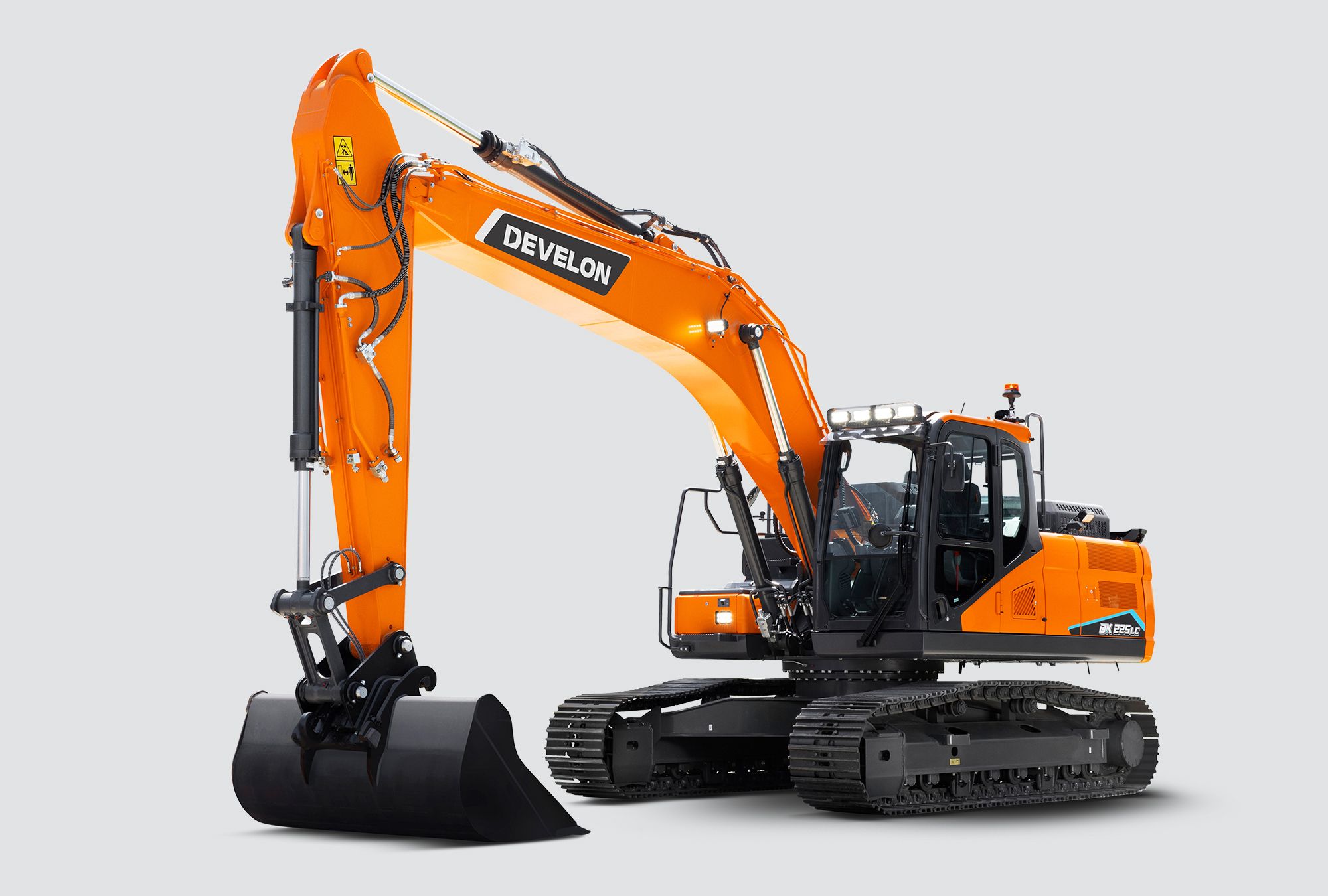

DX225LC-7X
Maximum power
174 hp
Operating weight
23.3 t
Buckets
1.28 m3
Emission standard
Stage V
Engine
Develon DL06V

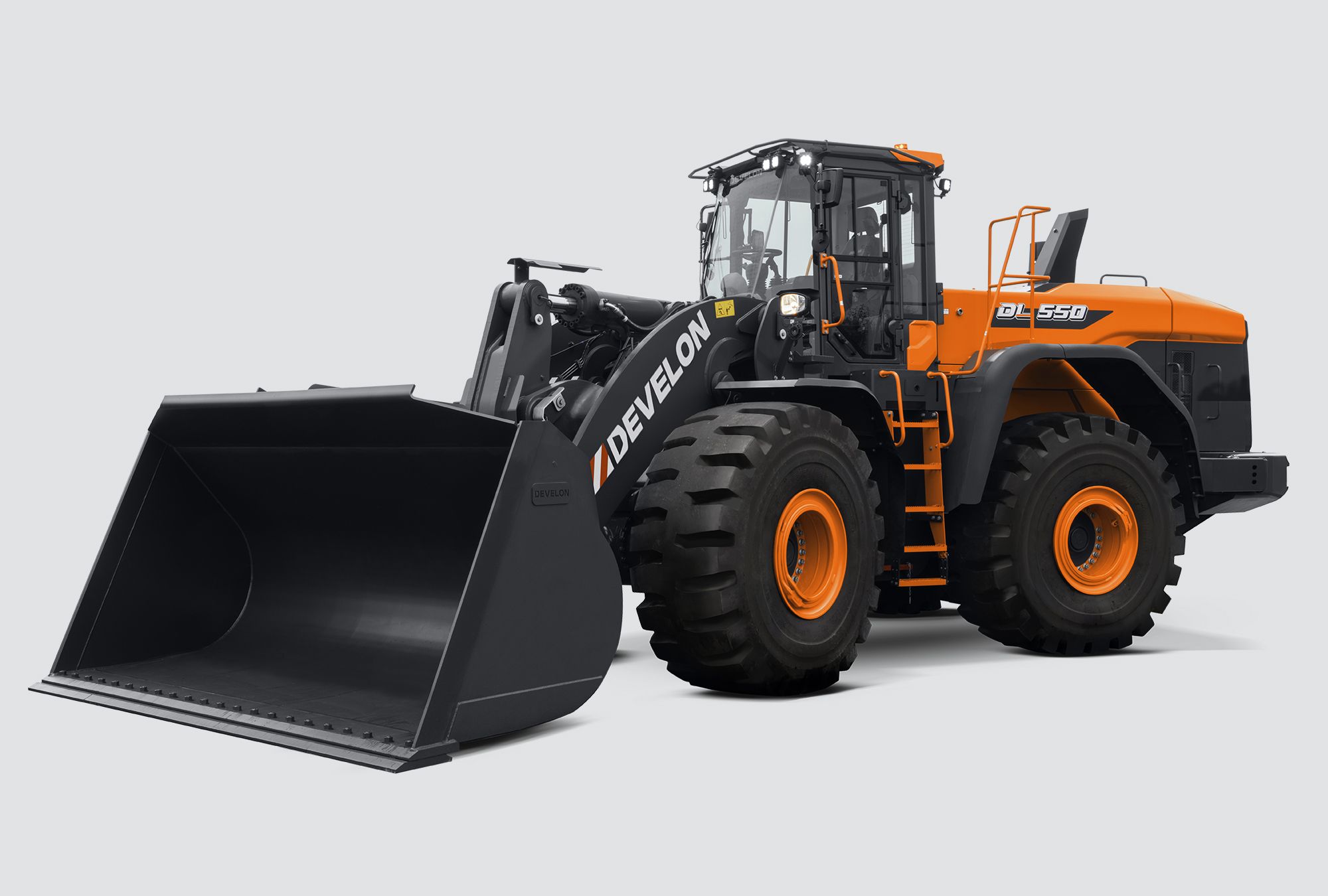

DL550-7
Bucket capacity
5.4 m³
Tipping load
24.830 kg
Static tipping load, at 40°
21.897 kg
Length with bucket
9.885 mm
Width with bucket
3.400 mm

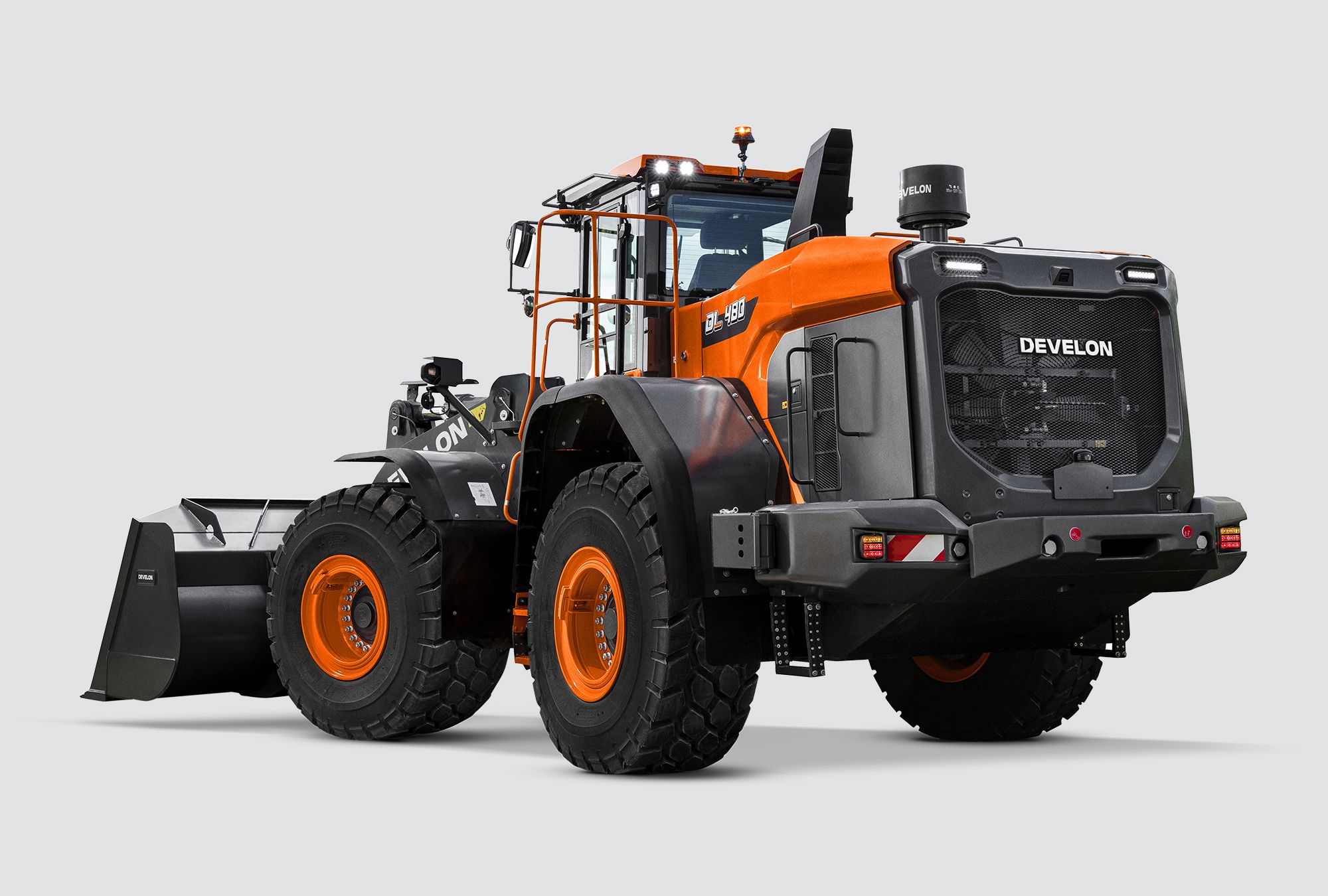

DL480-7
Bucket capacity
4.8 m³
Tipping load
20.769 kg
Static tipping load, at 40°
18.331 kg
Length with bucket
9.363 mm
Width with bucket
3.300 mm

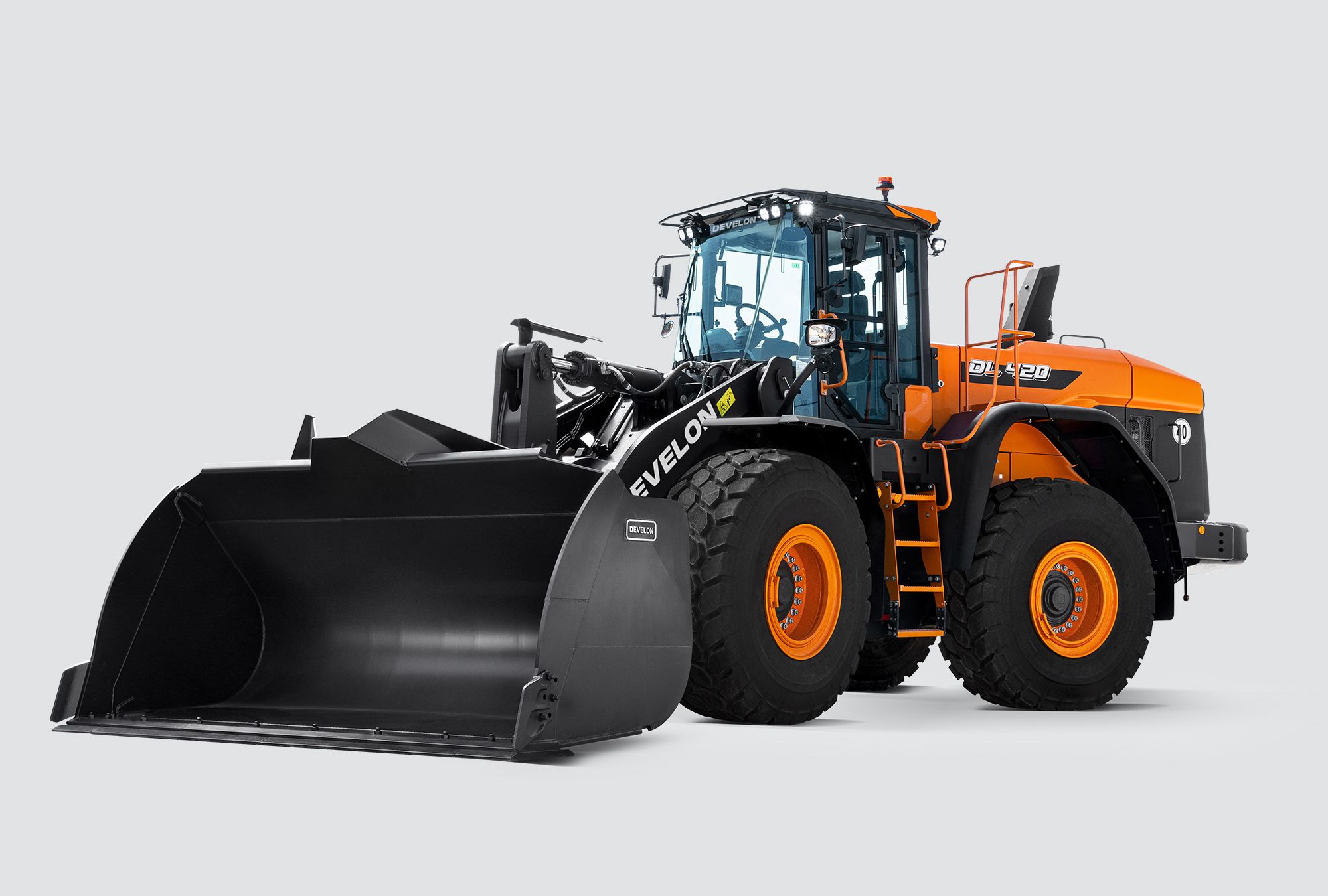

DL420-7
Bucket capacity
4.5 m³
Tipping load
18.696 kg
Static tipping load, at 40°
16.493 kg
Length with bucket
8.926 mm
Width with bucket
3.200 mm
DX170W-7
Maximum power
152 HP
Operating weight
17.700 kg
Buckets
0.66 m³
Emission standard
Stage V
Engine
Develon DL06V

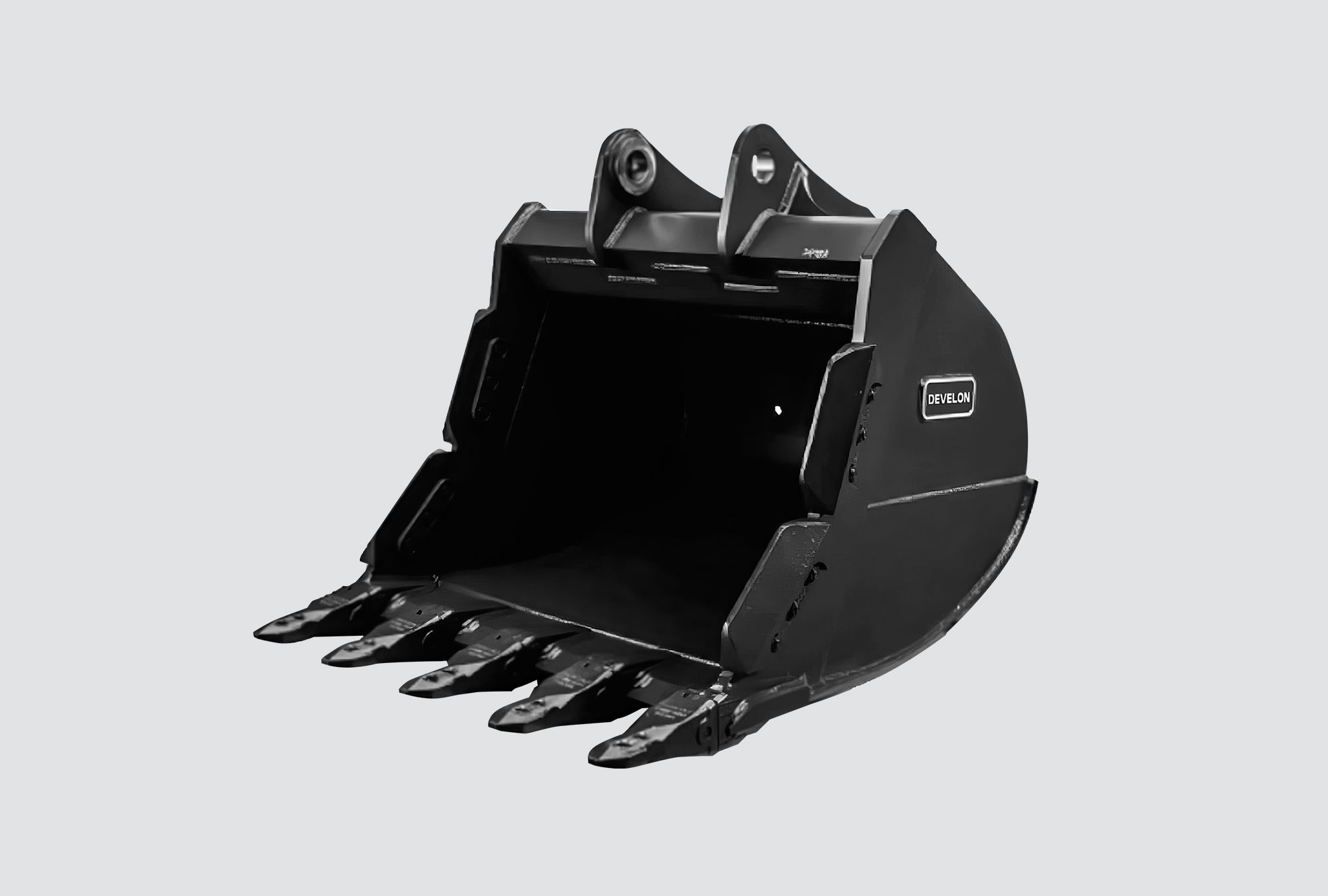

S-CLASS BUCKETS (SEVERE / ROCK DUTY)
Width
1394mm - 2350mm
Capacity
0.91m³ - 5.58m³
4 SD (Severe Duty) teeth - 6 SD teeth

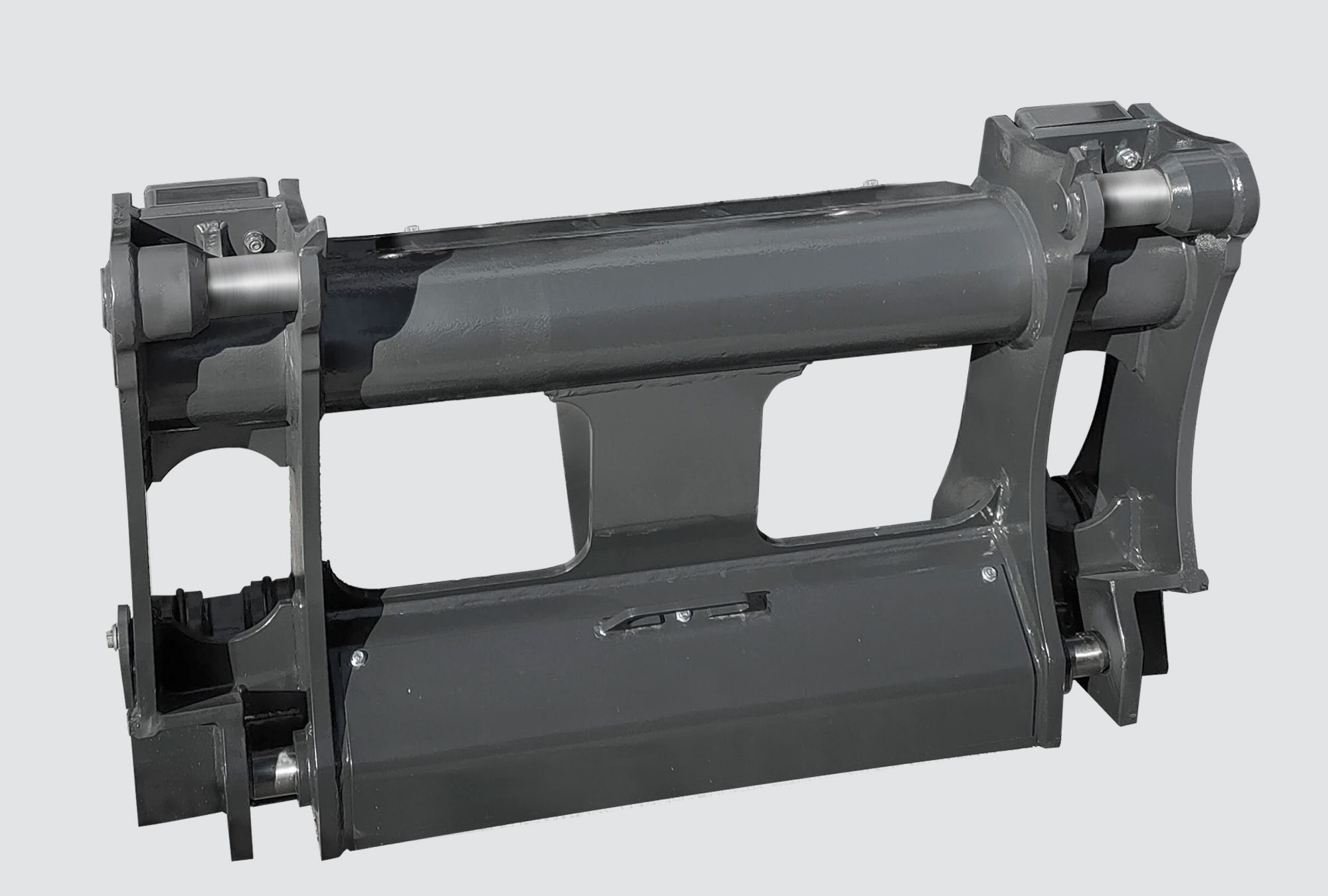

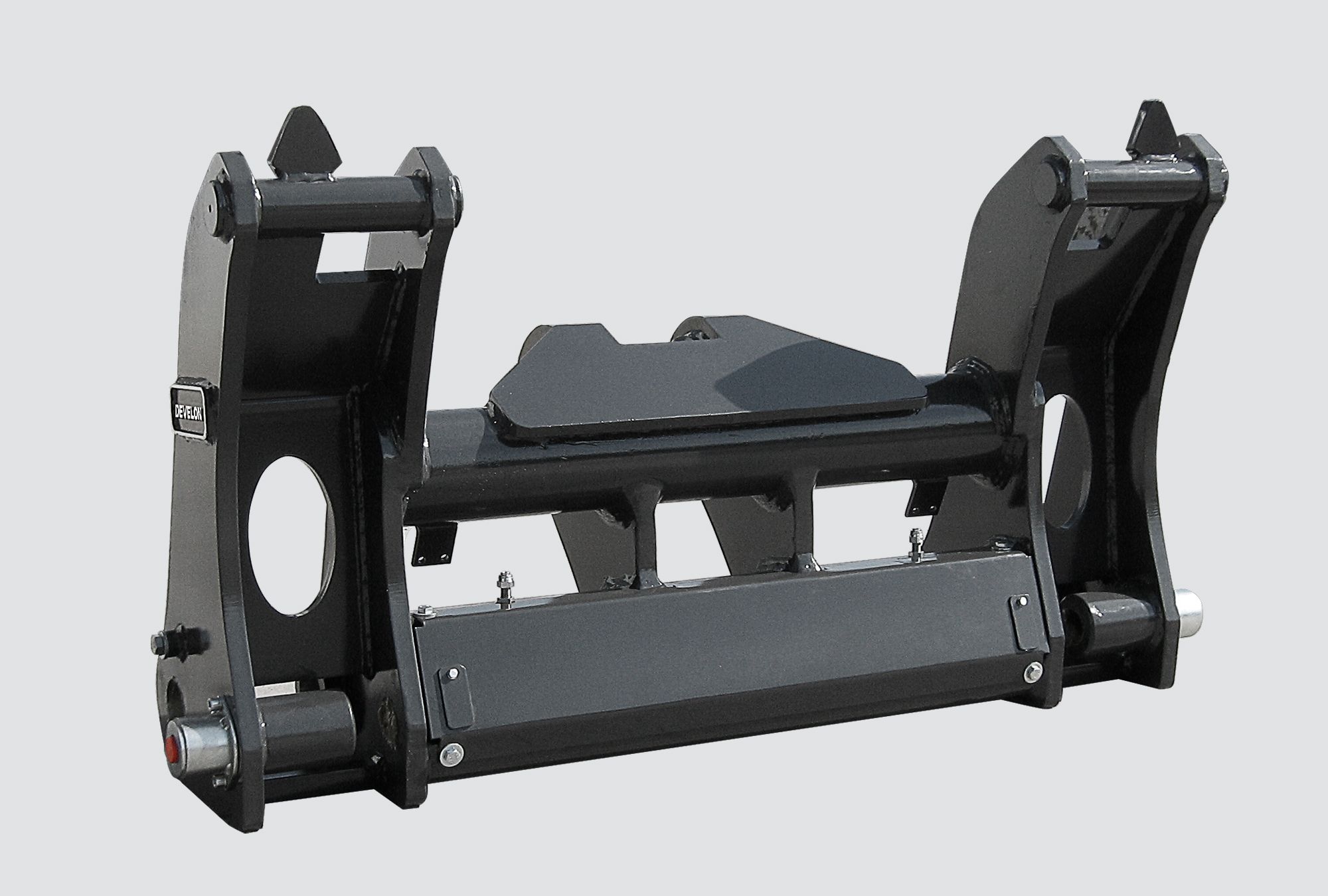

QUICK COUPLERS & CONTROL KITS
Type
Quick Couplers, Iso
Type
Quick Couplers, Large
Type
Quick Coupler Control Kits

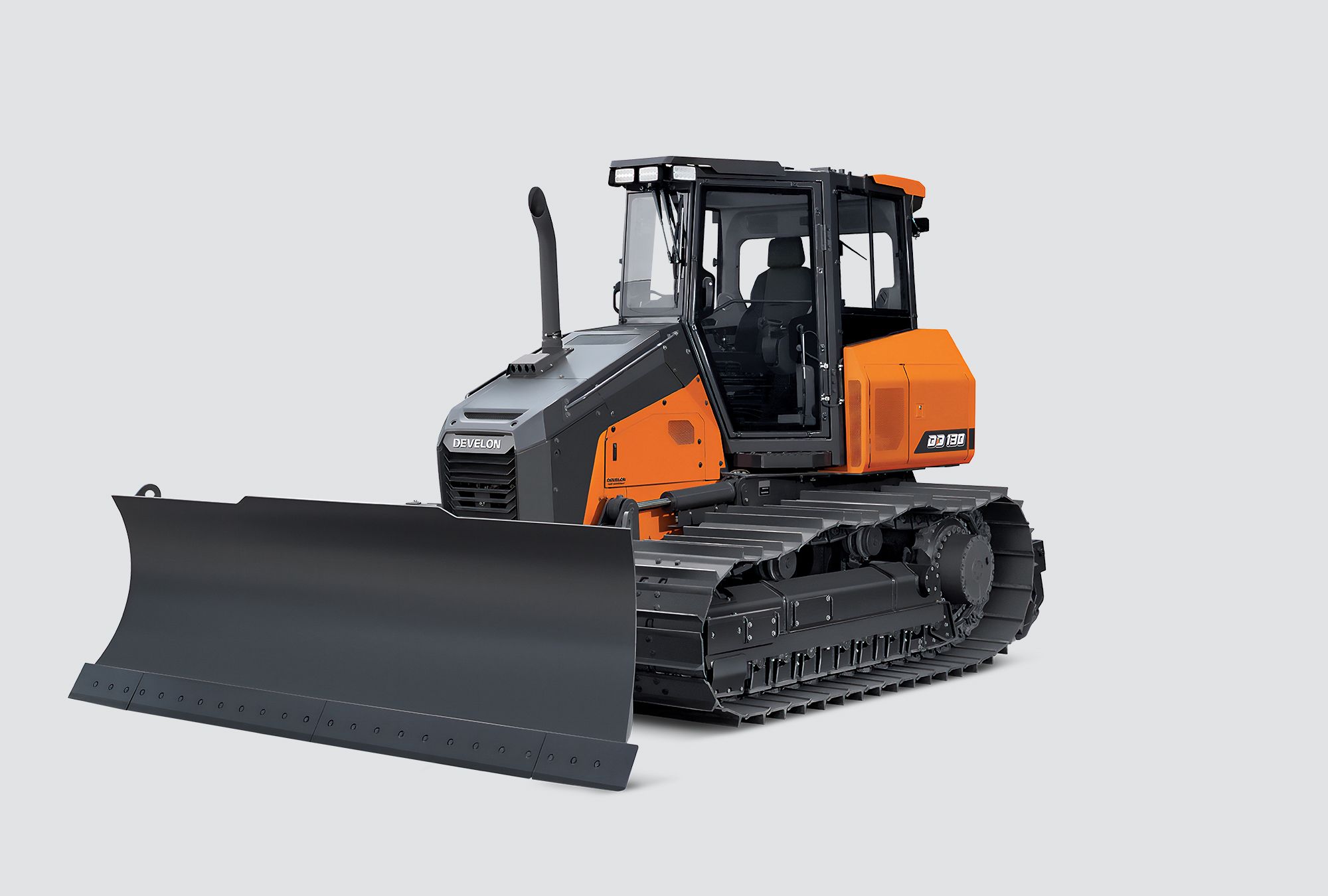

DD130
Engine
Perkins 1204J
Engine power
117 kW (157 HP) @ 2200 rpm (SAE J1349)
Emission standard
Stage V
Operating weight
14.5 t
Travel speed
9 km/h

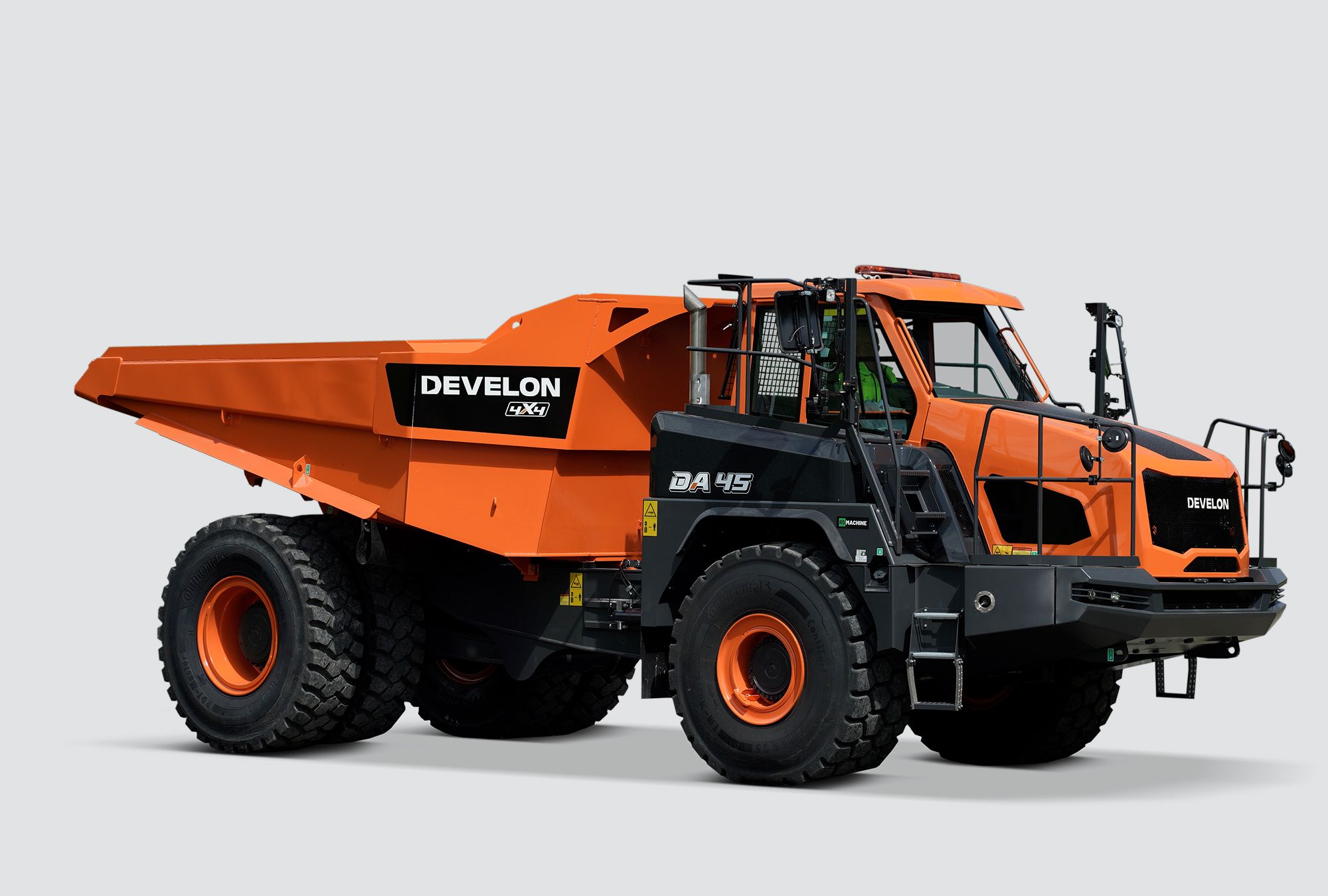

DA45-7 4X4
Engine
Scania DC 13
Transmission
ZF 8EP-420
Gross torque
2.476 Nm @ 1.300 rpm
Power to weight, empty
11.8 kW/t
Power to weight, loaded
5.0 kW/t

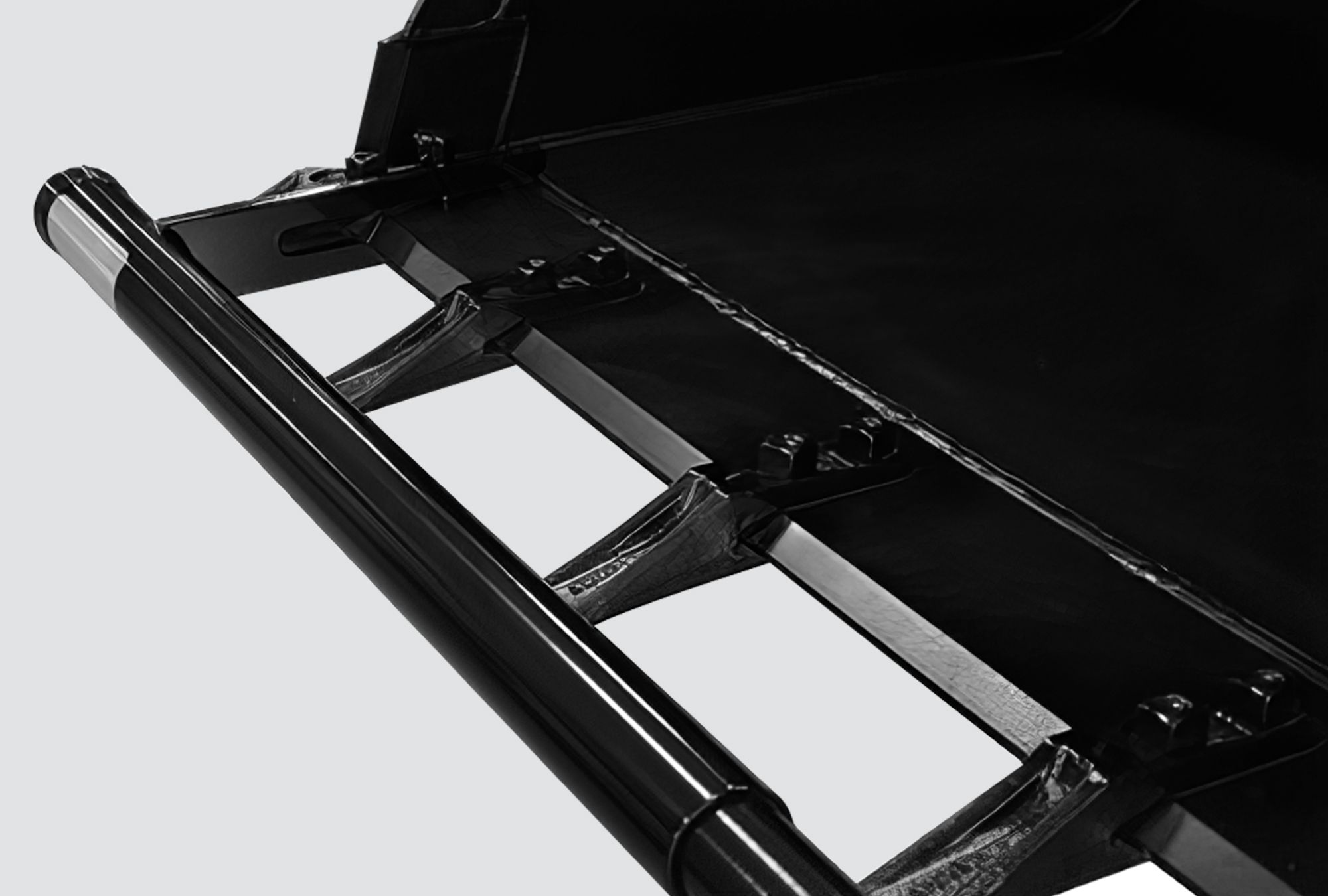

4-IN-1 BUCKET
Capacity
0.37m³ - 0.81m³
Width
1.50m - 2.00m
GET
without GET, with 6-7 bolt-on teeth

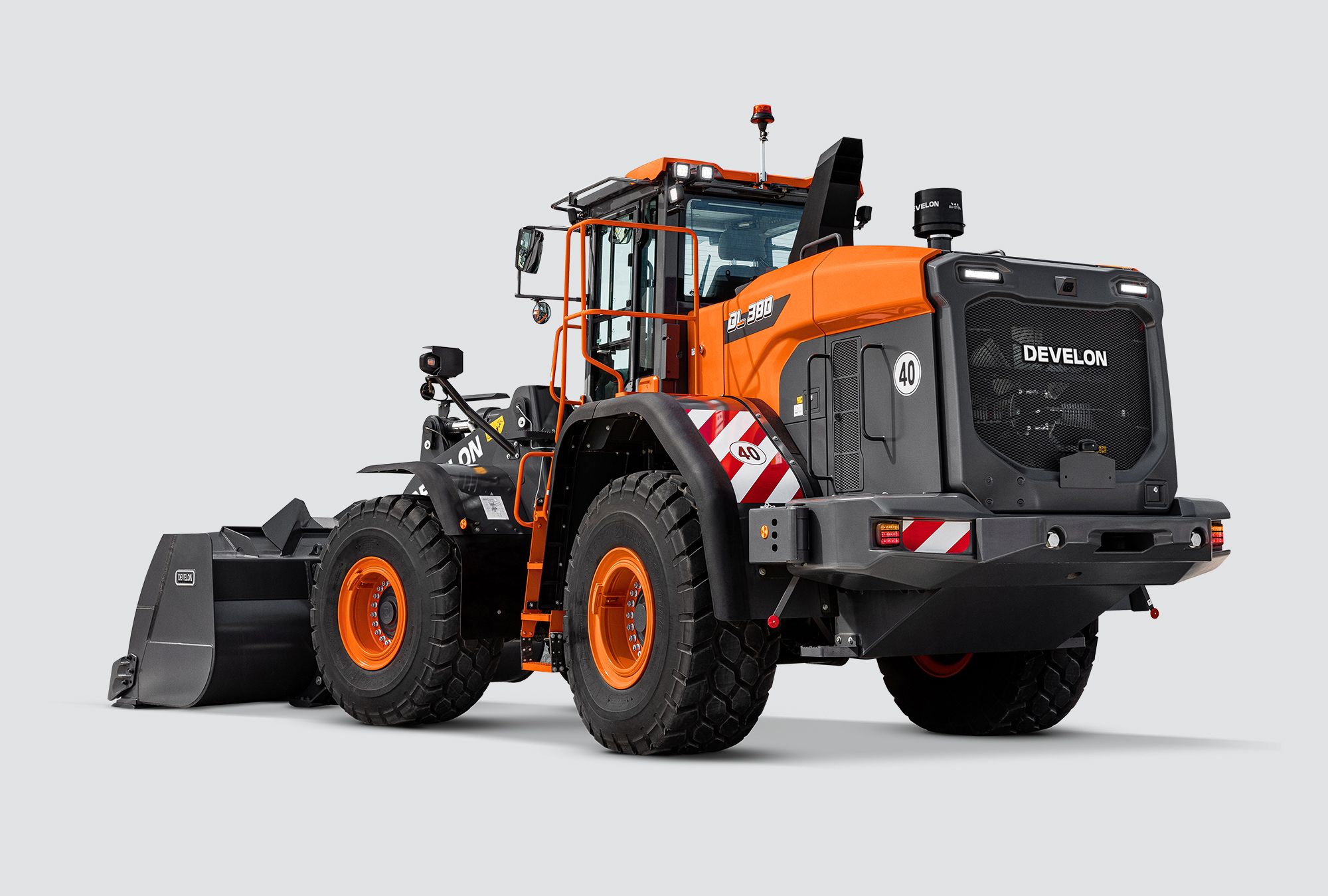

DL380-7
Bucket capacity
3.7 m³
Tipping load
16.248 kg
Static tipping load, at 40°
14.341 kg
Length with bucket
8.530 mm
Width with bucket
3.000 mm
DL08V
No. of cylinders
6
Bore × stroke
108 × 139 mm
Displacement
7640 cm³
Starter
24 V / 6 kW
Fuel Type 01
ULSD (EN590, ASTM D975 No.2-D S15)

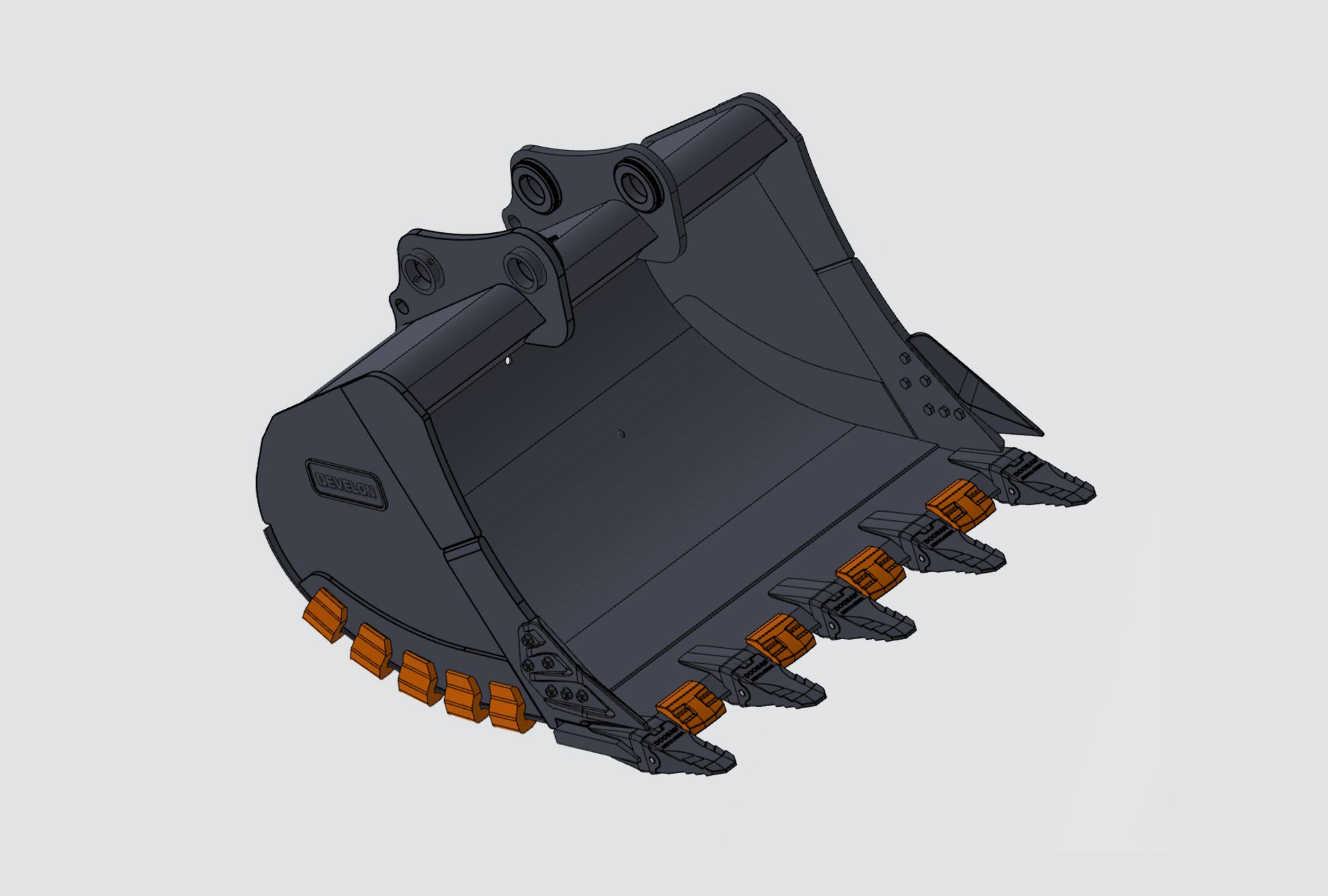

H-CLASS BUCKETS (HEAVY DUTY)
Width
642mm - 2226mm
Capacity
0.31m³ - 5.24m³
4 HD (Heavy Duty) teeth
6 HD teeth, 4 ESCO teeth - 5 ESCO teeth
DL06V
No. of cylinders
6
Bore × stroke
100 × 125 mm
Displacement
5890 cm³
Starter
24 V / 6 kW
Fuel Type 01
ULSD (EN590, ASTM D975 No.2-D S15)
D34 - CRAWLER EXCAVATORS
No. of cylinders
4
Bore × stroke
98 × 113 mm
Displacement
3409 cm³
Starter
24 V / 5 kW
Fuel Type 01
ULSD (EN590, ASTM D975 No.2-D S15)

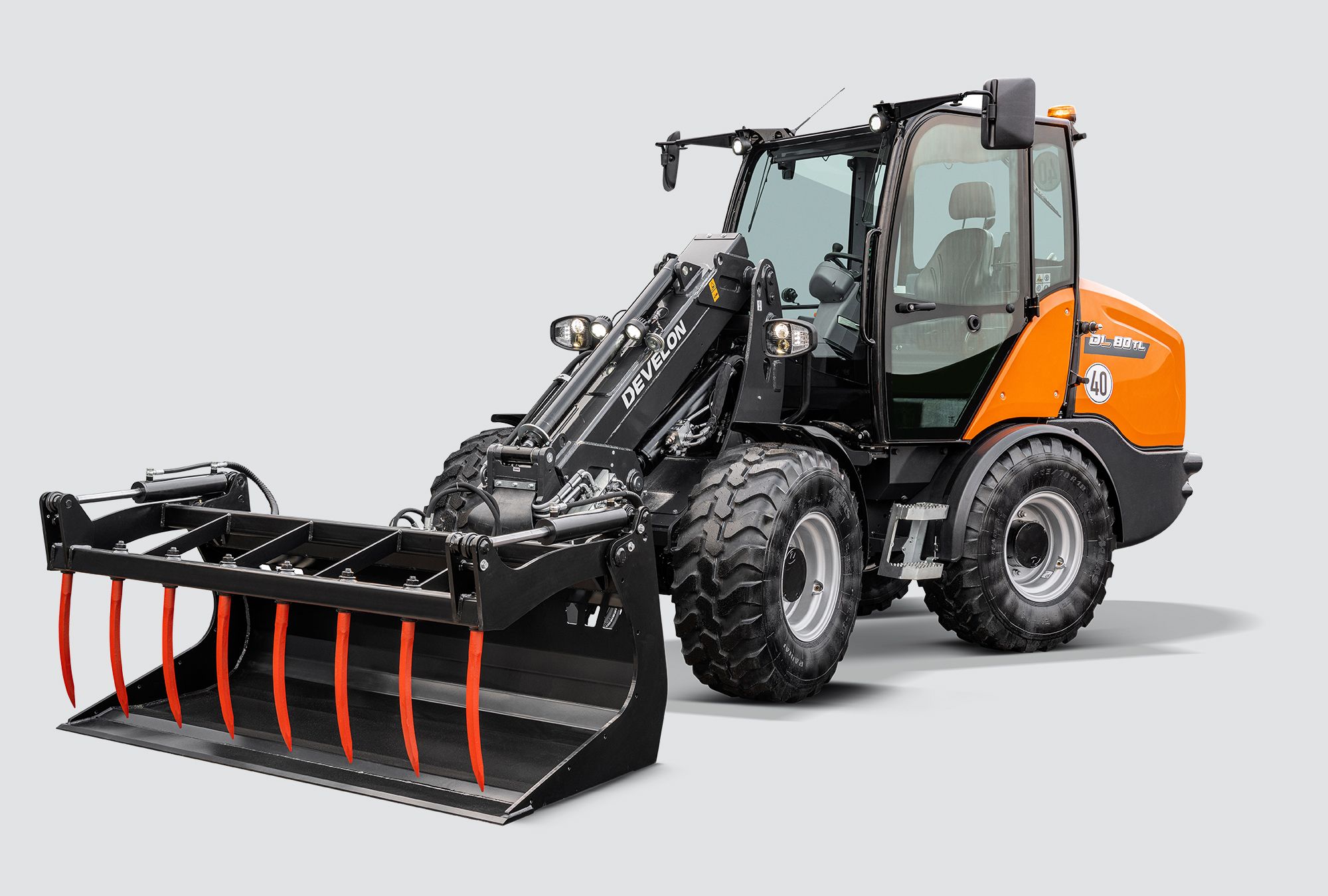

DL80TL-7
Maximum power
265 N·m @ 1500 rpm
Operating weight
5.200 kg
Emission standard
Stage V
Engine
Kubota V3307
Engine power
55 kW / 75 hp

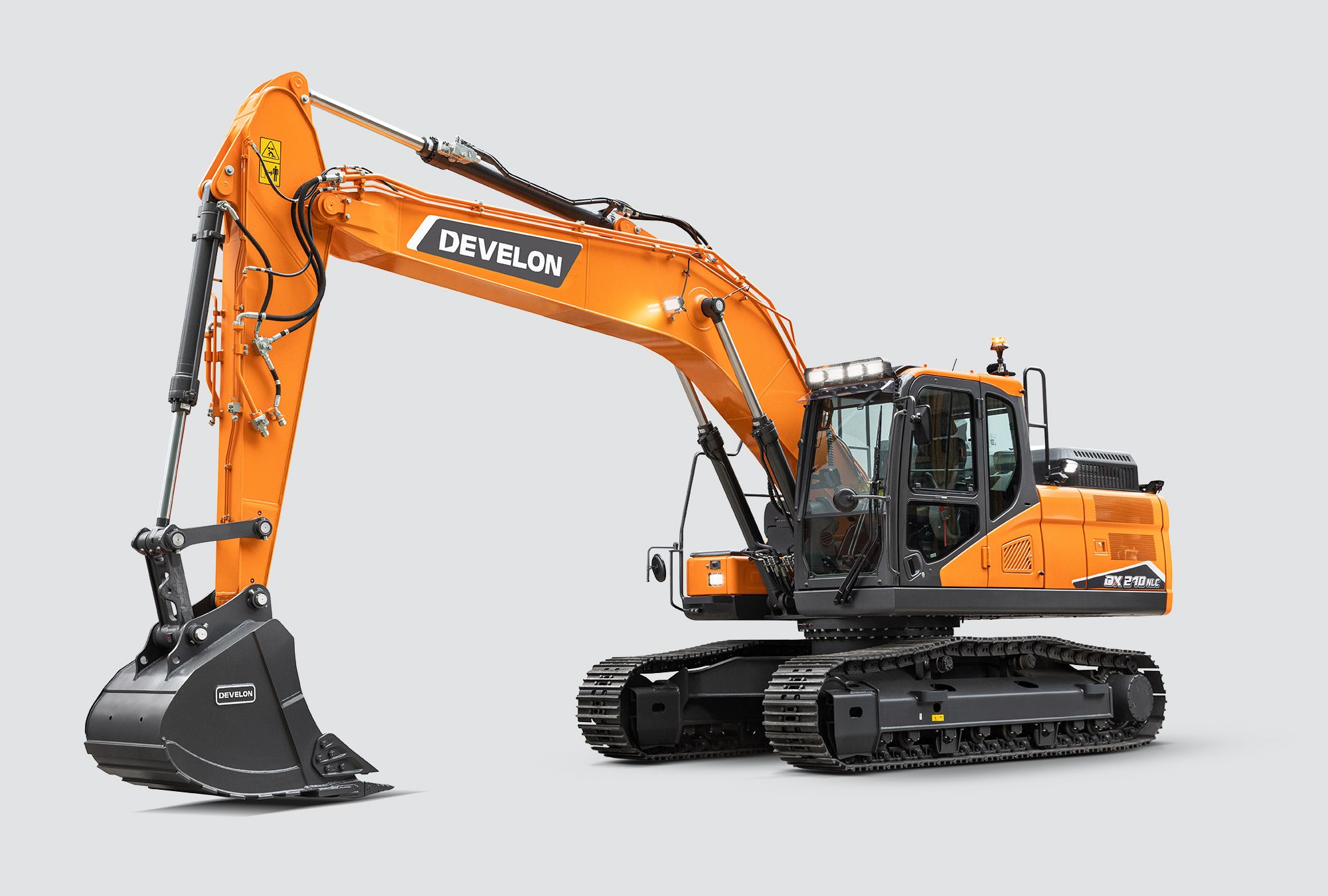

DX210NLC-7
Maximum power
166 hp
Operating weight
22.100 kg
Bucket capacity
0.92 m3
Emission standard
Stage V
Engine
Develon DL06V

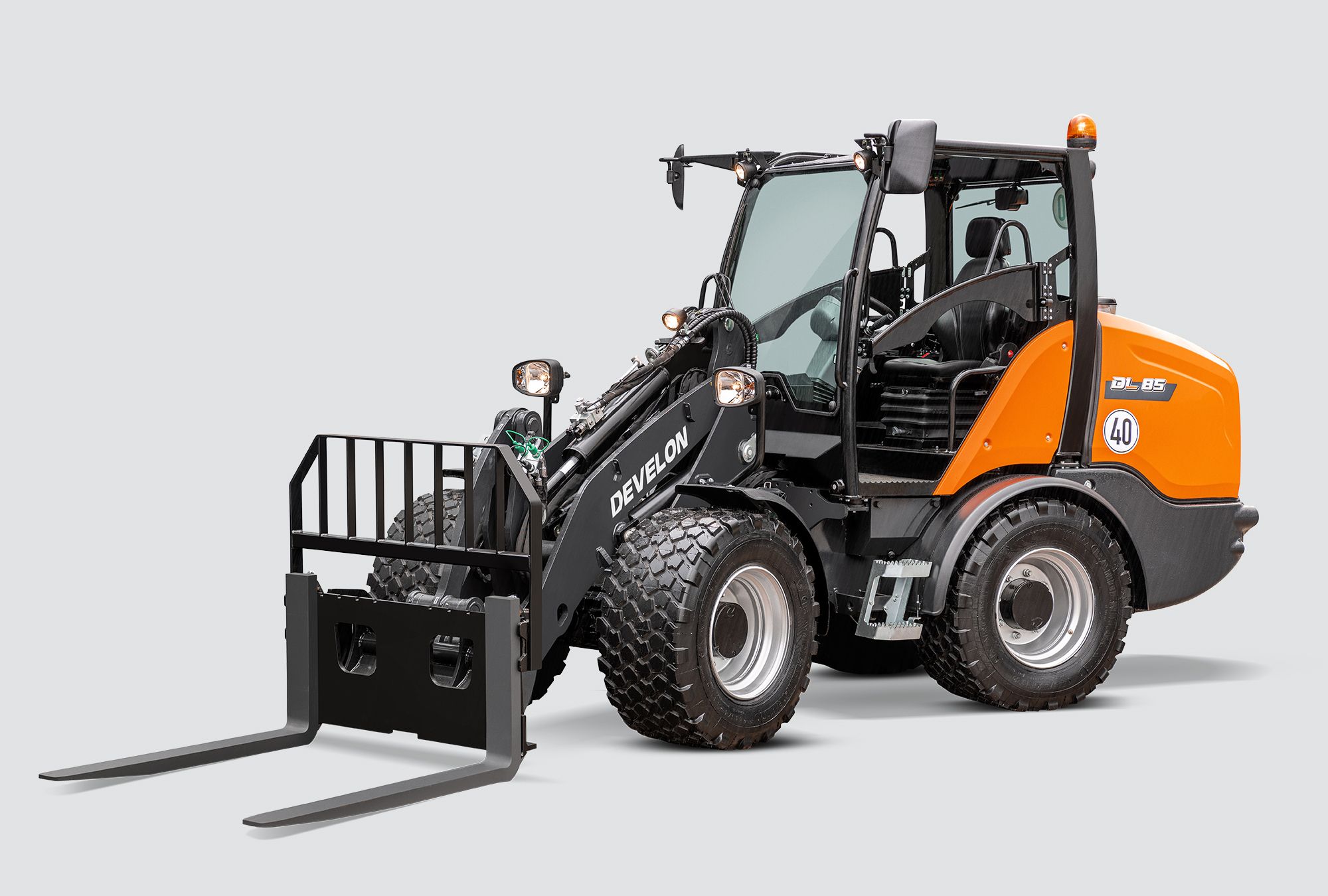

DL85-7
Maximum torque
265 N·m @ 1500 rpm
Operating weight
5.100 kg
Emission standard
Stage V
Engine
Kubota V3307
Engine power
55 kW / 75 hp

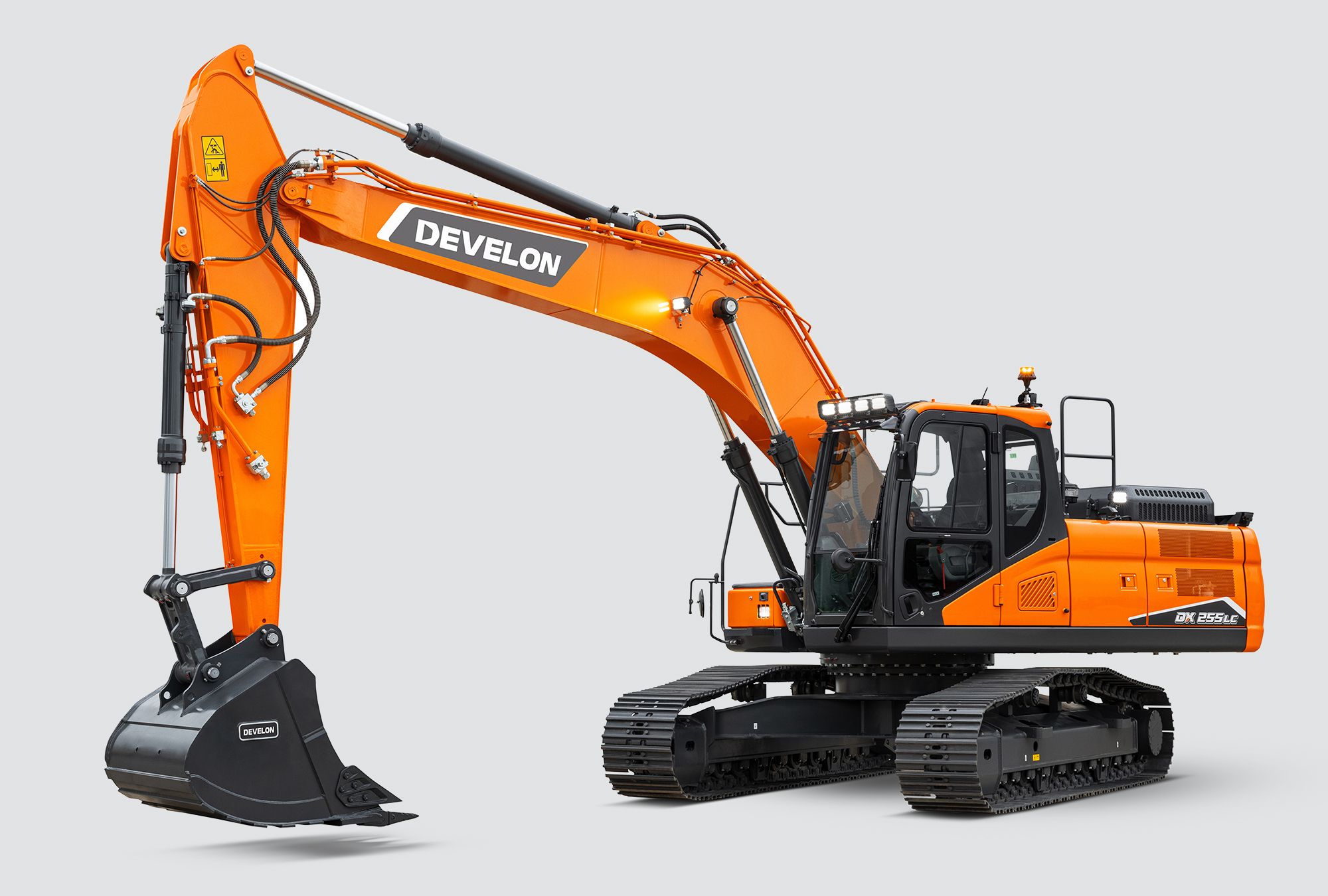

DX255LC-7
Maximum power
189 hp
Operating weight
25.700 kg
Bucket capacity
1.4 m³
Emission standard
Stage V
Engine
Develon DL06V

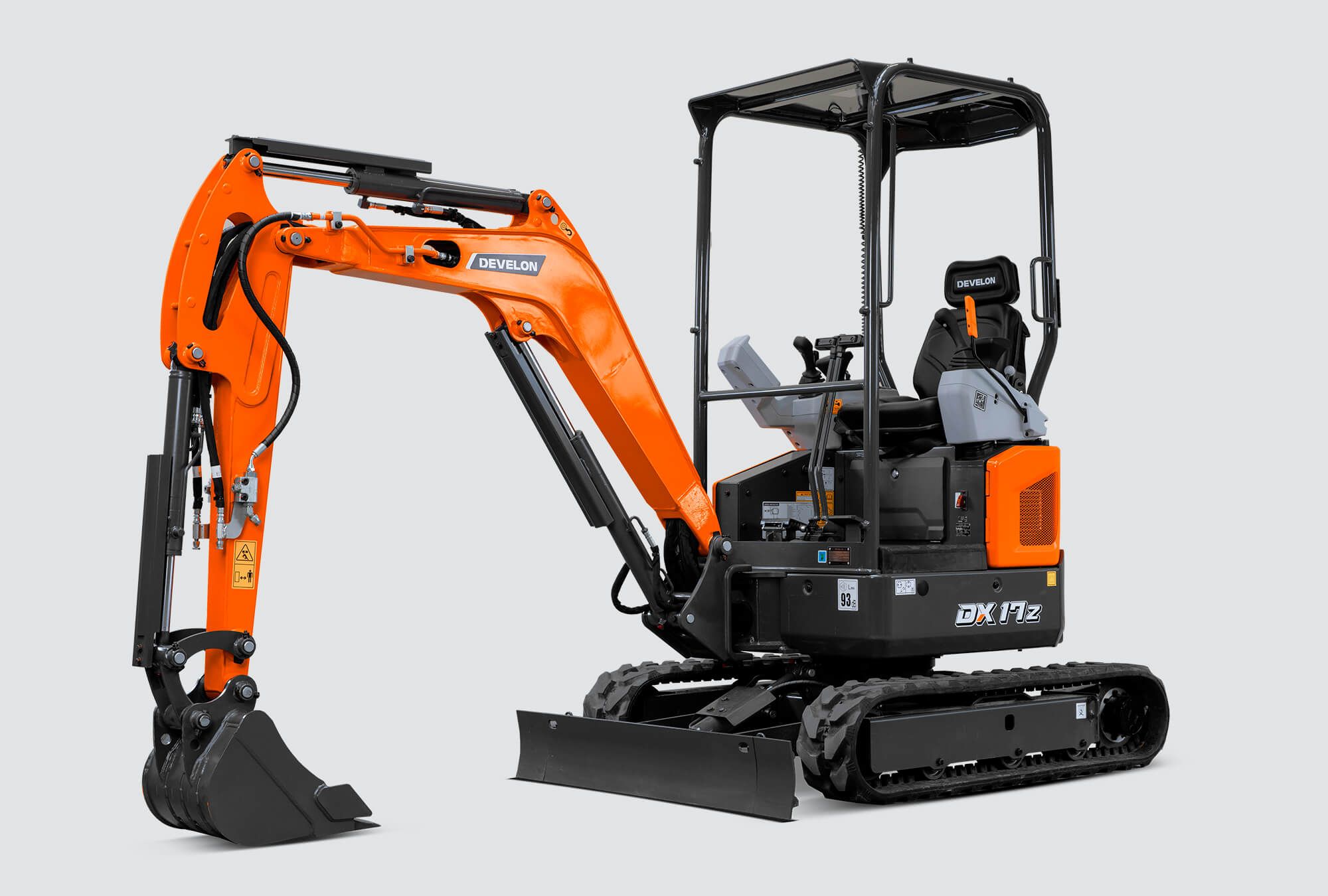

DX17Z-7
Operating weight
1850 kg
Engine power
12.1 kW (16.5 hp) @ 2400 rpm
Buckets
0.04 m3
Max. digging depth (std / long arm)
2240 / 2440 mm
Max. reach ground level (standard/long arm)
3820 / 4010 mm
DX210W-7
Maximum power
189 hp
Operating weight
21.900 kg
Buckets
0.86 m3
Emission standard
Stage V
Engine
Develon DL06V

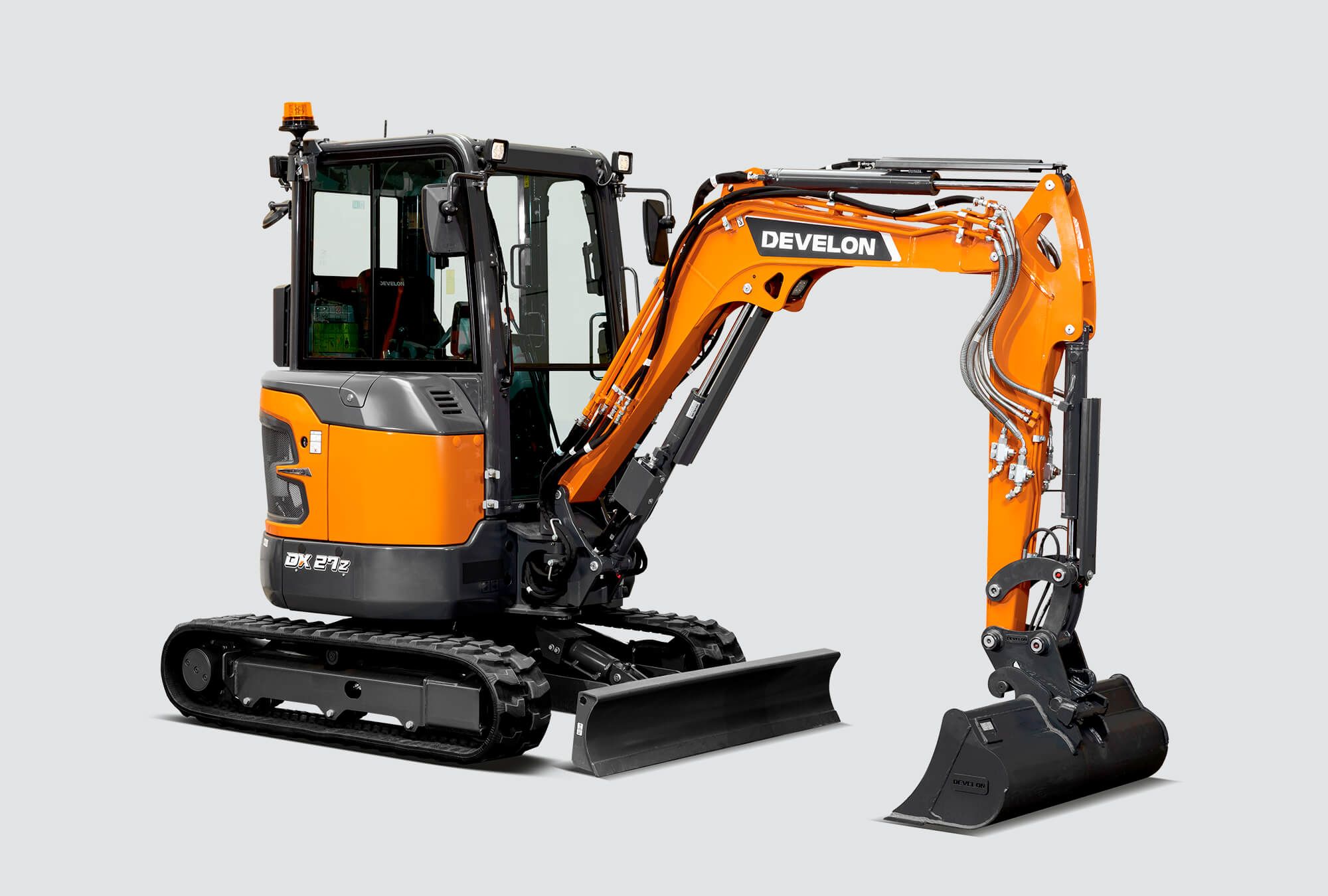

DX27Z-7
Engine power
18.4 kW (25 hp) @ 2400 rpm
Operating weight
2798 kg
Max. bucket capacity
0,06 m³
Engine
Develon D17
Maximum power
18.4kW / 2400 RPM

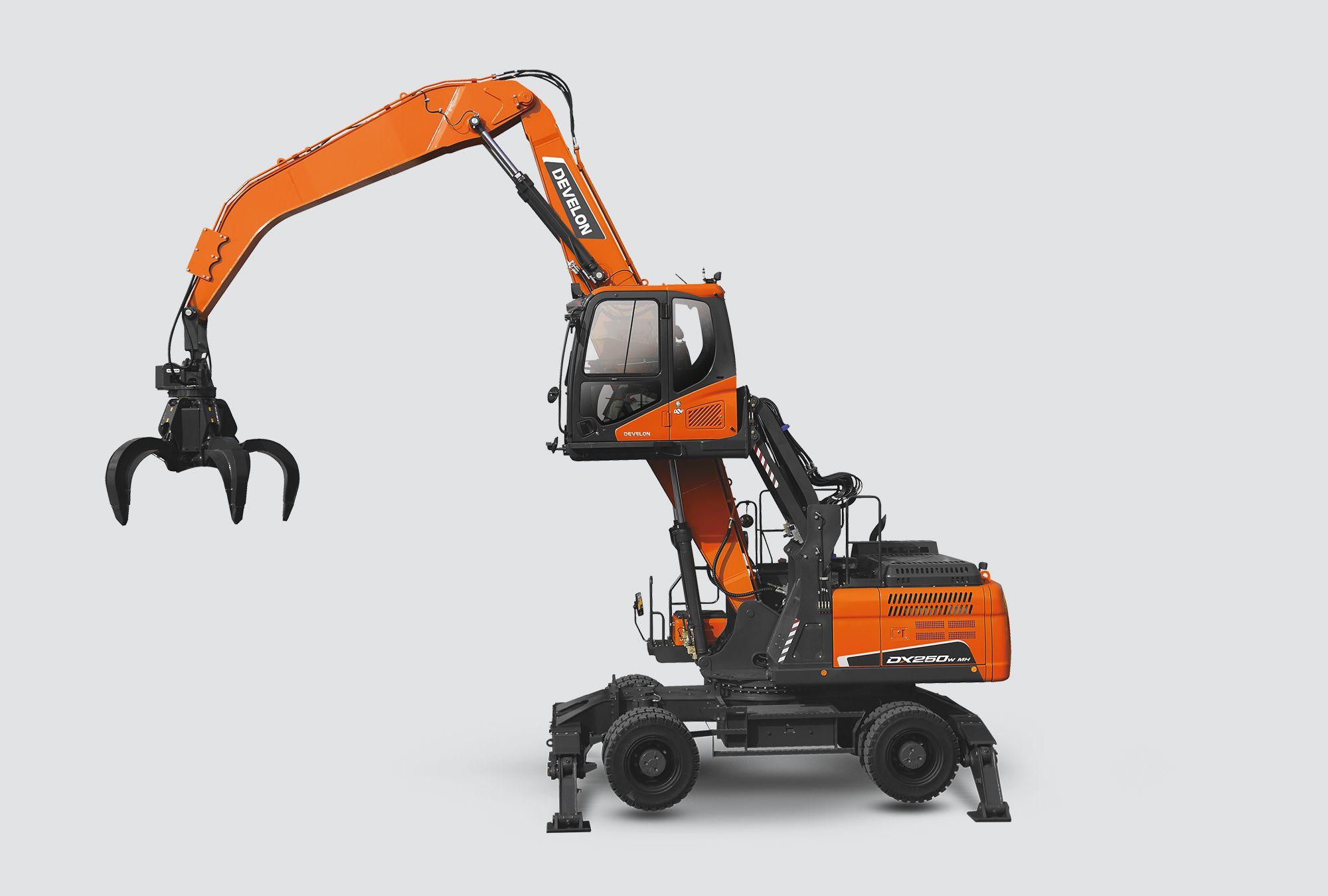

DX250WMH-7
Operating weight
25397/25672 kg (Gooseneck Arm/Straight Arm)
Travel speed
4 - 9 - 20 km/h
Engine model
Develon DL06V
Power (SAE J1995)
189HP/141kW @1900rpm
Emission standard
StageV

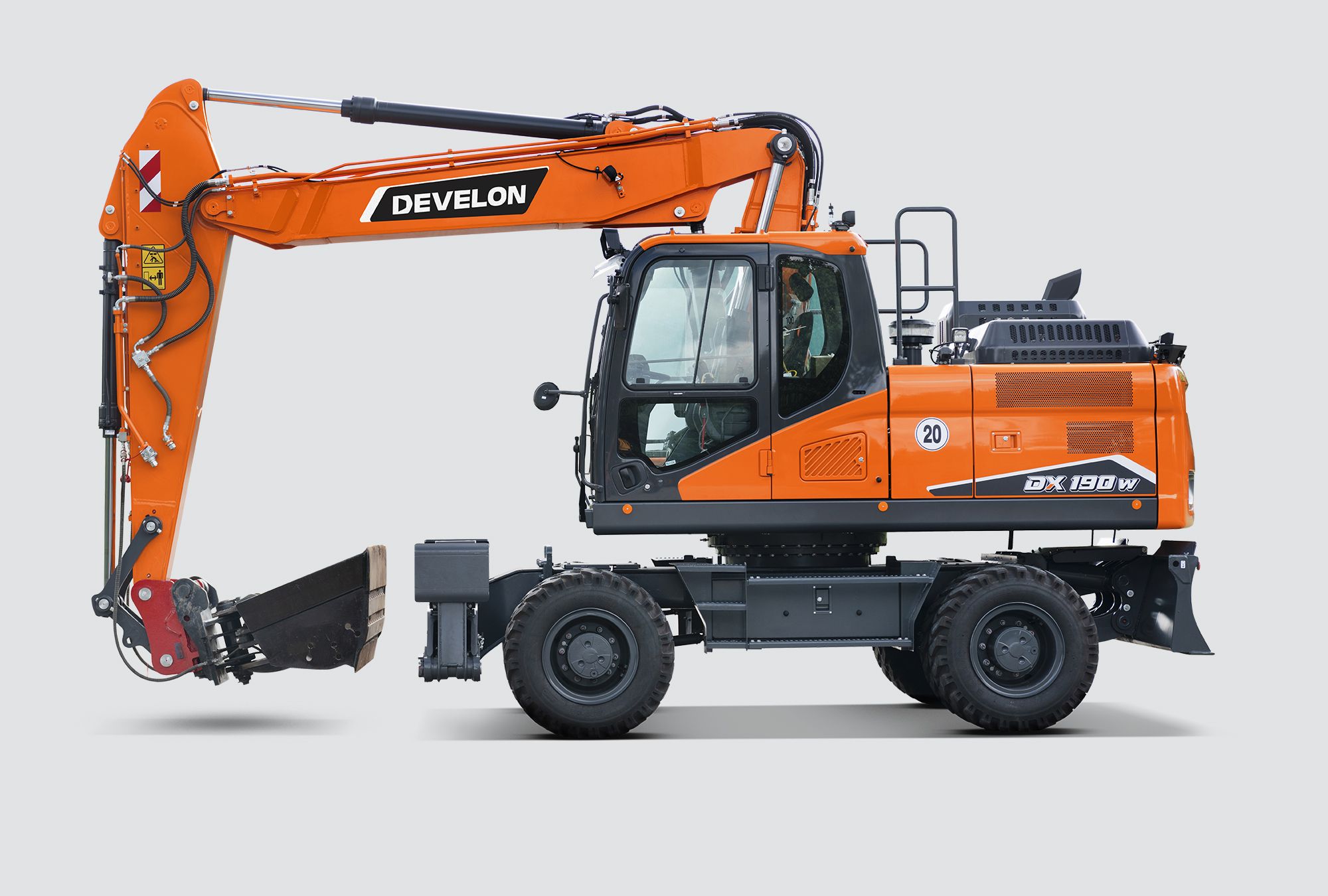

DX190W-7
Maximum power
174 hp
Operating weight
18.320 kg
Buckets
0.76 m³
Emission standard
Stage V
Engine
Develon DL06V
DX165WR-7
Maximum power
137 hp
Operating weight
17.300 kg
Buckets
0.64 m3
Emission standard
Stage V
Engine
Perkins 1204J

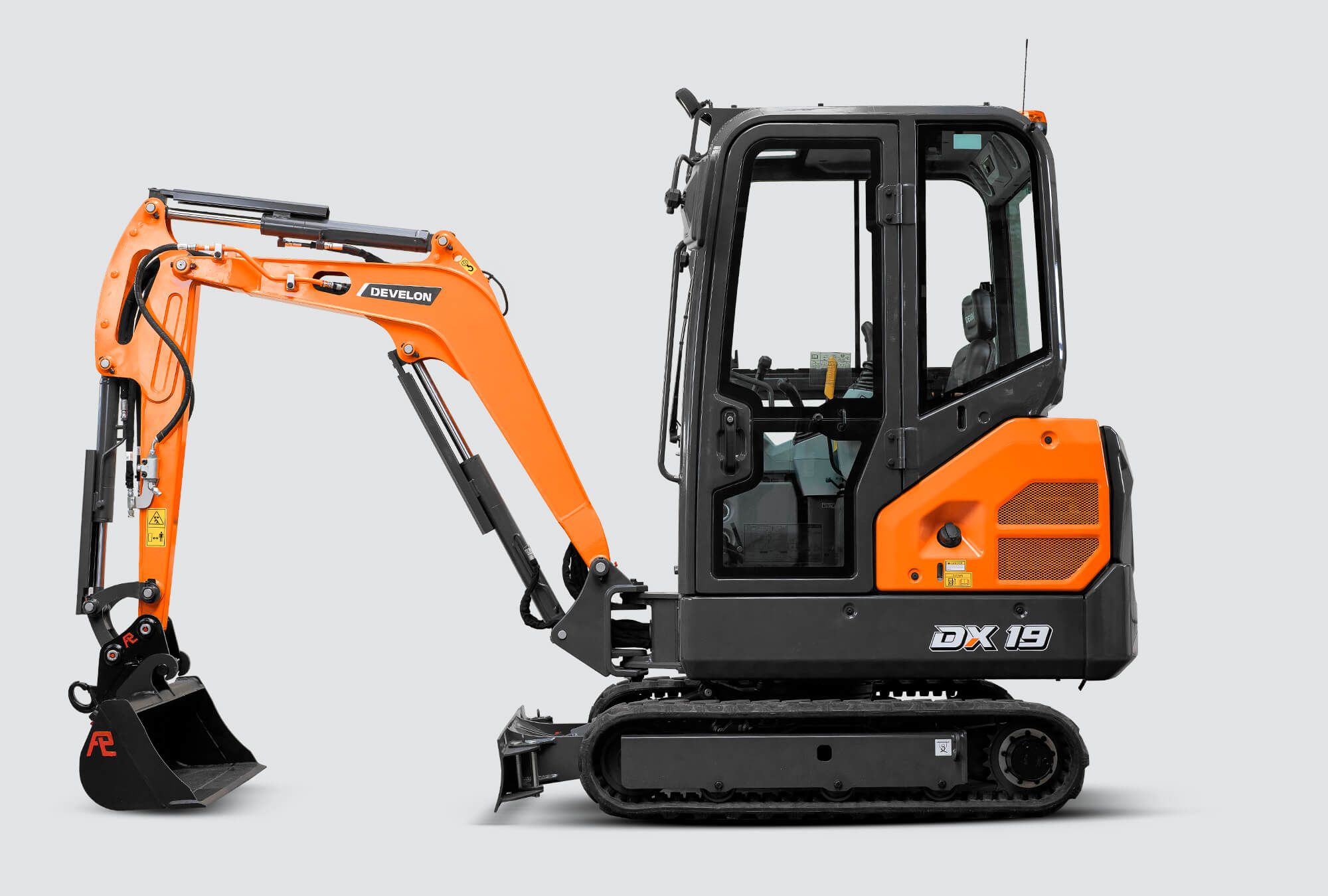

DX19-7
Operating weight
1885 kg
Engine power
12.1 kW (16.5 hp) @ 2400 rpm
Buckets
0.04 m3
Max. digging depth (std / long arm)
2340 / 2540 mm
Max. reach ground level (standard/long arm)
3850 / 4040 mm

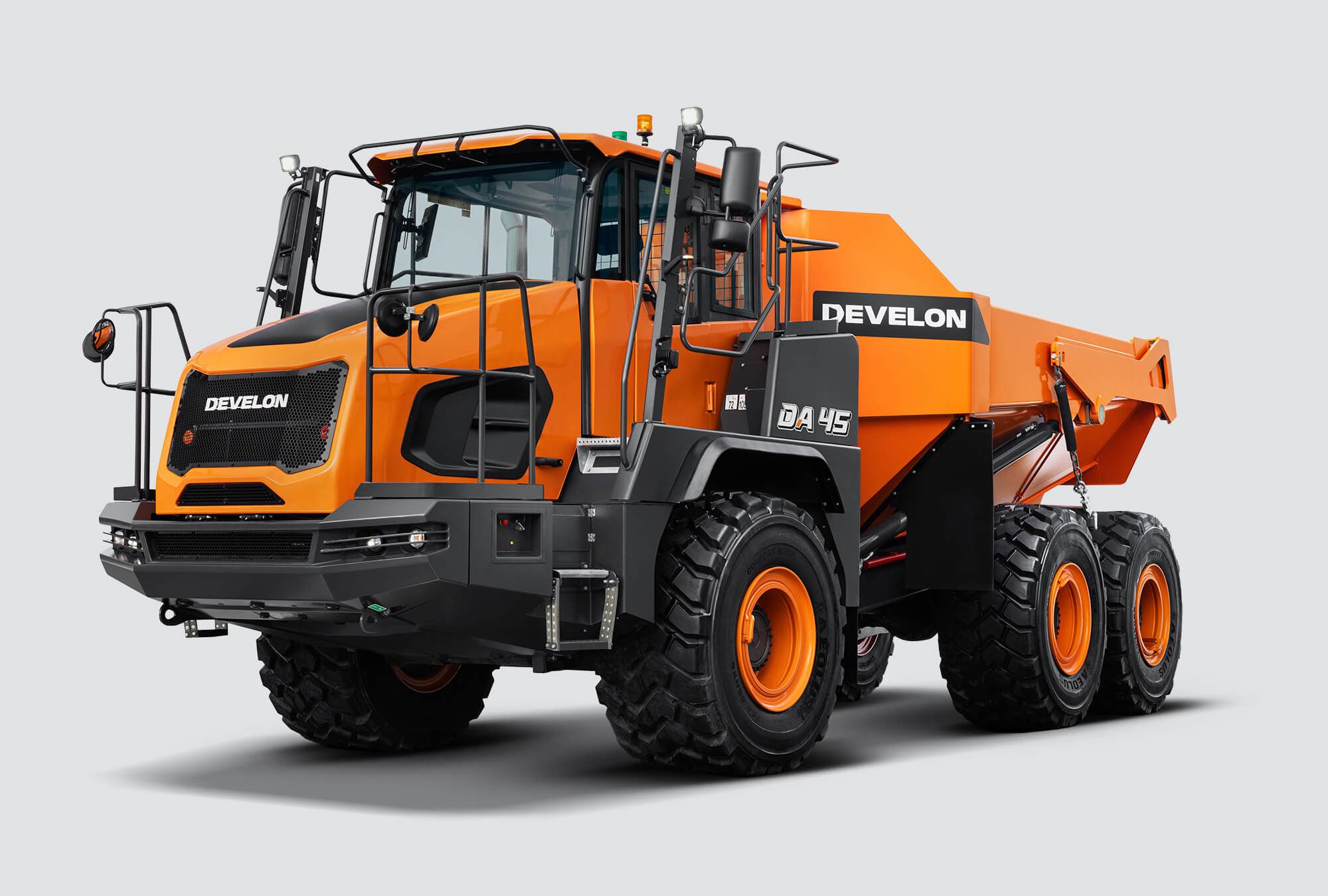

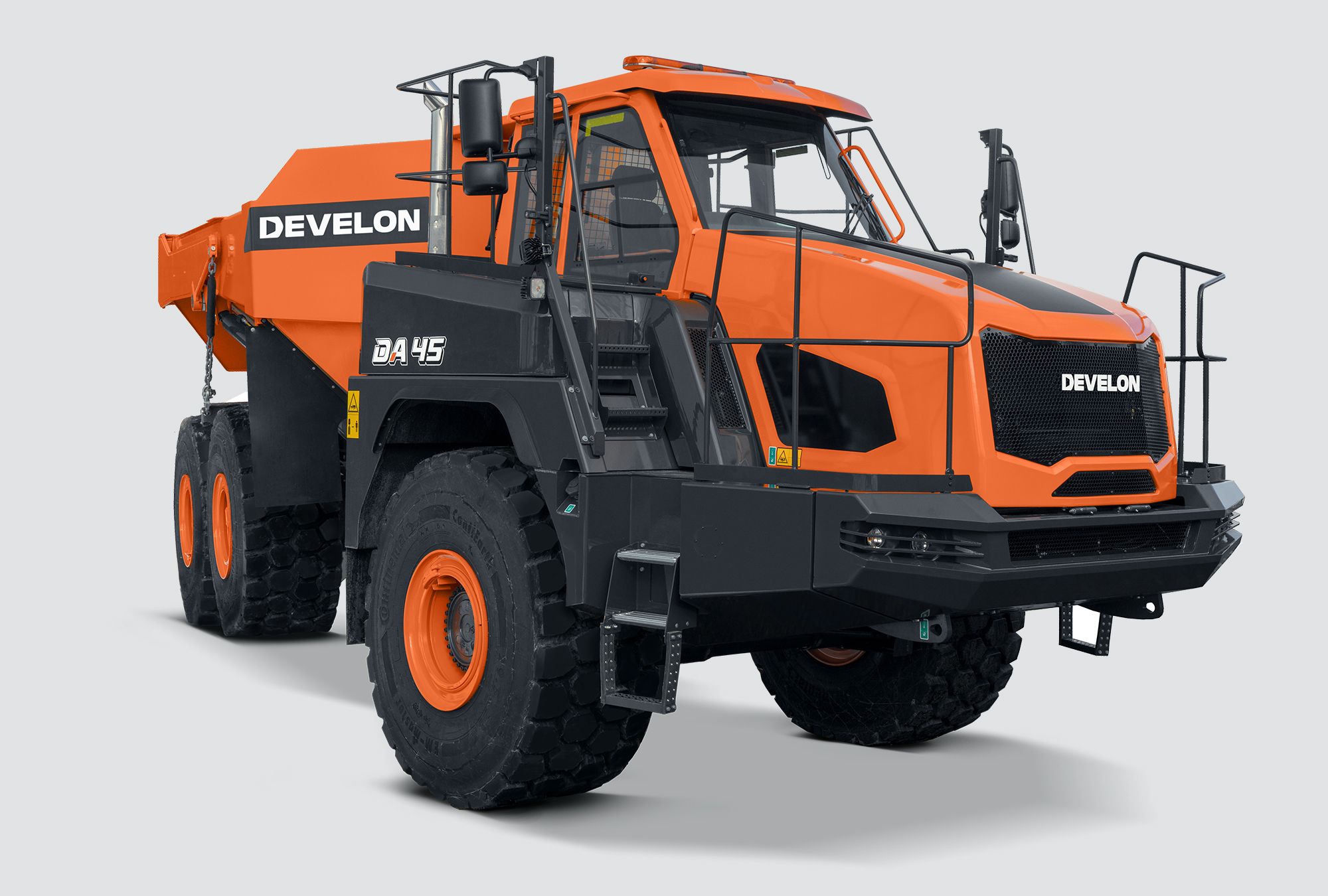

DA45-7
Engine
Scania DC13
Configuration
6 in line cyl / 12.7 l
Gross power
500HP (368 kW) @ 2.100 RPM
Gross torque
2.373 Nm @ 1.300 RPM
Body volume (SAE 2:1) without tailgate
24.4 m³

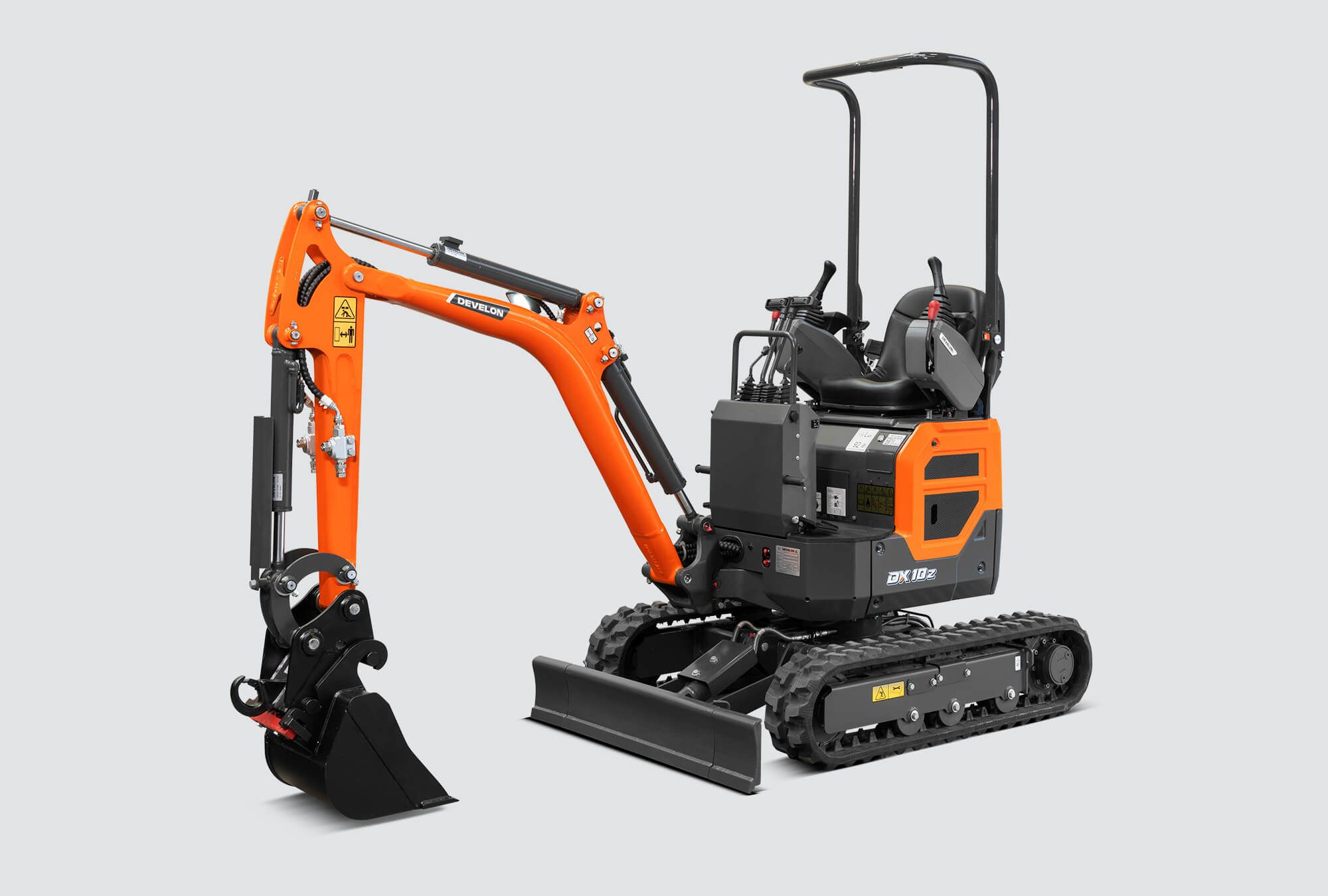

DX10Z-7
Operating weight
1165 kg
Engine
Kubota D722
Engine power
7,6 kWh (10,35 HP) @ 2050 rpm
Width
730/1100 mm
Max. reach ground level (standard/long arm)
3355 mm

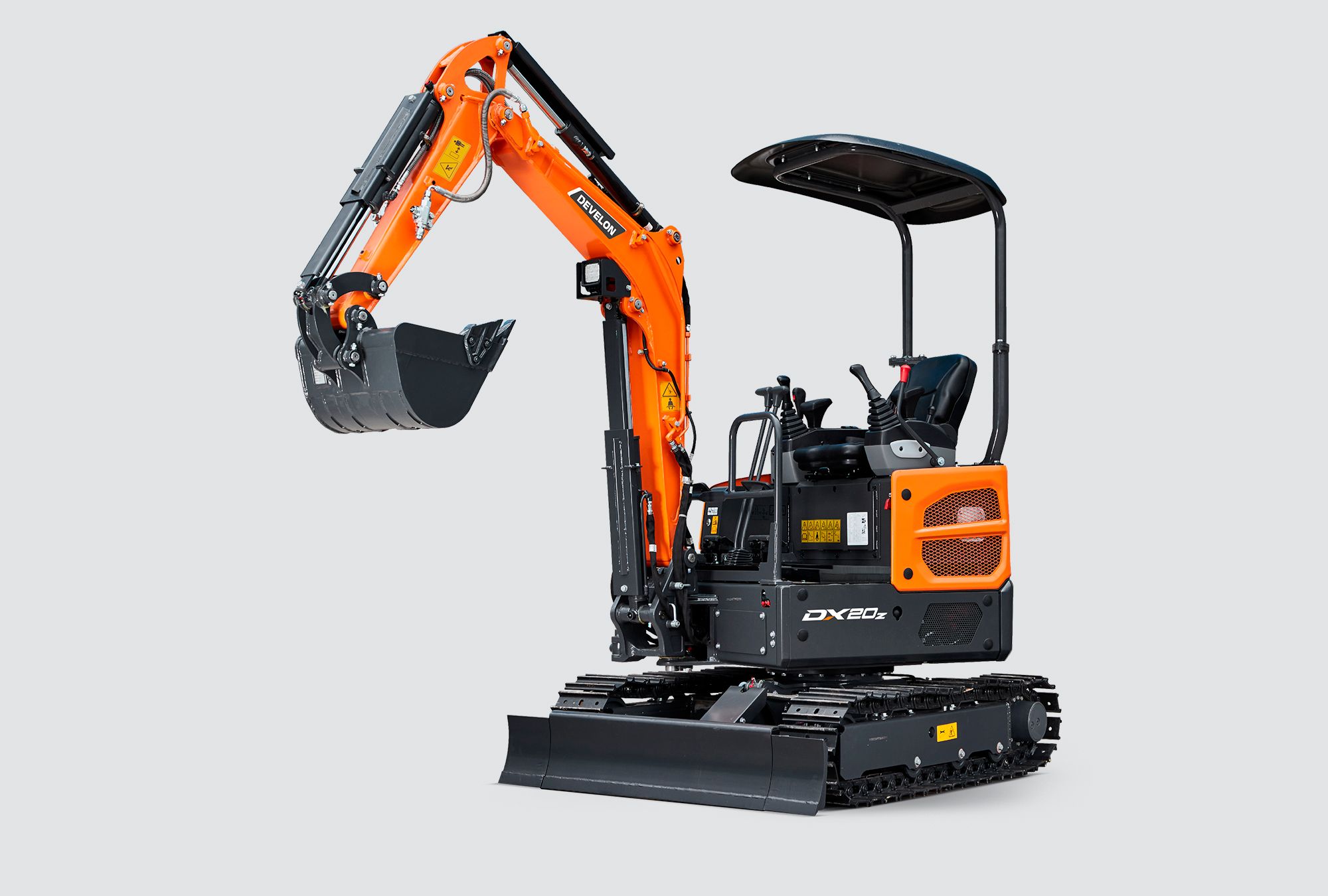

DX20Z-7
Operating weight
1995 kg
Engine
Yanmar 3TNV70
Arm length
1100 mm
Digging force
0.762
Engine power
10.3 kW (13.8 hp) @ 2200 rpm

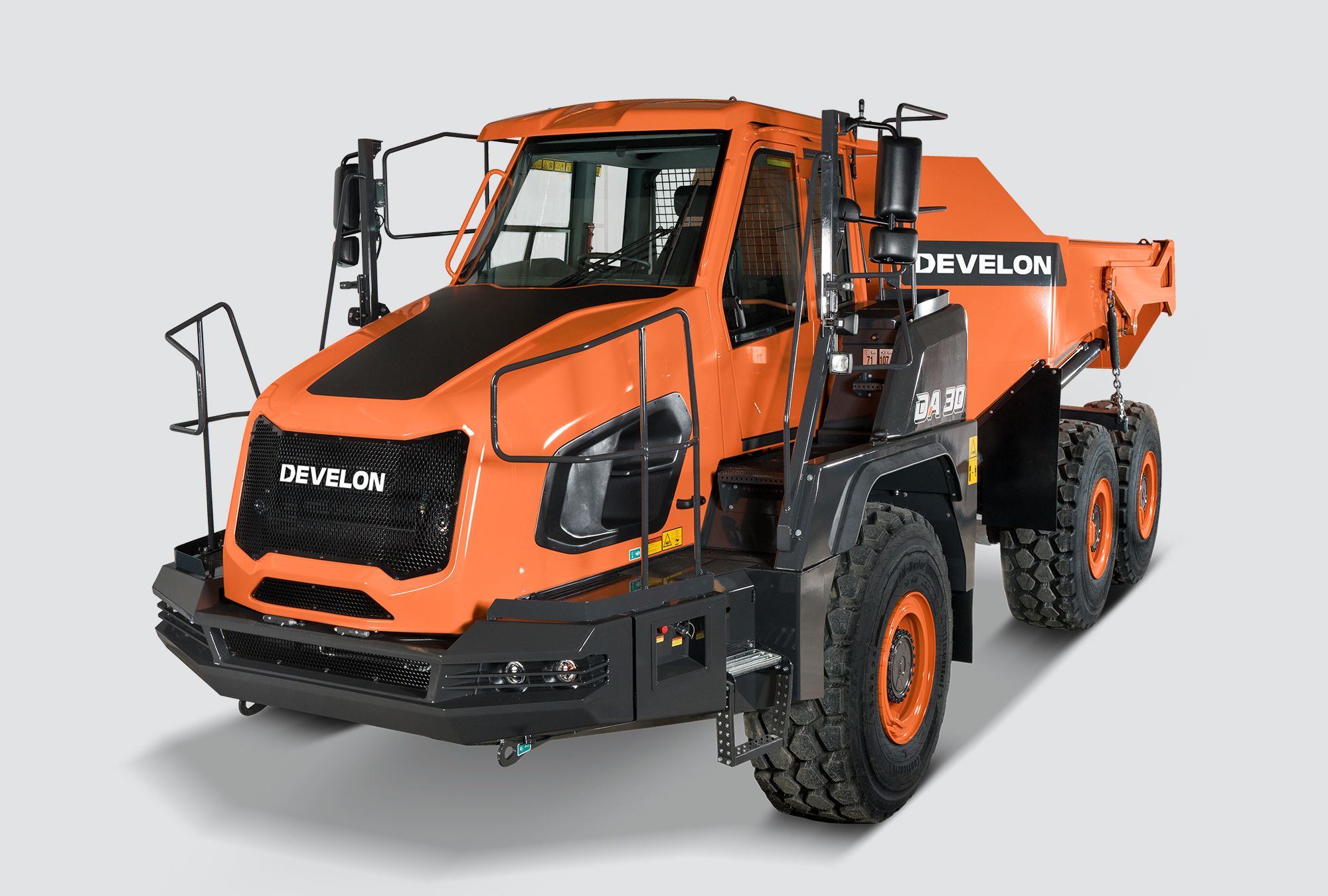

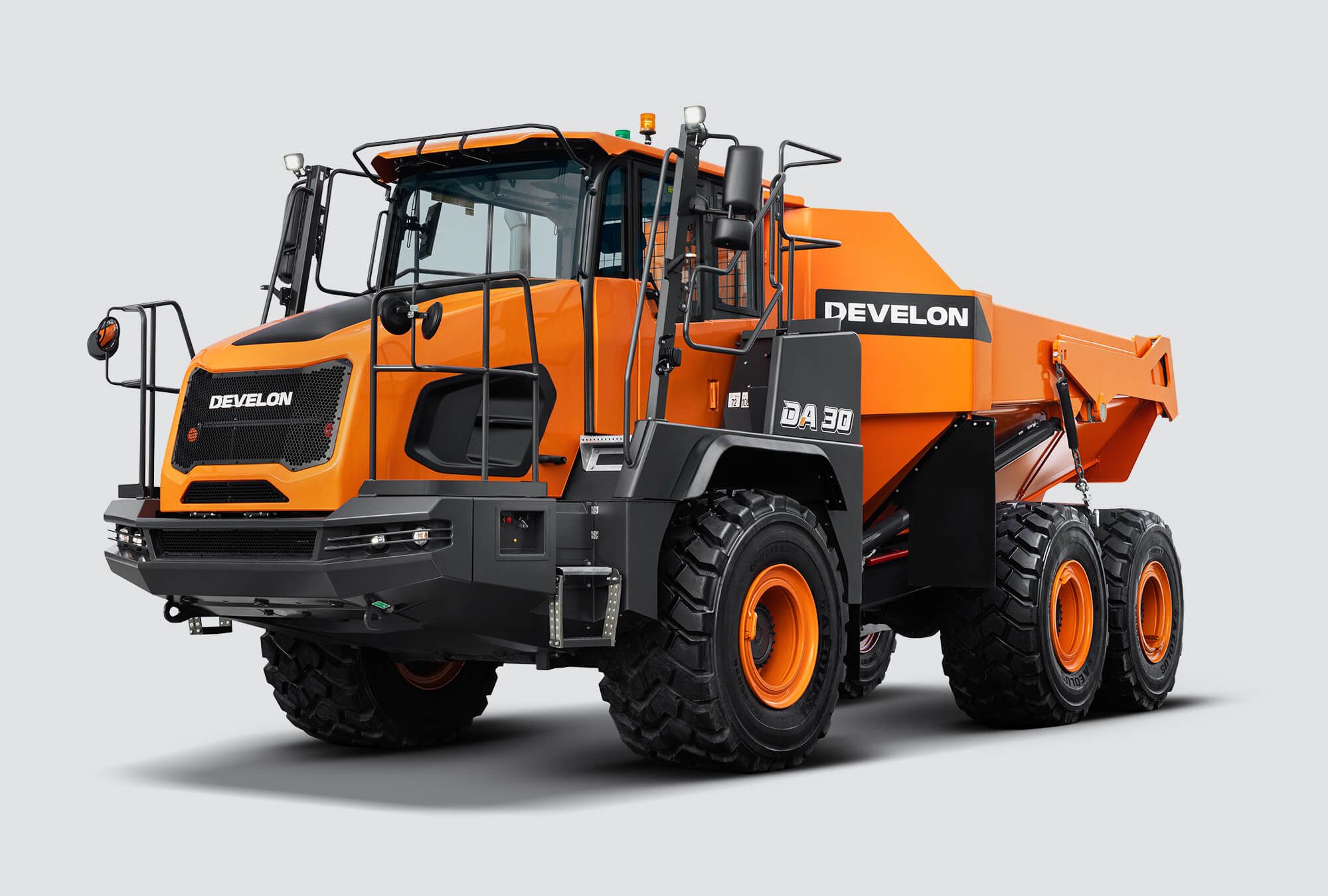

DA30-7
Engine
Scania DC 09
Configuration
5 in line cyl / 9.3 l
Gross power
375HP (276 kW) @ 2.100 RPM
Gross torque
1873 Nm @ 1.300 RPM
Body volume (SAE 2:1) without tailgate
16.8 m³

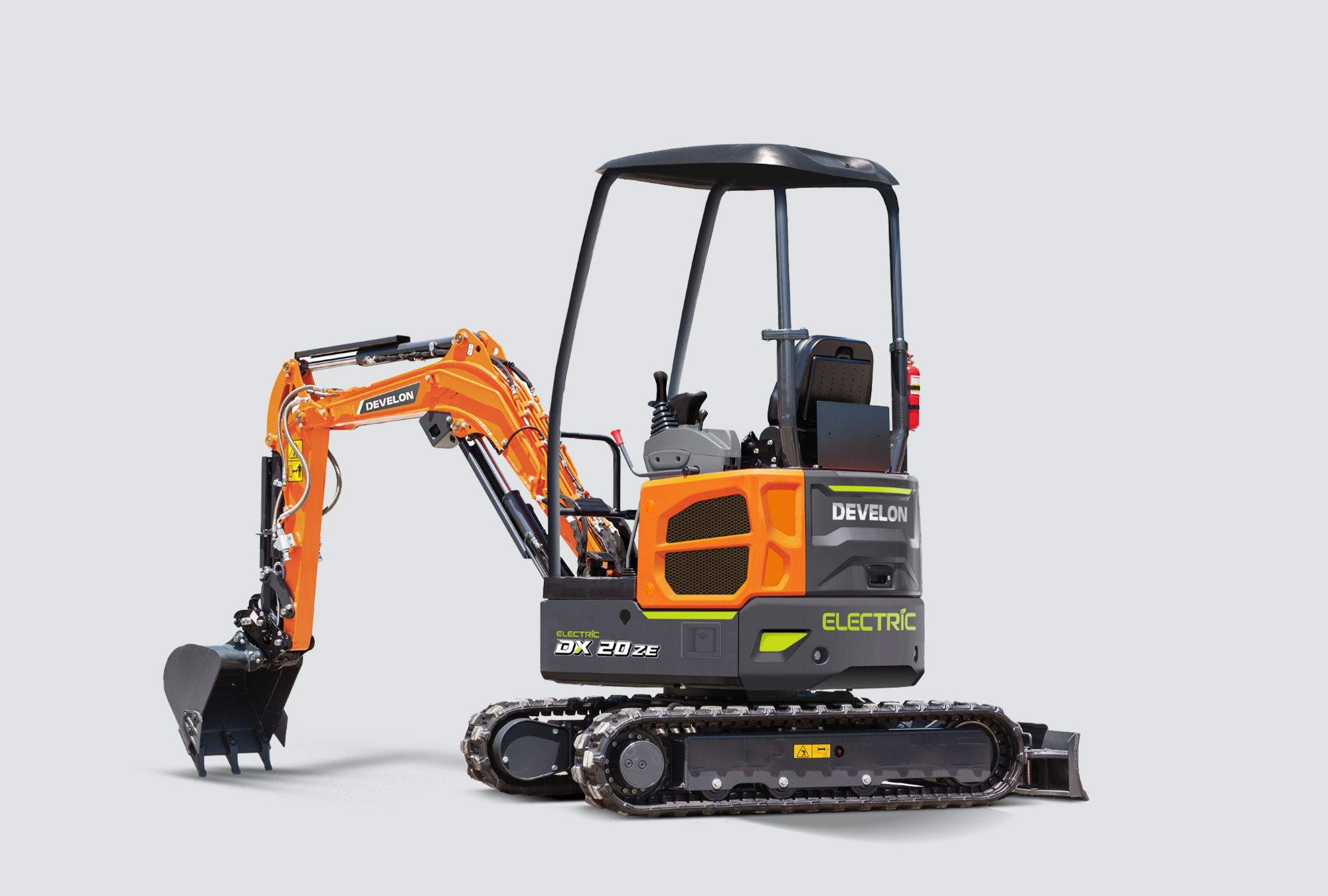

DX20ZE
Operating weight
1941 kg
Travel speed
2 - 3.7 km/h
Battery Voltage
51 V
Battery Power
20.4 kWh
Bucket capacity
0.05 m³

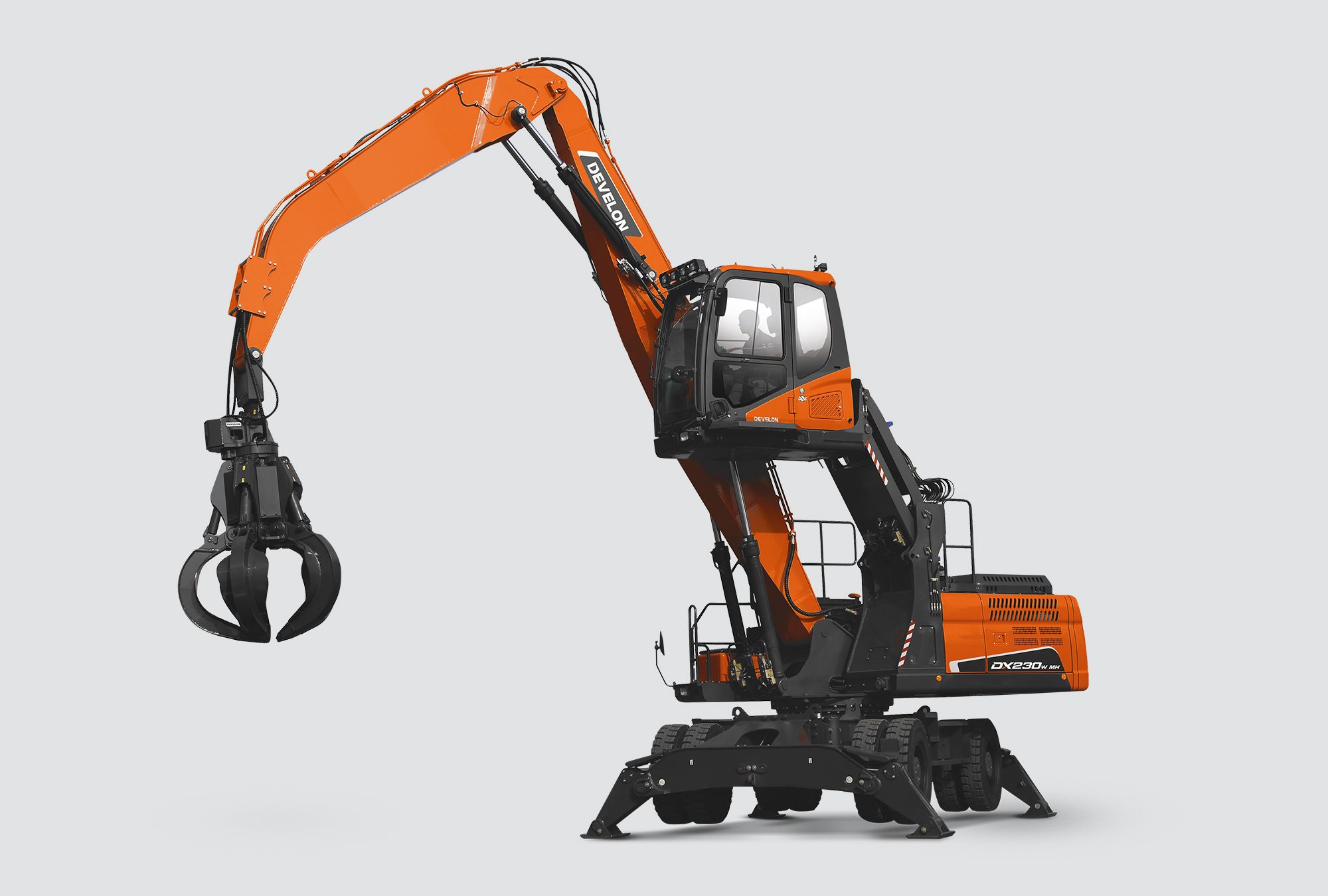

DX230WMH-7
Operating weight
24017/24317 kg (Gooseneck Arm/Straight Arm)
Travel speed
4 - 9 - 20 km/h
Engine model
Develon DL06V
Power (SAE J1995)
189HP/141kW @1900rpm
Emission standard
StageV

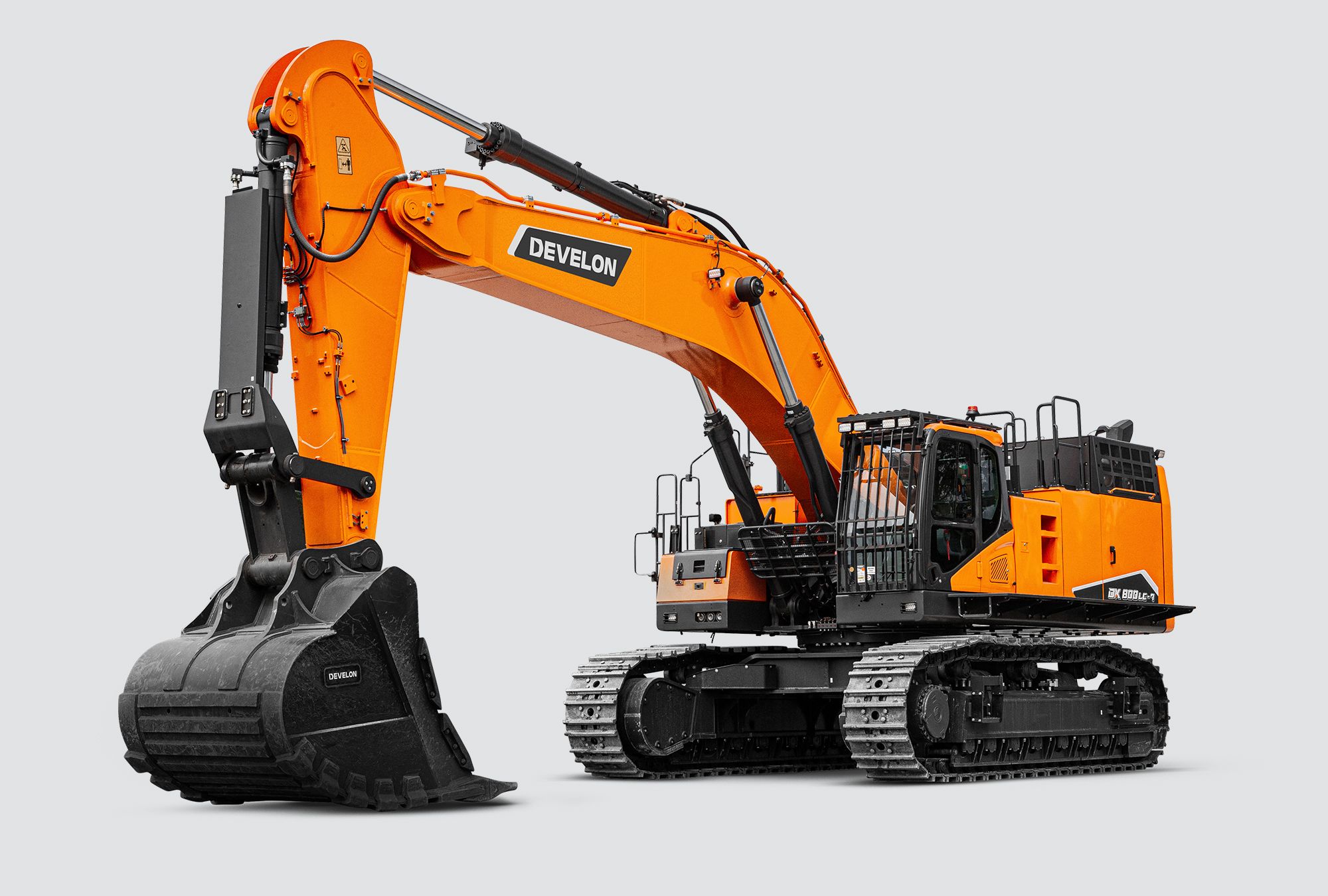

DX800LC-7
Operating weight
79.500 kg
Bucket capacity
4.6 m³
Digging depth with 7.7 m boom and 2.9 m arm
7725 mm
Digging reach
12672 mm
Digging height
11910 mm

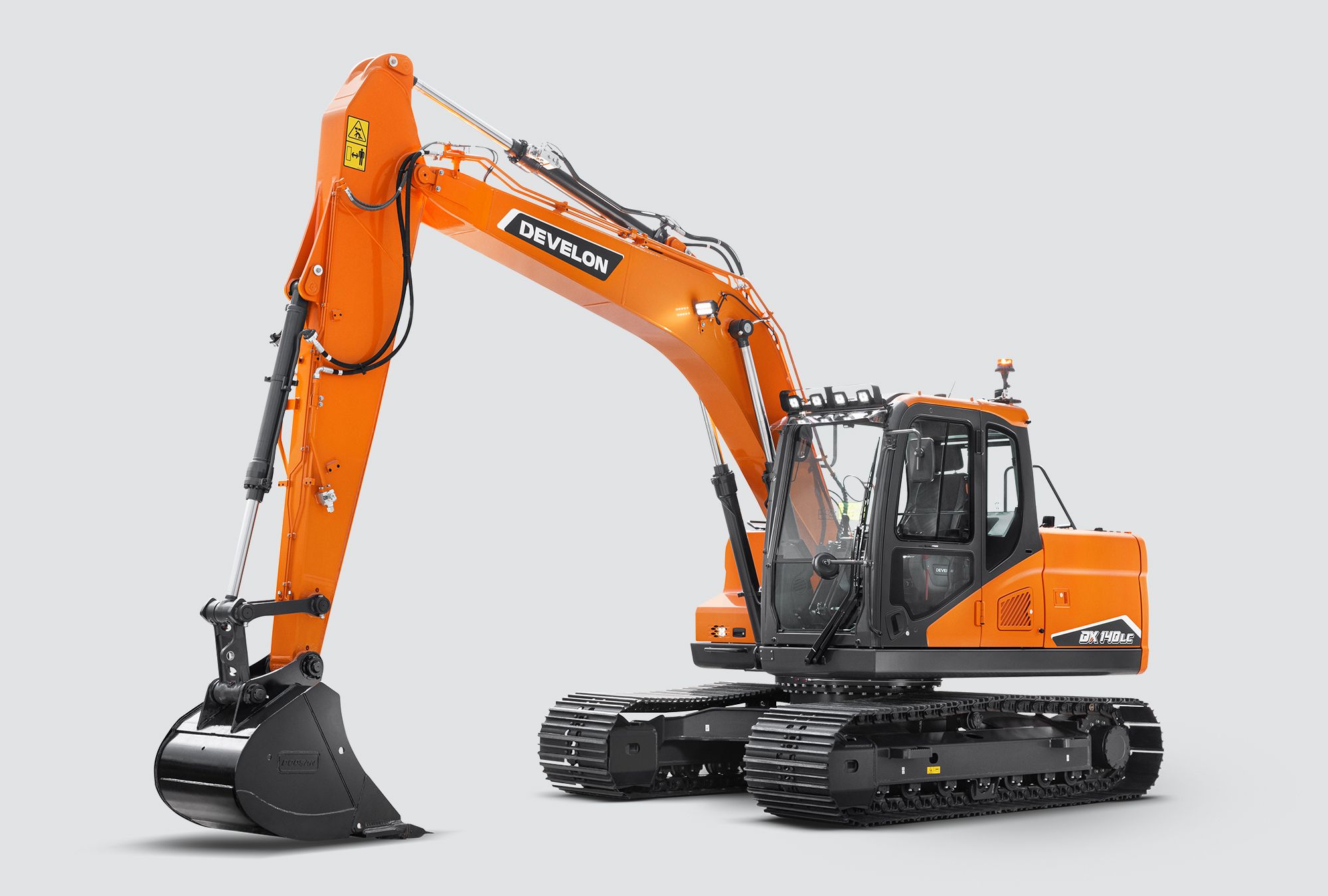

DX140LC-7K
Engine
Develon G2 D34
Operating weight
14.4 t
Maximum power
115 hp
Buckets
0.51 m³
Engine power
86 kW (115 hp) at 2000 rpm

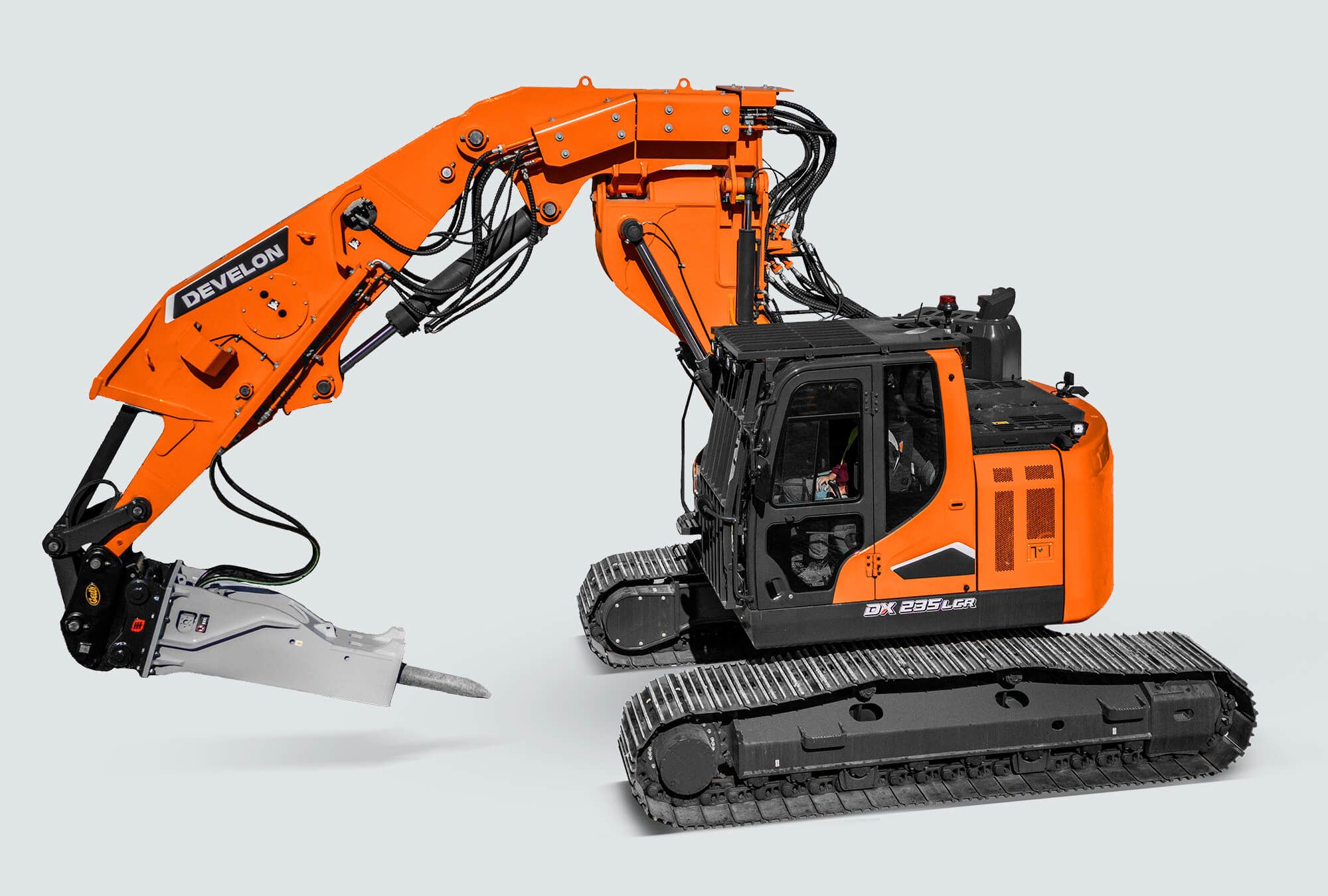

DX235RTF-7
Operating weight
25 689 kg
Travel speed
3,2 - 5,8 km/h
Engine model
DL06V
Power (SAE J1995)
189 hp/141 kW at 1900 rpm
Maximum swing speed
11.5 rpm

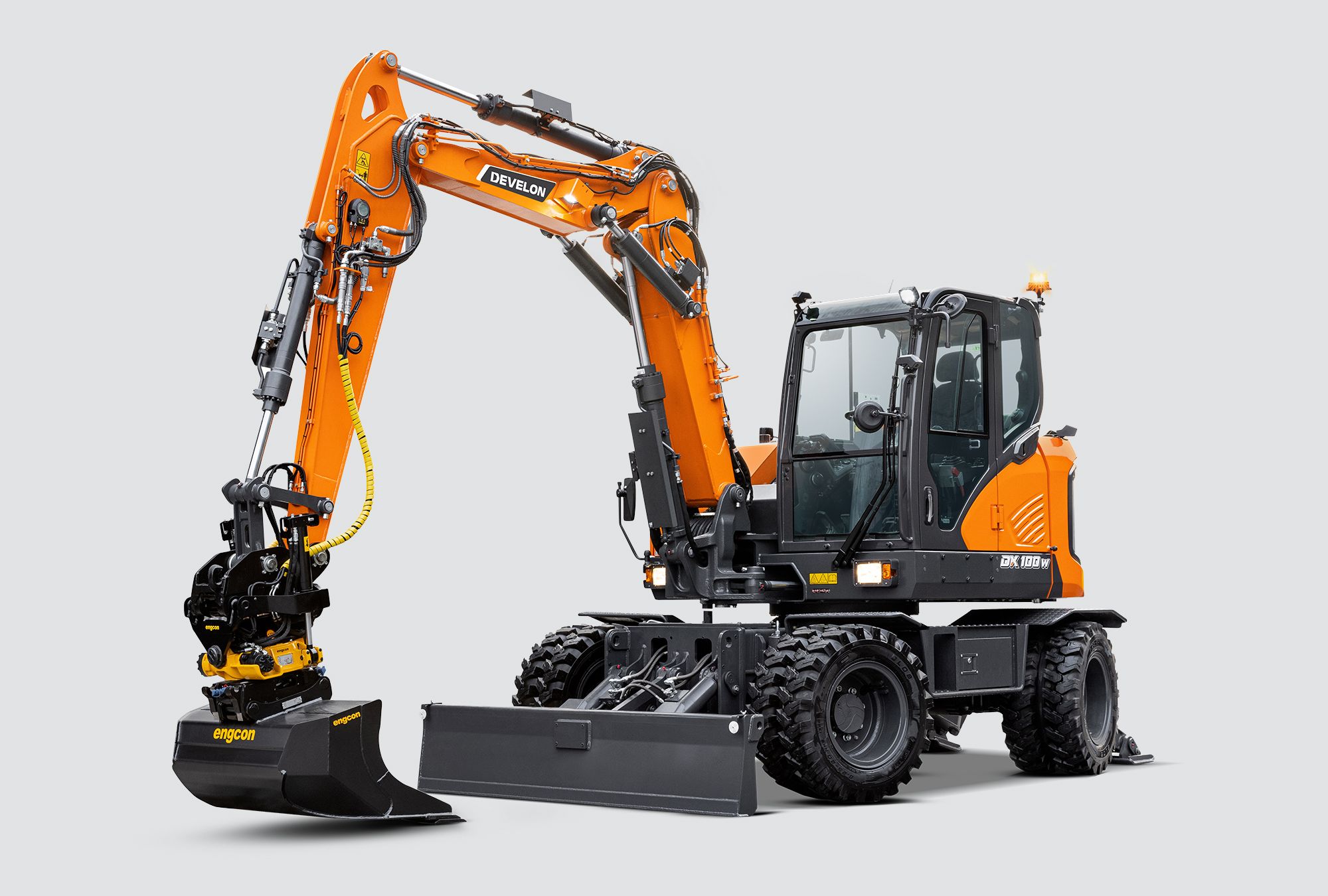

DX100W-7
Maximum power
100 hp
Operating weight
10.7~11.100 kg
Buckets
0.28 m3
Emission standard
Stage V
Engine
Develon D34
DX530LC-7K
Operating weight
52.900 kg
Engine
Scania DC13
Maximum power
394 HP
Emission standard
Stage V
Engine power
294 kW (394 HP) @ 1800 rpm (SAE J1995)

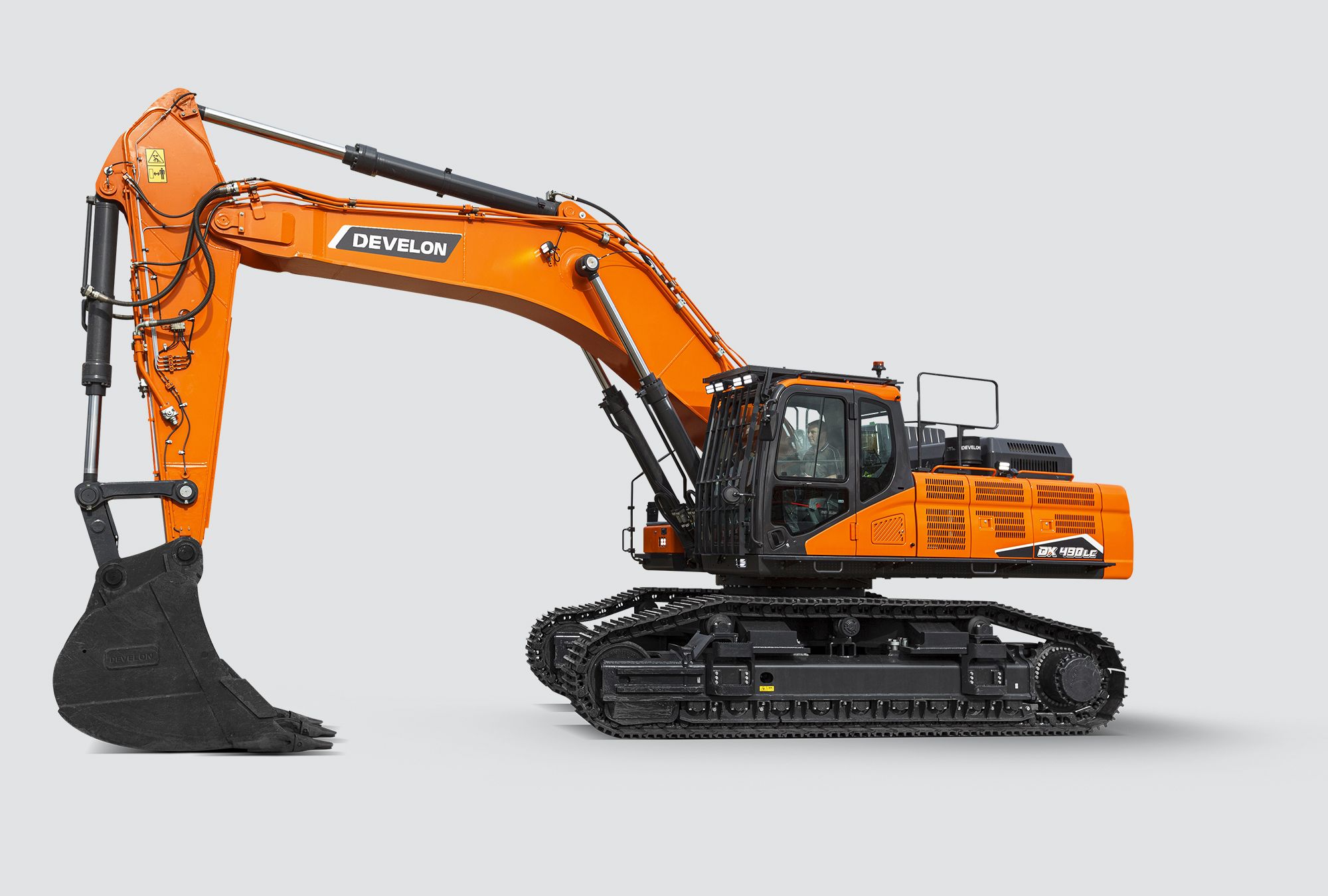

DX490LC-7K
Operating weight
50.400 kg
Engine
Scania DC13
Engine power
294 kW (394 HP) @ 1800 rpm (SAE J1995)
Main pumps max flow
2 x 390 l/m
Number of cylinders
6

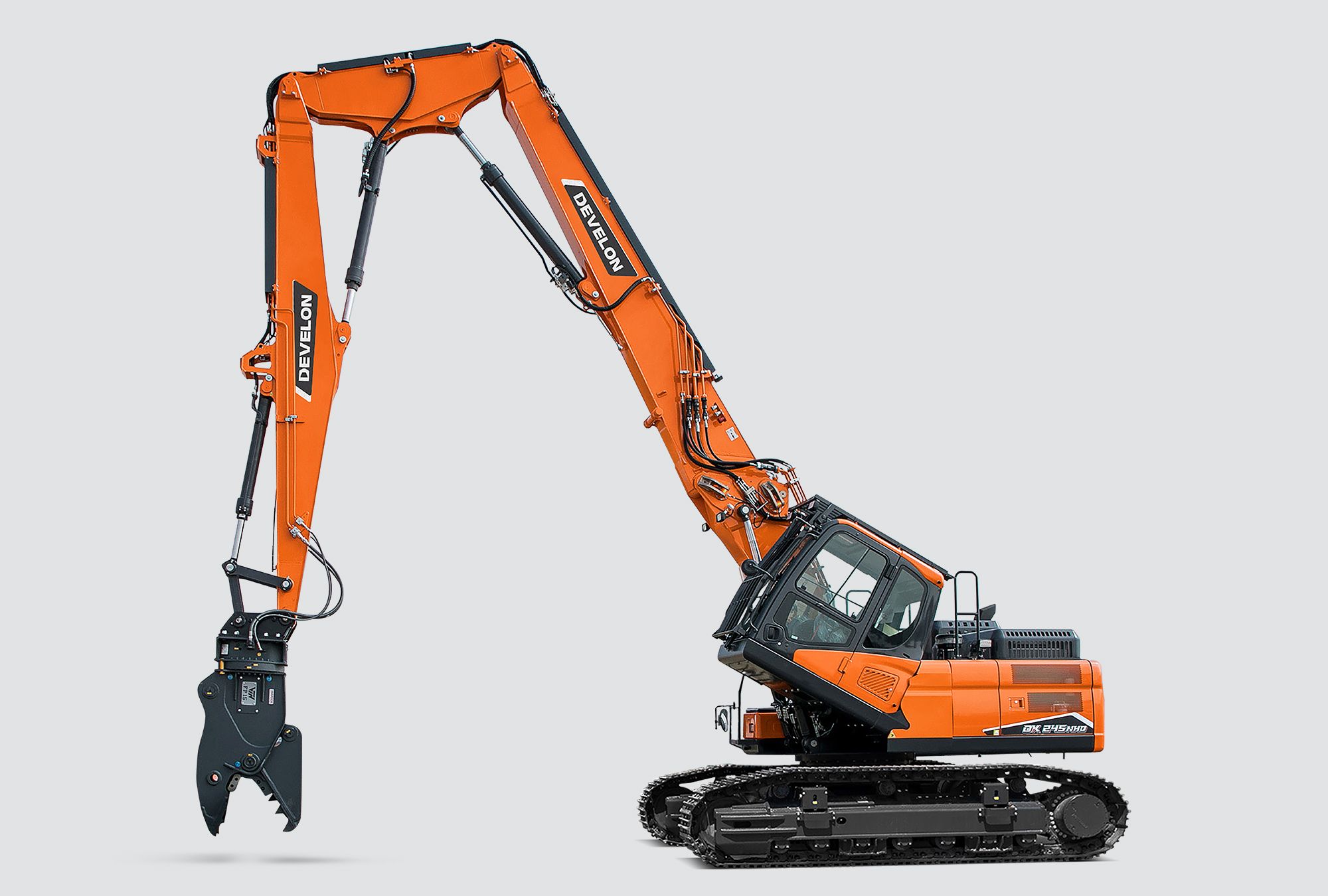

DX245DM-7
Operating weight
30800/28900 kg (Demolition Arm/Digging Arm)
Travel speed
3.0 - 5.5 km/h
Engine model
DL06P
Power (SAE J1995)
173 hp/129 kW at 1800 rpm (Demolition Arm/Digging Arm)
Pin reach
12900/ 8170 mm (Demolition Arm/Digging Arm)

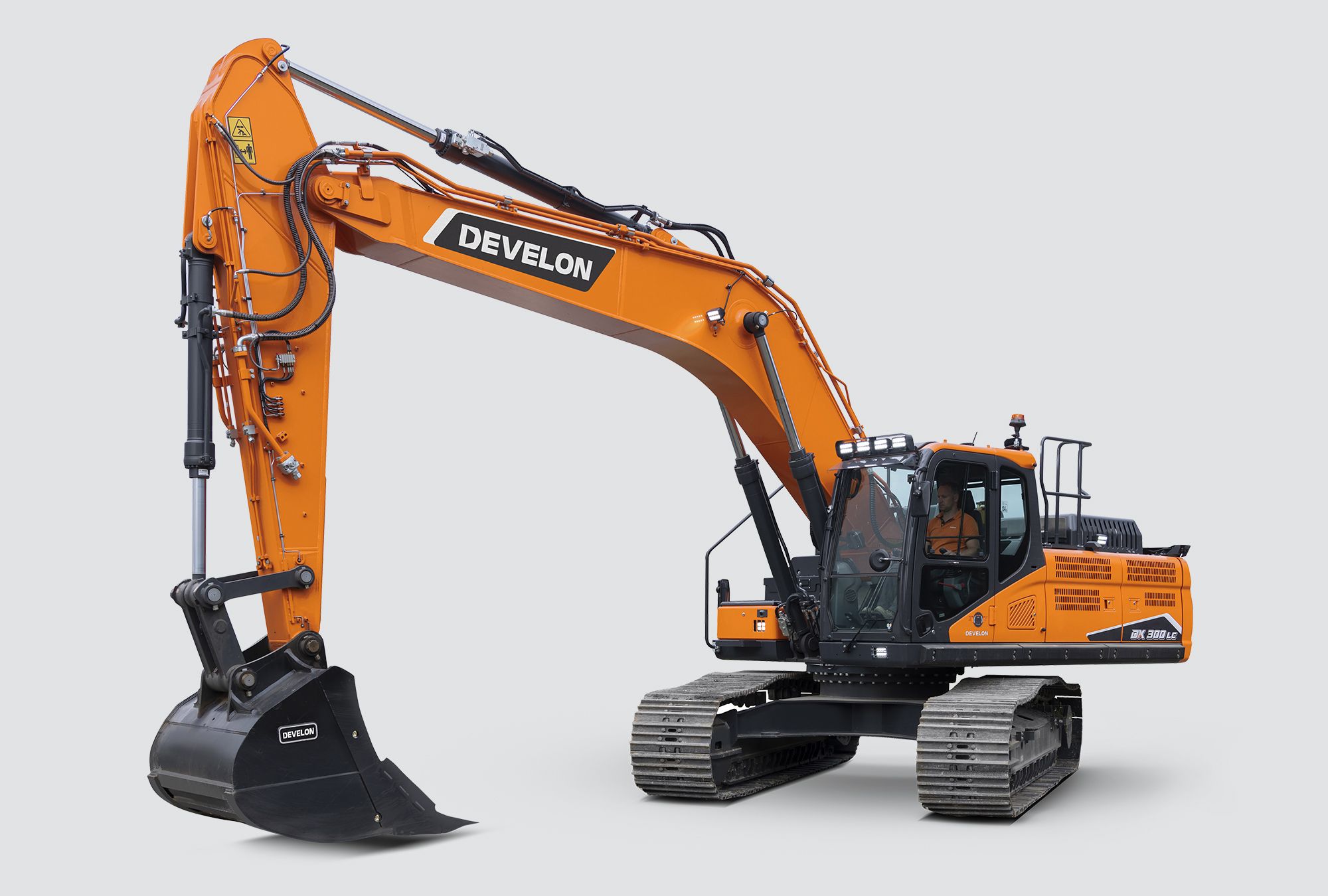

DX300LC-7K
Operating weight
31.500 kg
Engine
DL08V
Engine power
202 kW (271 HP) @ 1800 rpm (SAE J1995)
Main pumps max flow
2 x 248 l/m
Number of cylinders
6

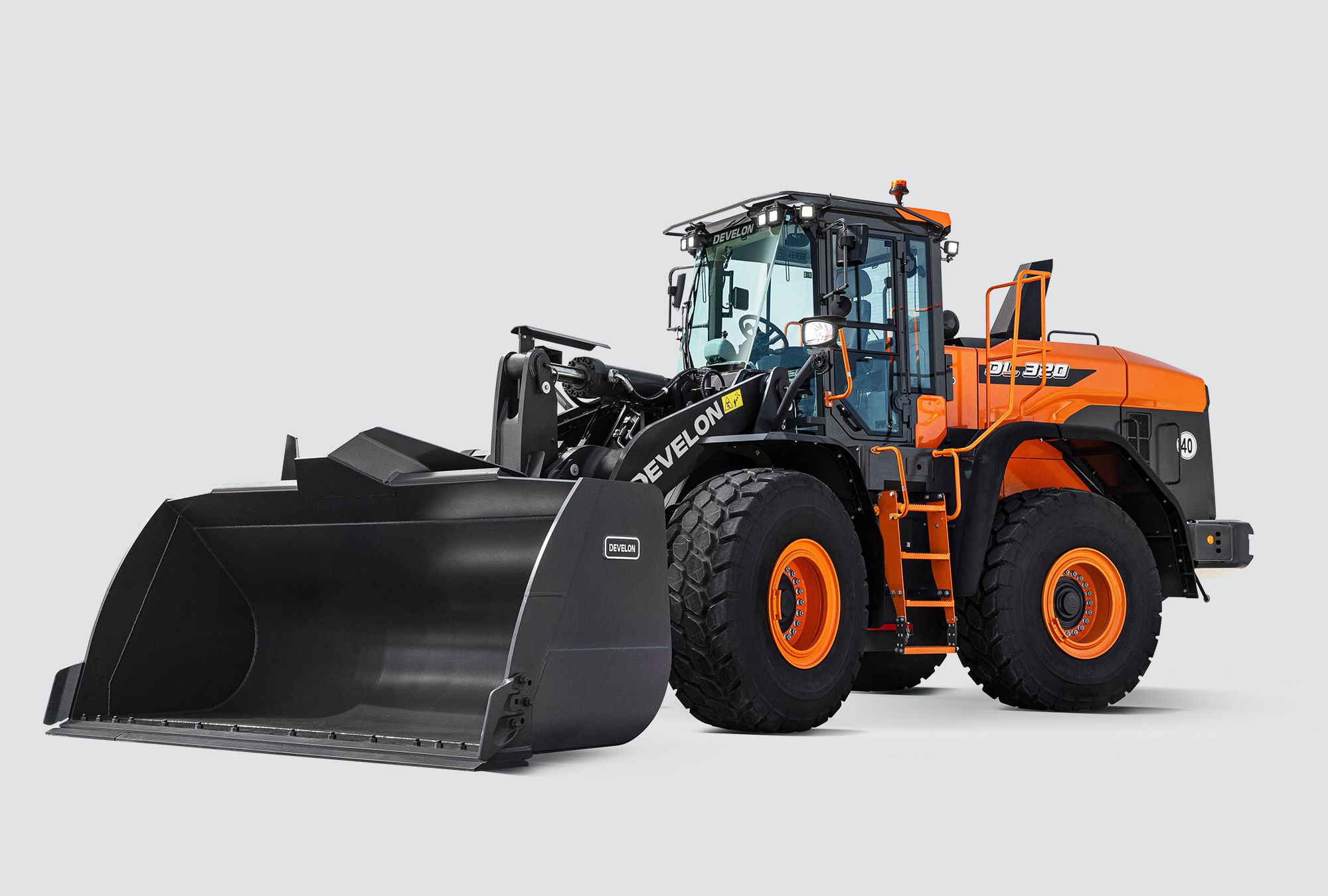

DL320-7
Bucket capacity
3.3 m³
Tipping load
15.948 kg
Static tipping load, at 40°
14.079 kg
Length with bucket
8.530 mm
Width with bucket
3.000 mm

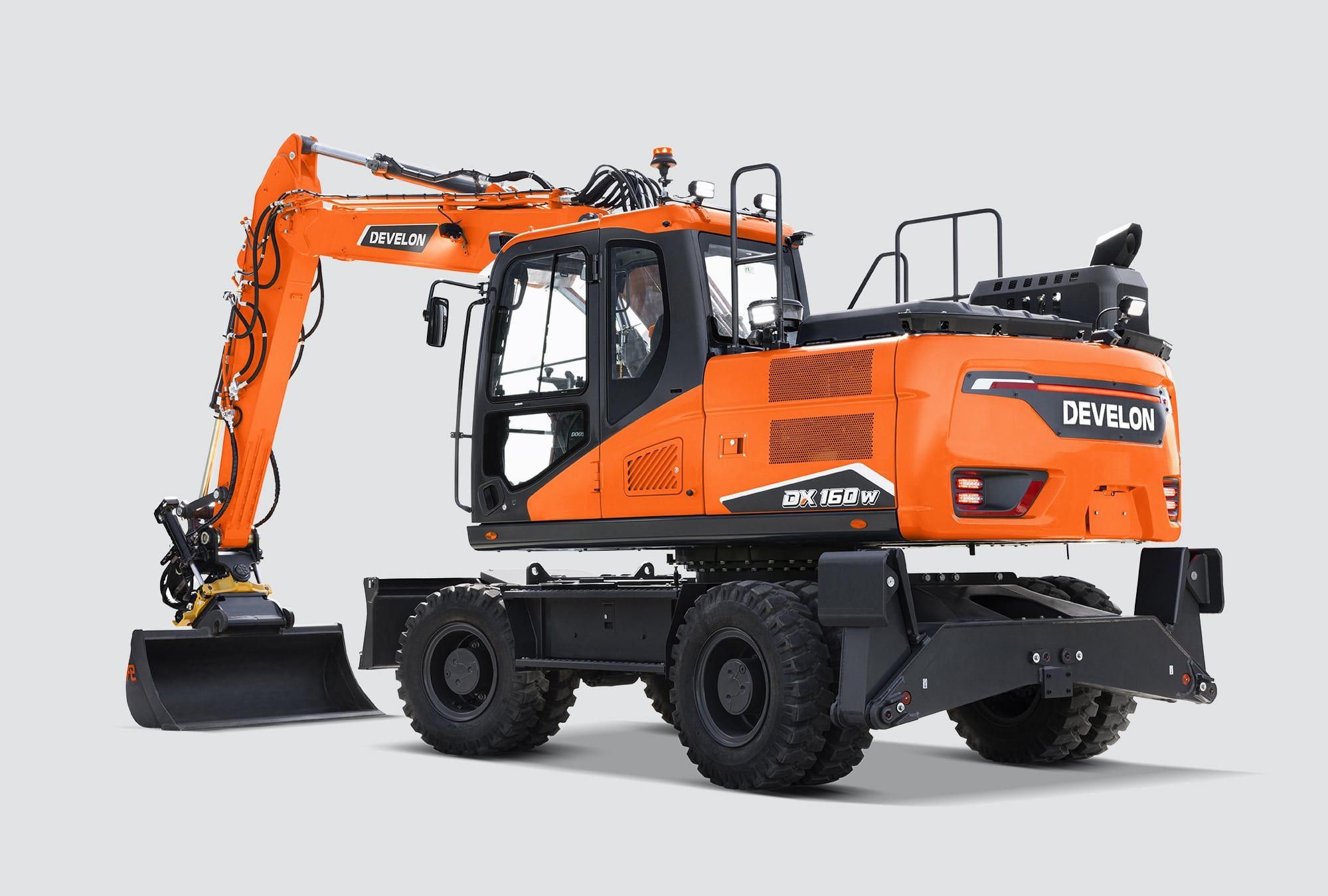

DX160W-7
Maximum power
137 HP
Operating weight
17.000 kg
Buckets
0.59 m³
Emission standard
Stage V
Engine
Develon DL06V

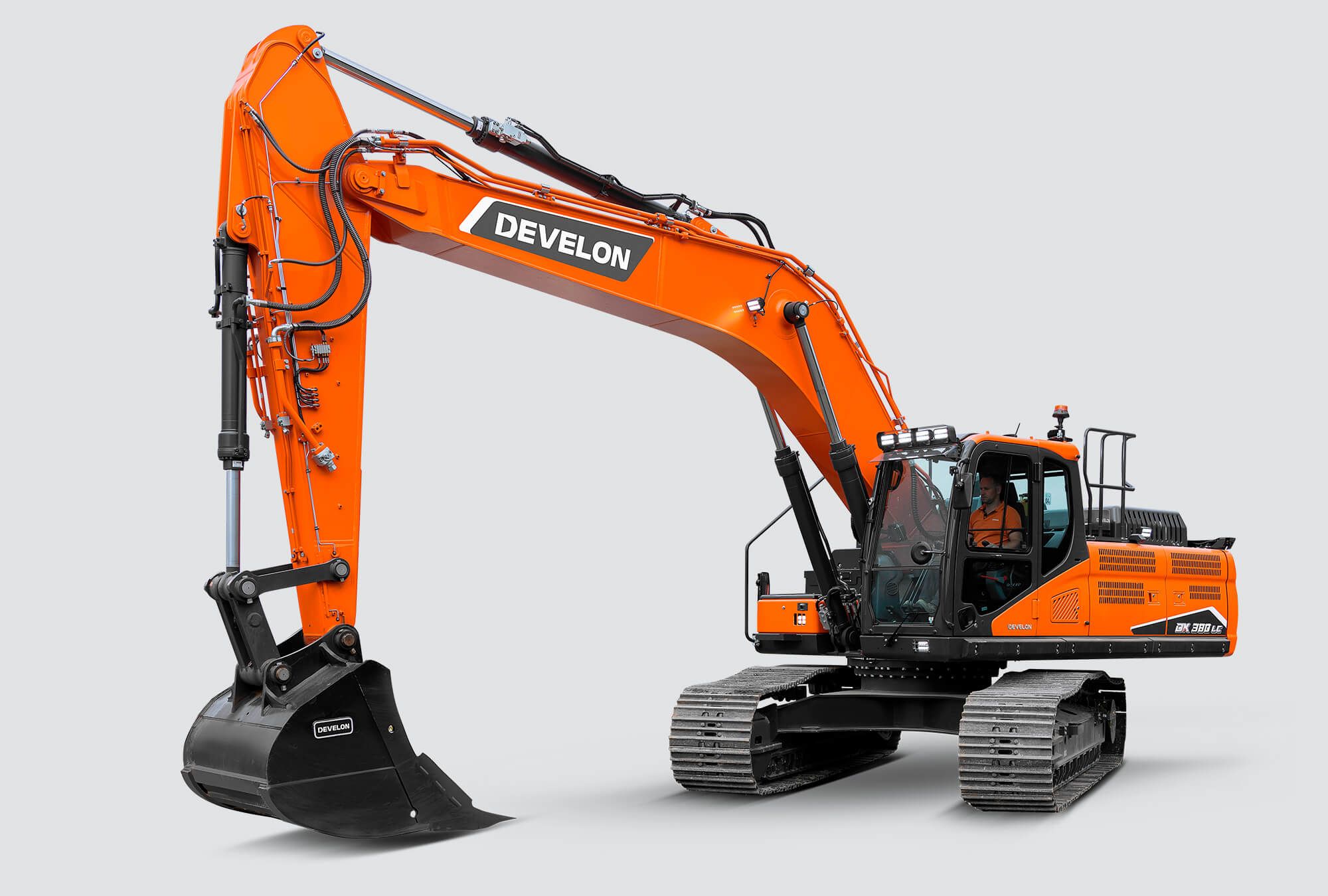

DX380LC-7K
Operating weight
40.200 kg
Engine
Scania DC09
Engine power
240 kW (326 HP) @ 1800 rpm (SAE J1995)
Main pumps max flow
2 x 350 l/m
Number of cylinders
5

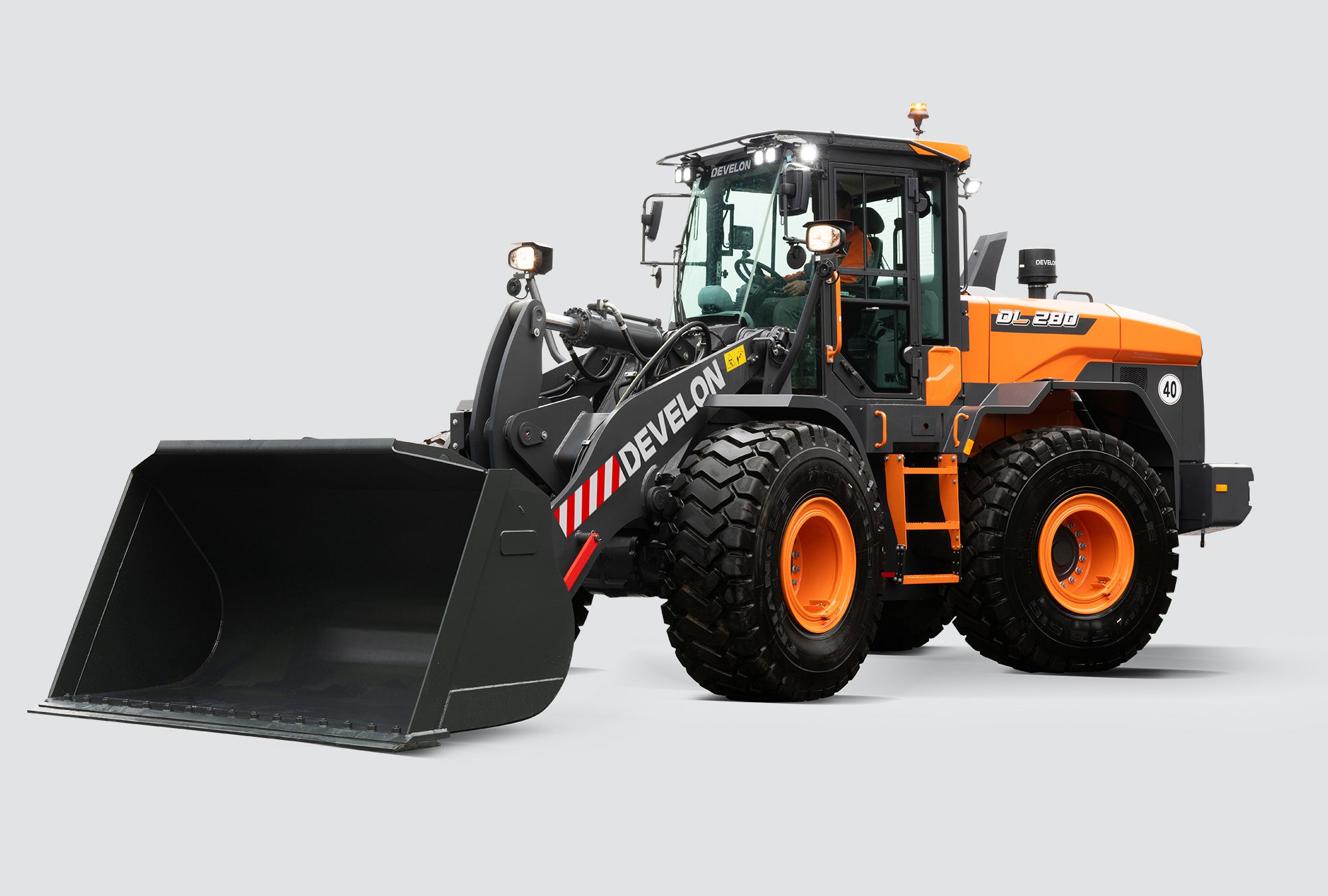

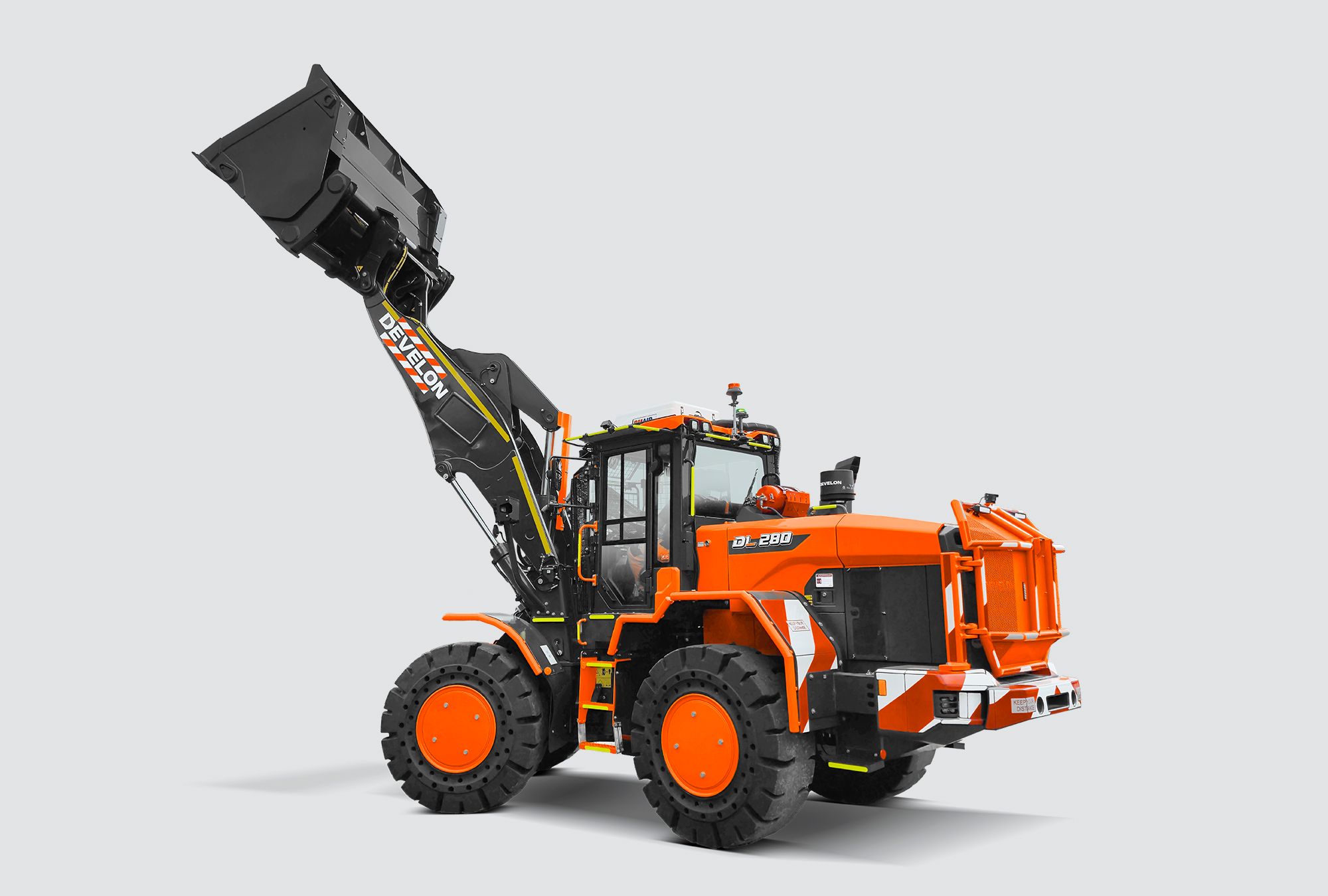

DL280-7
Bucket capacity
2.8 m³
Tipping load
12.303 kg
Static tipping load, at 40°
10.822 kg
Length with bucket
7.804 mm
Width with bucket
2550 mm

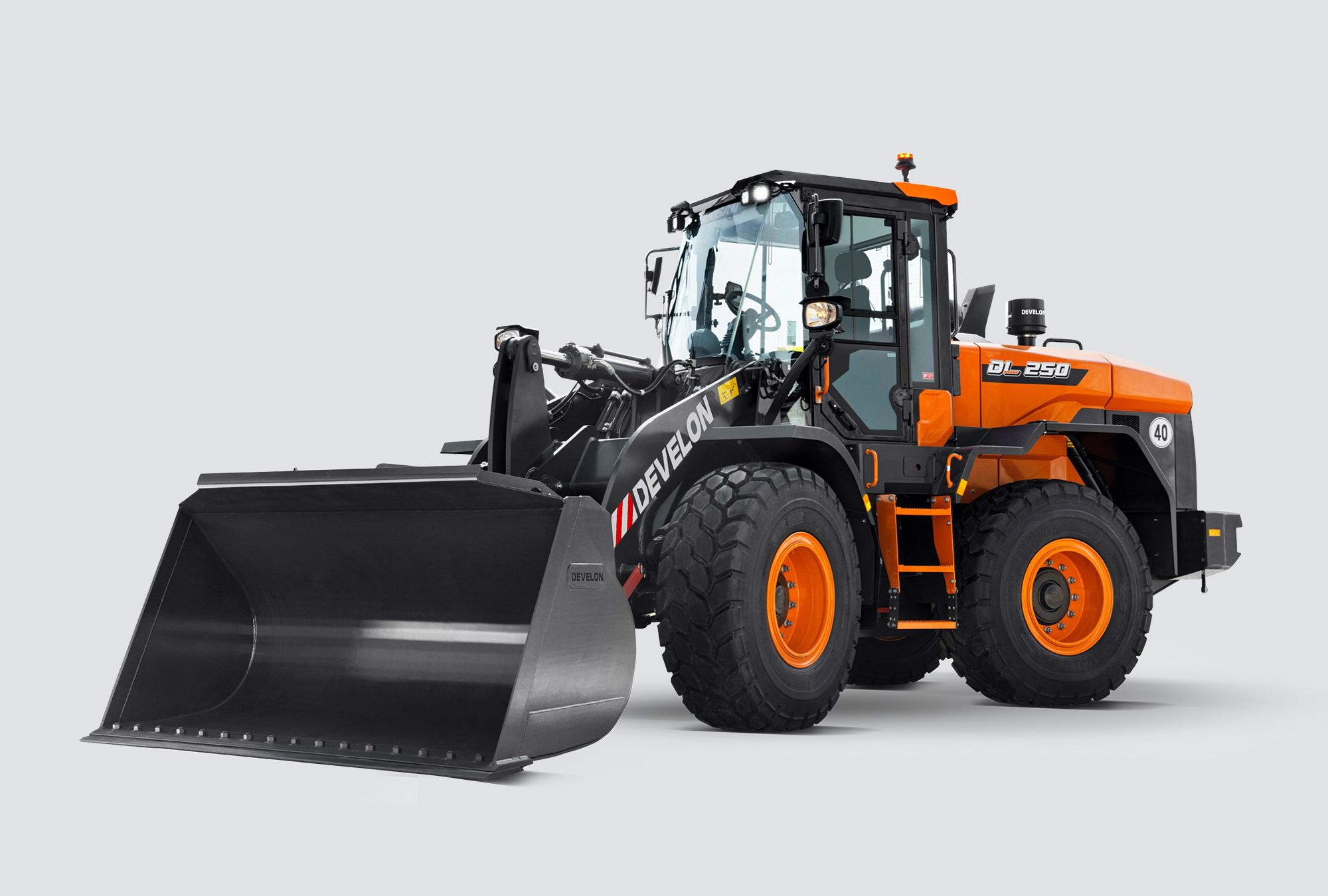

DL250-7
Bucket capacity
2.5 m³
Tipping load
11.015 kg
Static tipping load, at 40°
9.809 kg
Length with bucket
7.887 mm
Width with bucket
2.539 mm
DX140W-7
Maximum power
137 hp
Operating weight
15.800 kg
Buckets
0.59 m³
Emission standard
Stage V
Engine
Develon DL06V

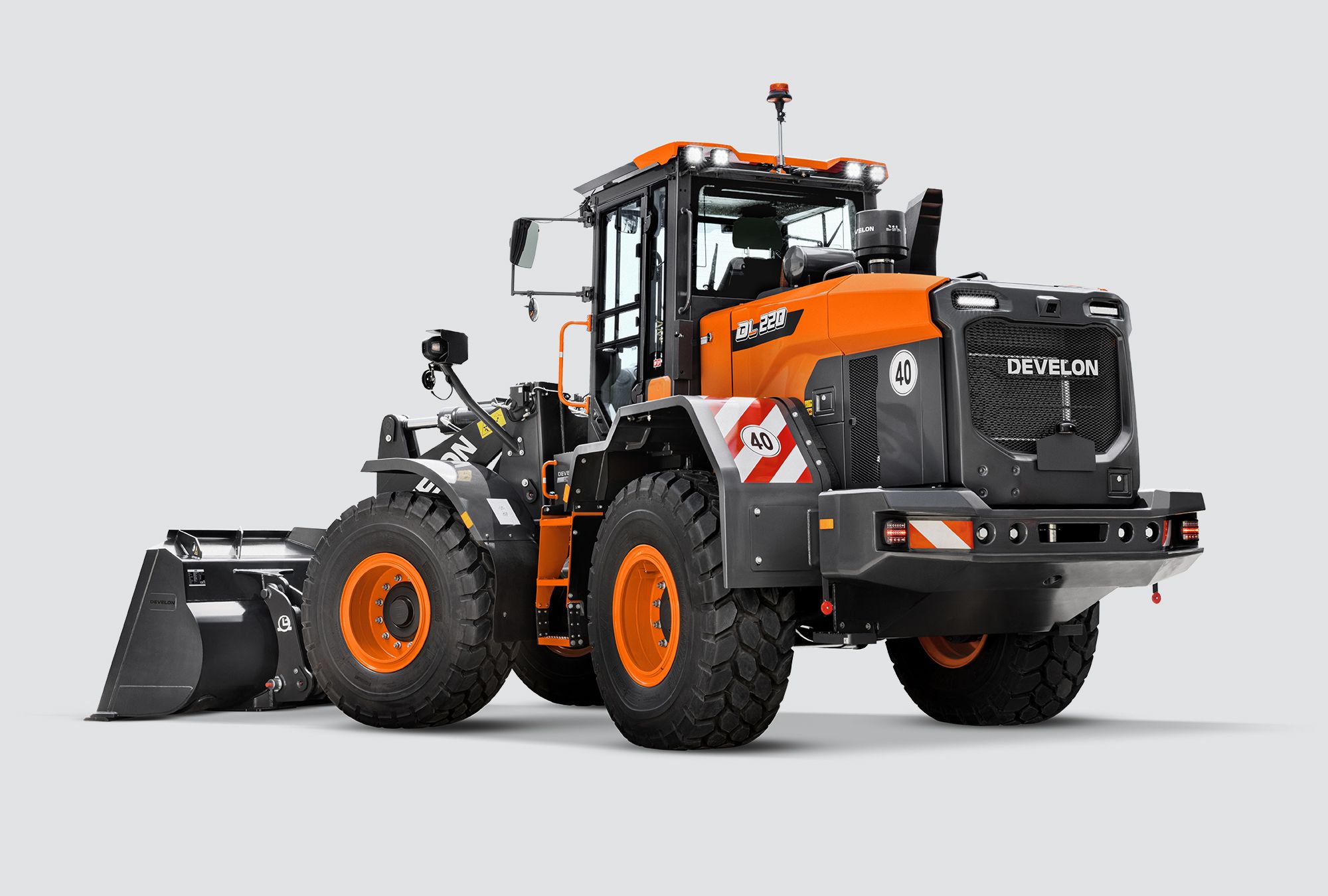

DL220-7
Bucket capacity
2.3 m³
Tipping load
10.652 kg
Static tipping load, at 40°
9.383 kg
Length with bucket
7.458 mm
Width with bucket
2.539 mm

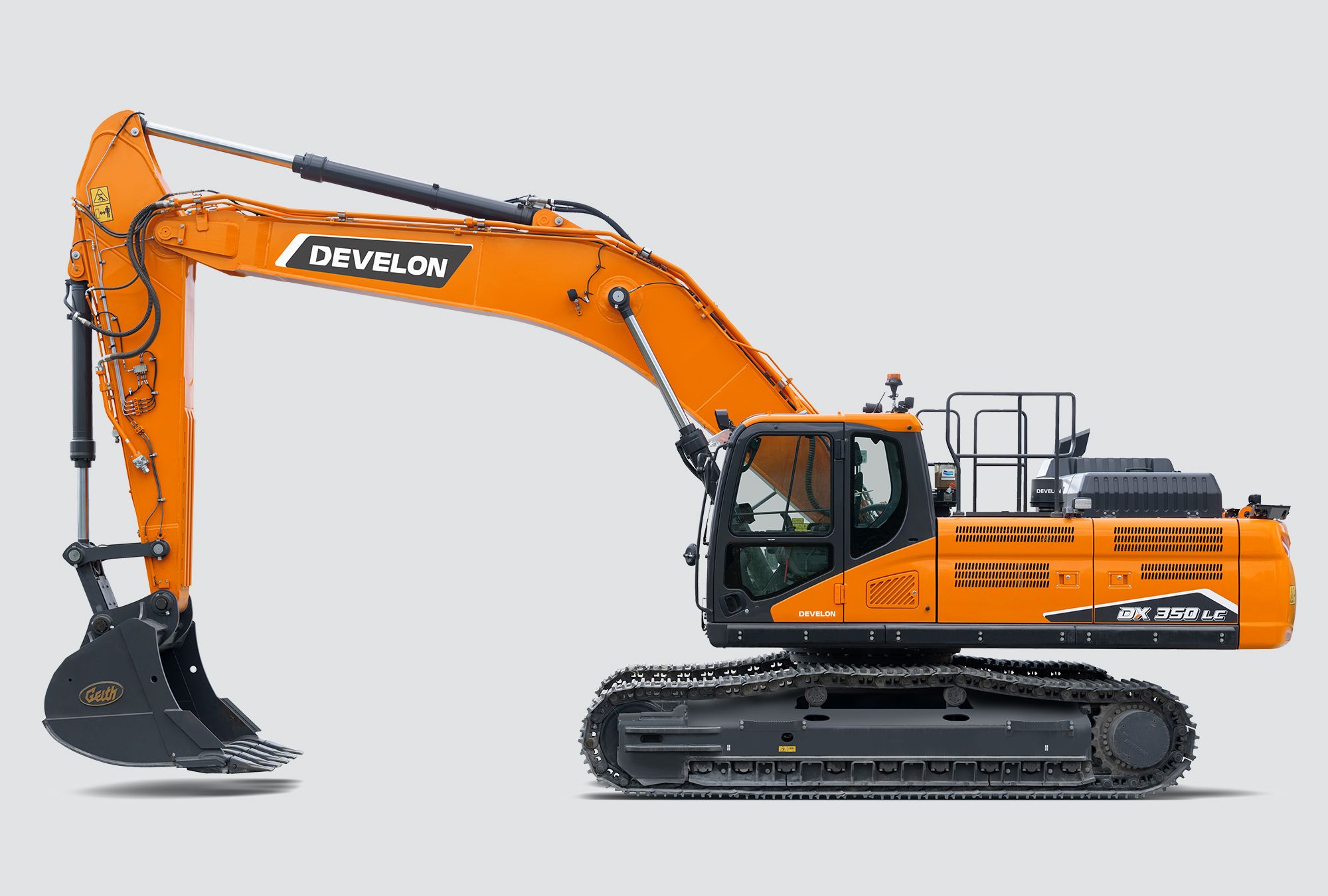

DX350LC-7K
Operating weight
36.100 kg
Engine
DL08V
Engine power
213 kW (290 HP) @ 1800 rpm (SAE J1995)
Main pumps max flow
2 x 350 l/m
Number of cylinders
6

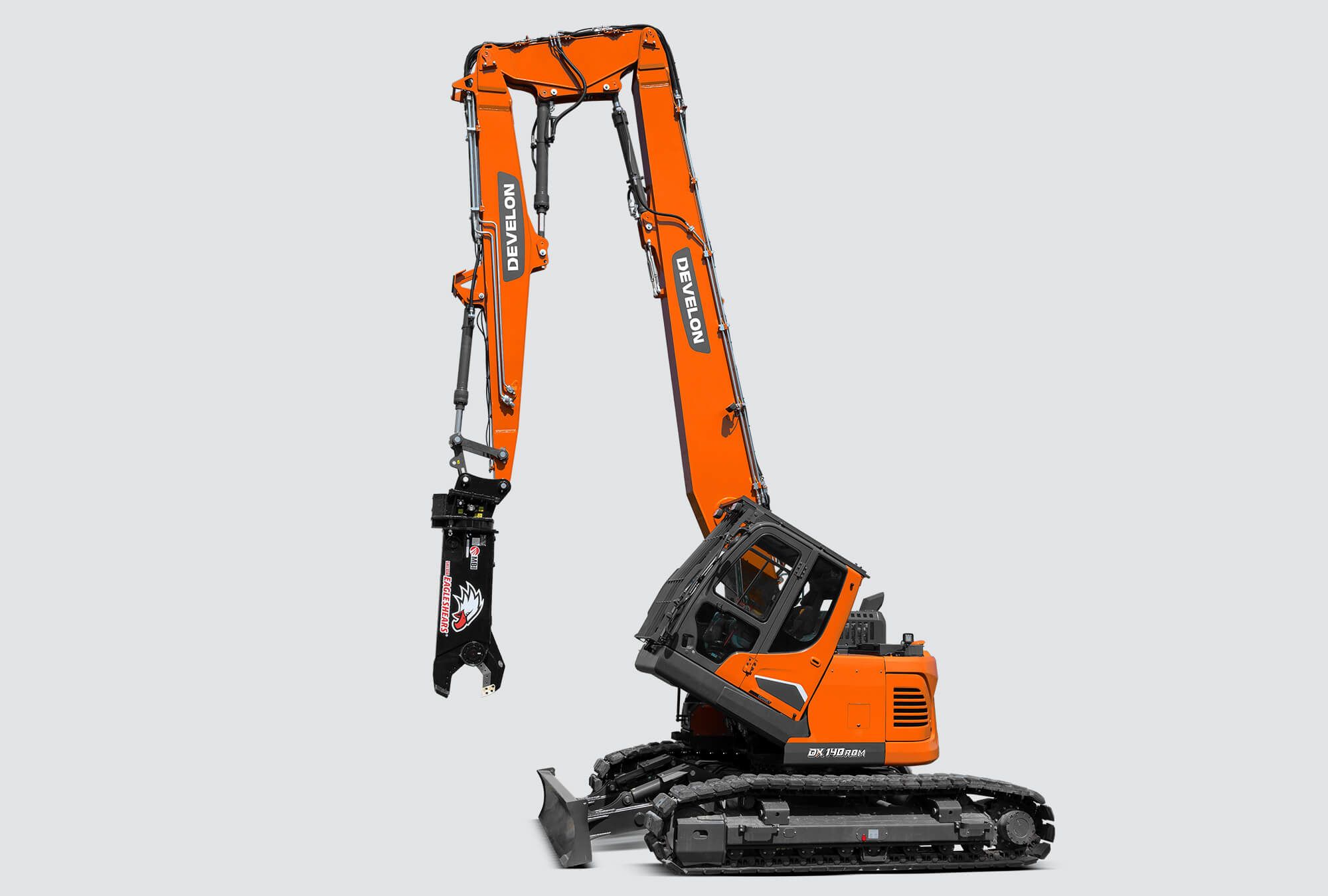

DX140RDM-7
Operating weight
22500/22300 kg (Monolithic/Interchangeable)
Travel speed
2,9 - 4,7 km/h
Engine model
Develon G2 D34
Power (SAE J1995)
115 hp/86 kW at 2000 rpm
Pin reach
10700/ - mm (Monolithic/Interchangeable)

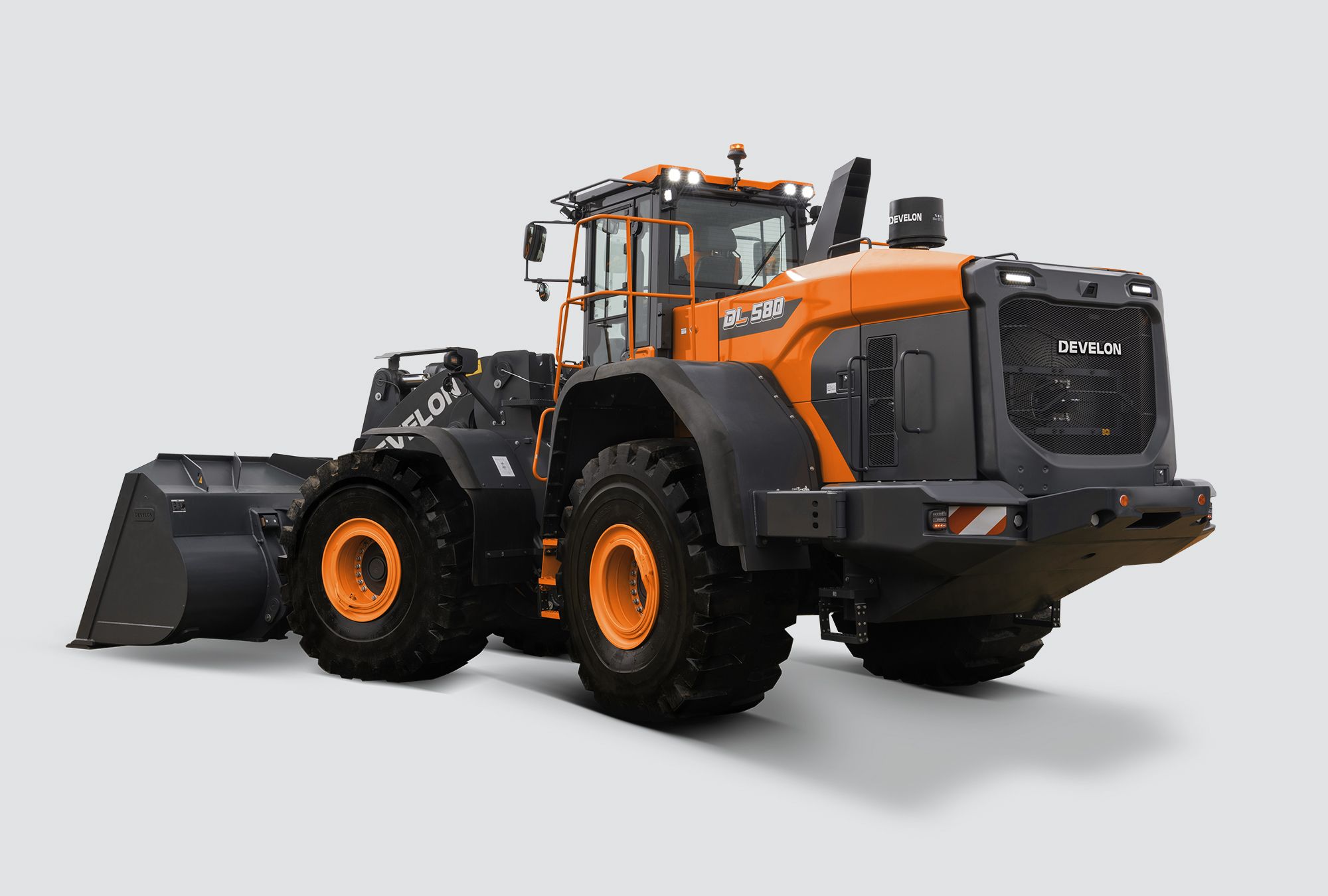

DL580-7
Bucket capacity
6.4 m³
Tipping load
27.174 kg
Static tipping load, at 40°
24.138 kg
Length with bucket
10.012 mm
Width with bucket
3.400 mm

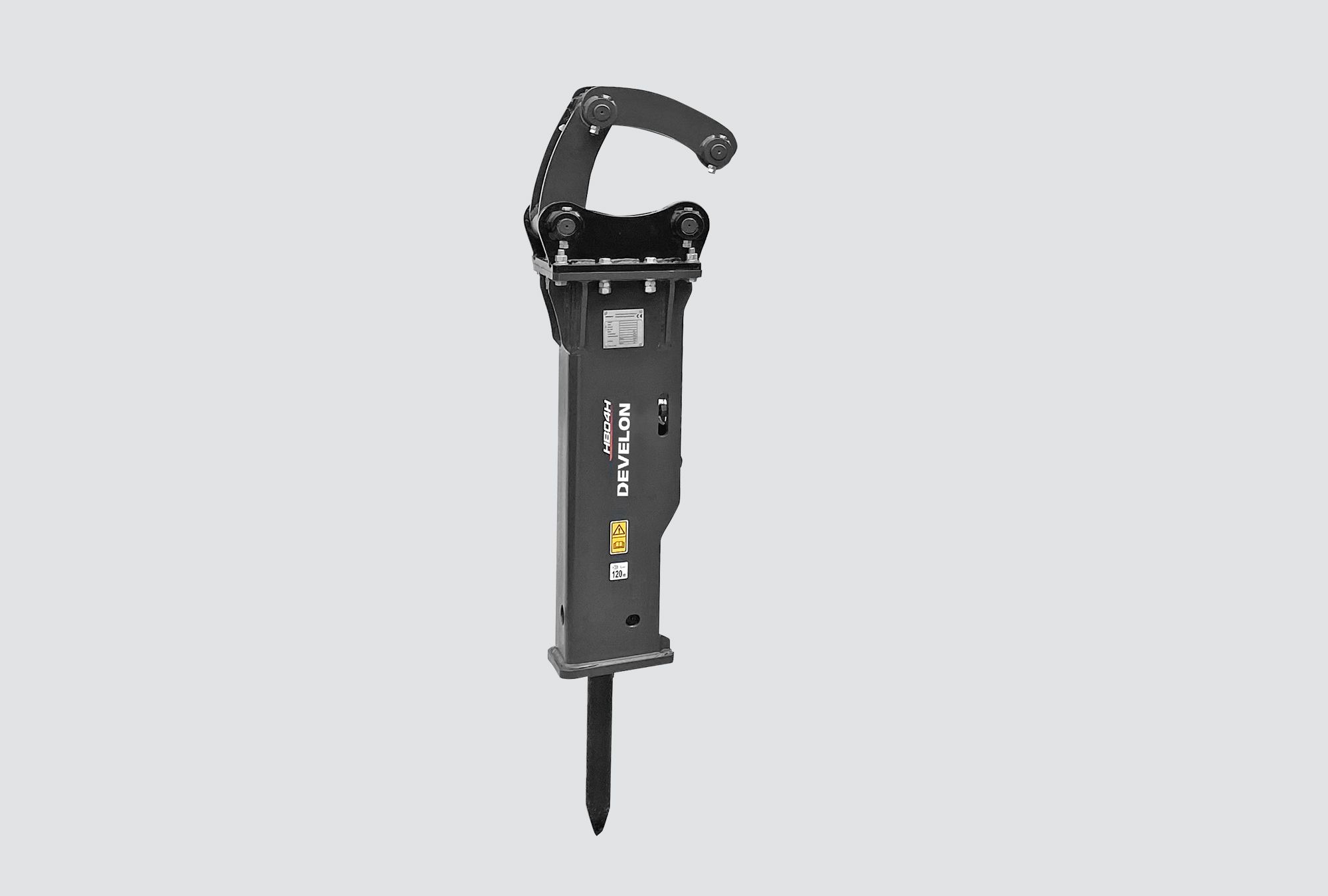

HYDRAULIC BREAKERS - HB SERIES
Lenght
1006mm - 2762mm
Operating Pressure
88 bar - 177 bar
Hydraulic Flow Range
15 l/min - 240 l/min

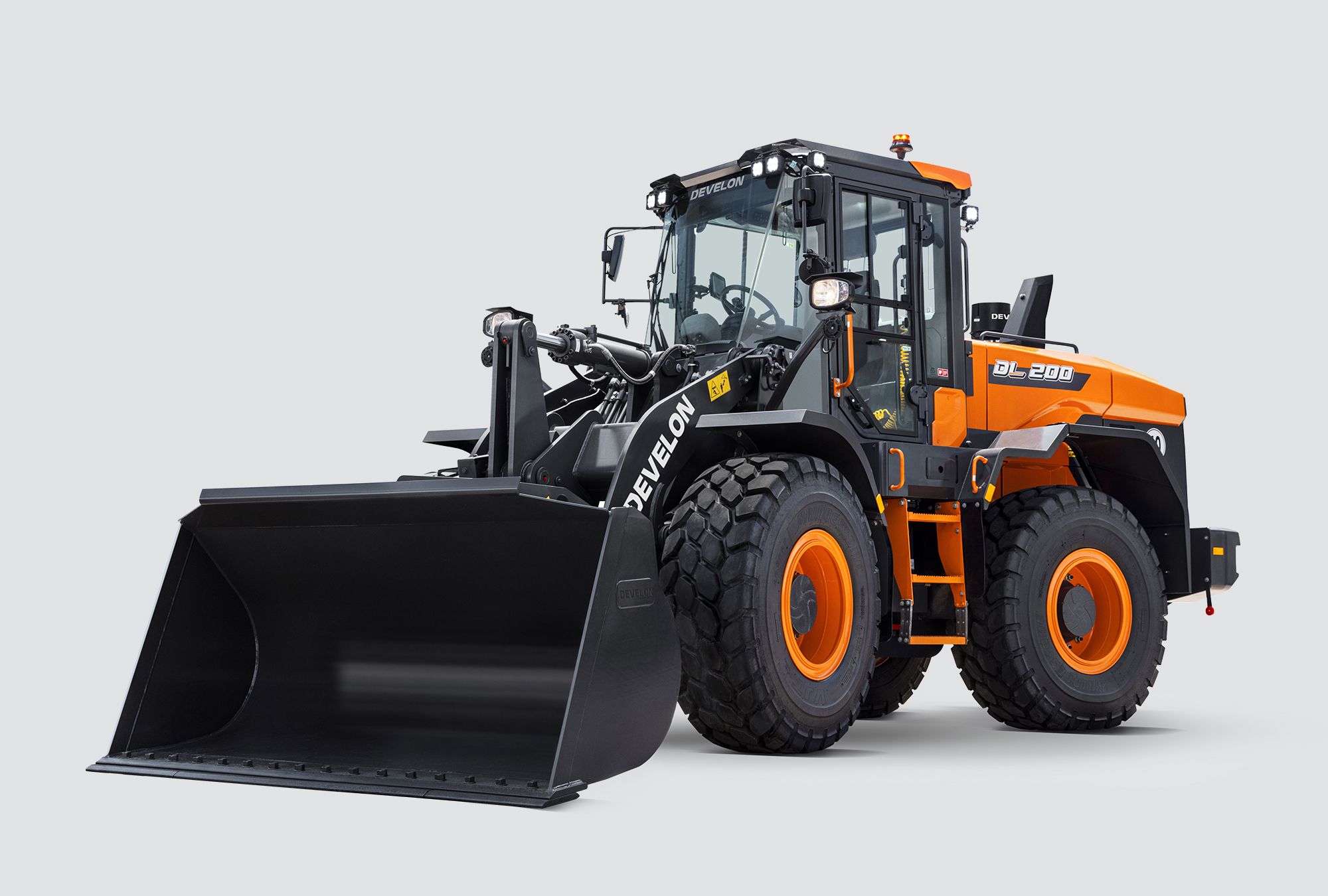

DL200-7
Bucket capacity
2.0 m³
Tipping load
10.124 kg
Static tipping load, at 40°
8.933 kg
Length with bucket
7.208 mm
Width with bucket
2.539 mm

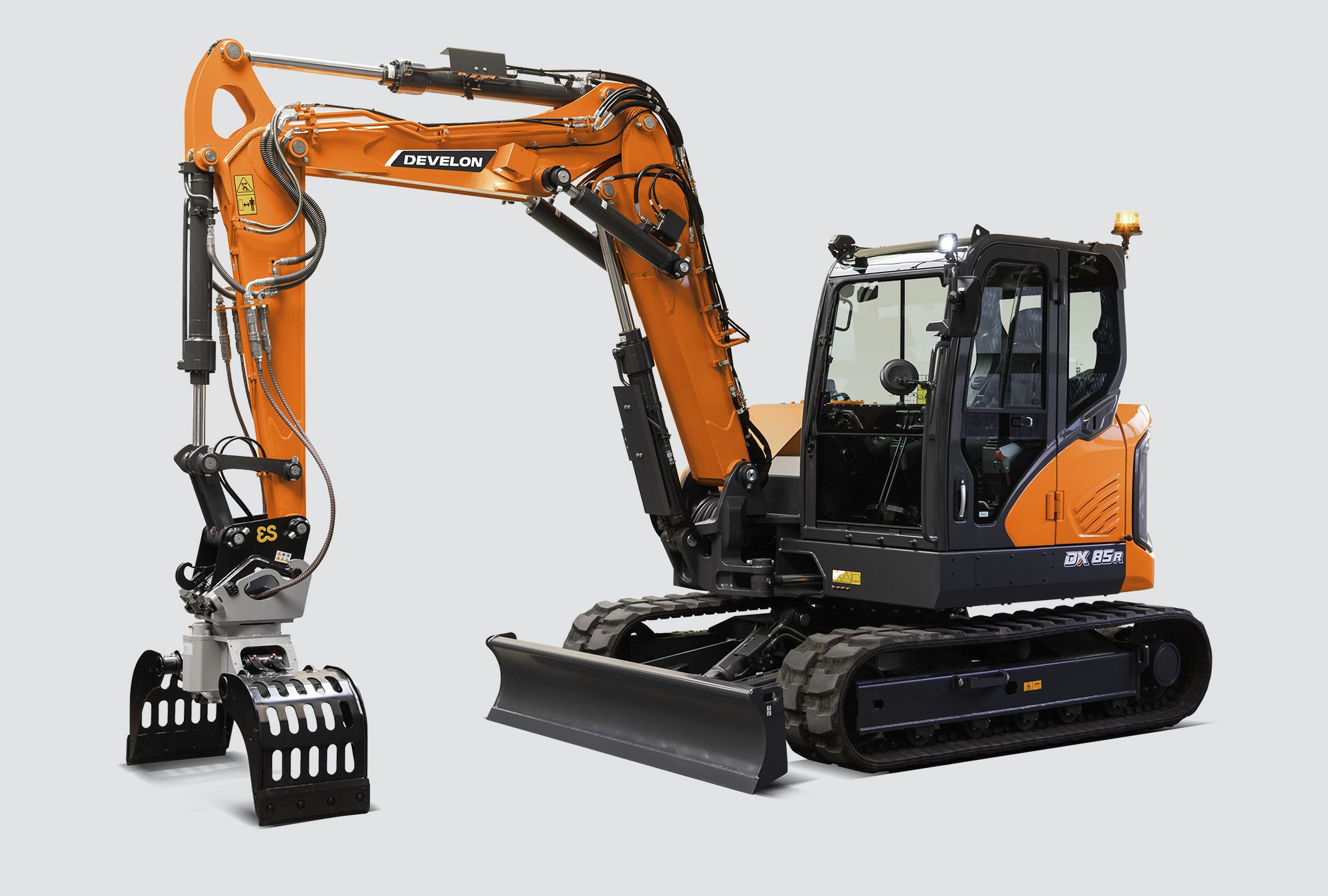

DX85R-7
Engine power
48.5 kW (65 hp) @ 2100 rpm
Operating weight
9528 kg
Bucket capacity
0.28 m3
Standard arm
1700 mm
Long arm
2250 mm

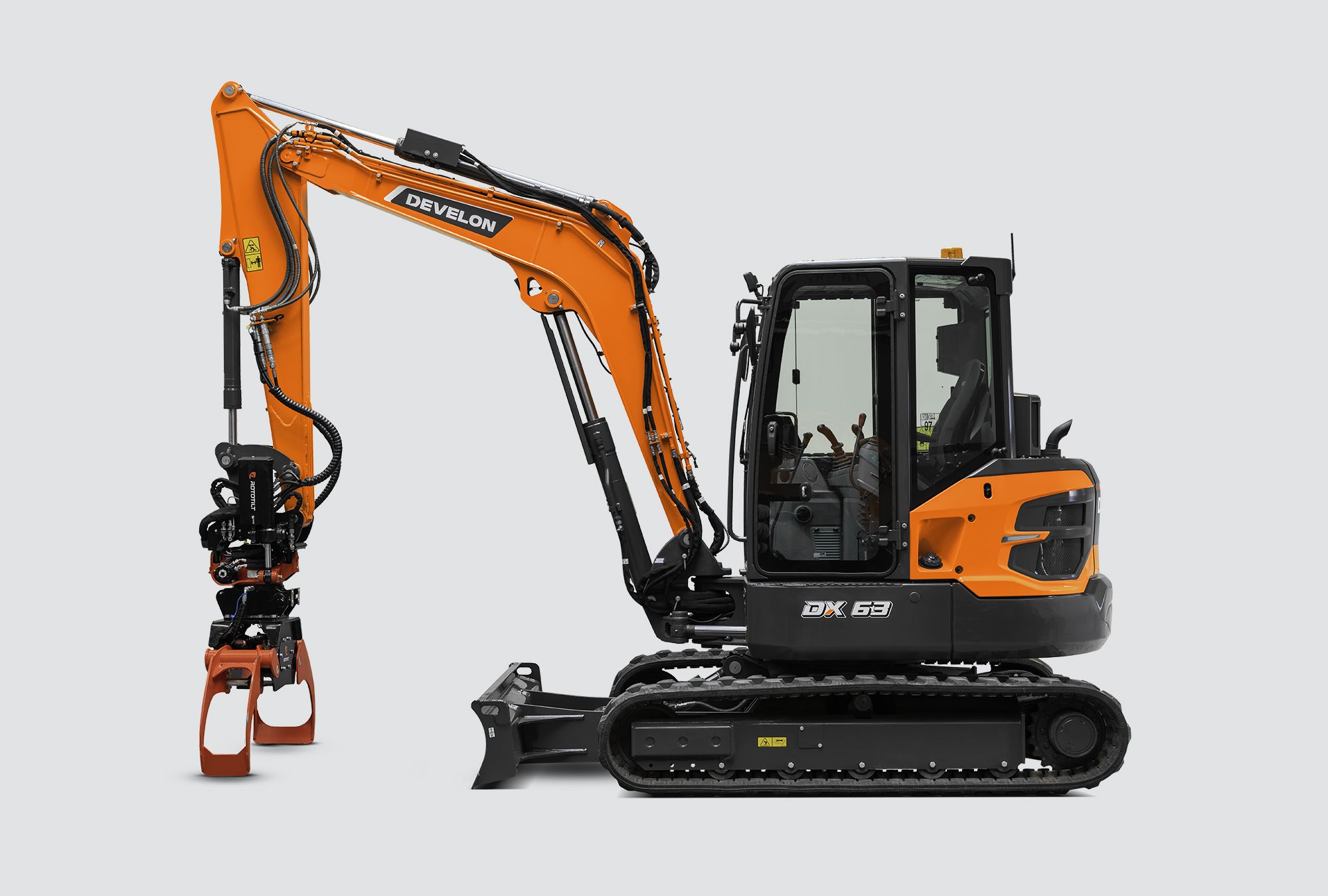

DX63-7
Operating weight
6218 kg
Engine
Develon D24
Engine power
44.3 kW (65 hp)
Travel Speed
2.8 - 4.7 km/h
Width
1980 mm

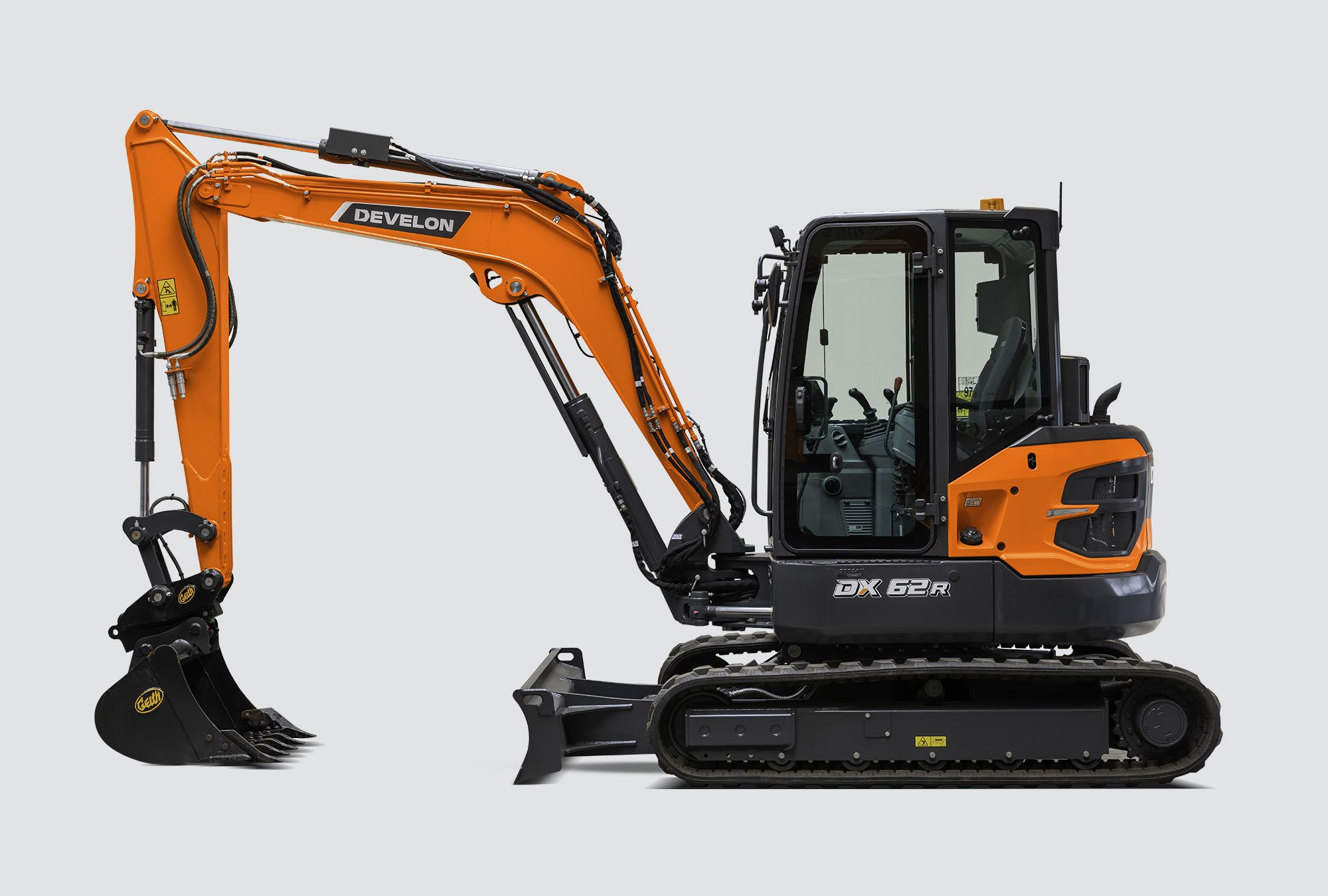

DX62R-7
Operating weight
6216 kg
Engine power
44.3 kW (65 hp)
Width
1980 mm
Max. reach ground level (standard/long arm)
6175/6485 mm
Max. digging depth (std / long arm)
3795/ 4095 mm

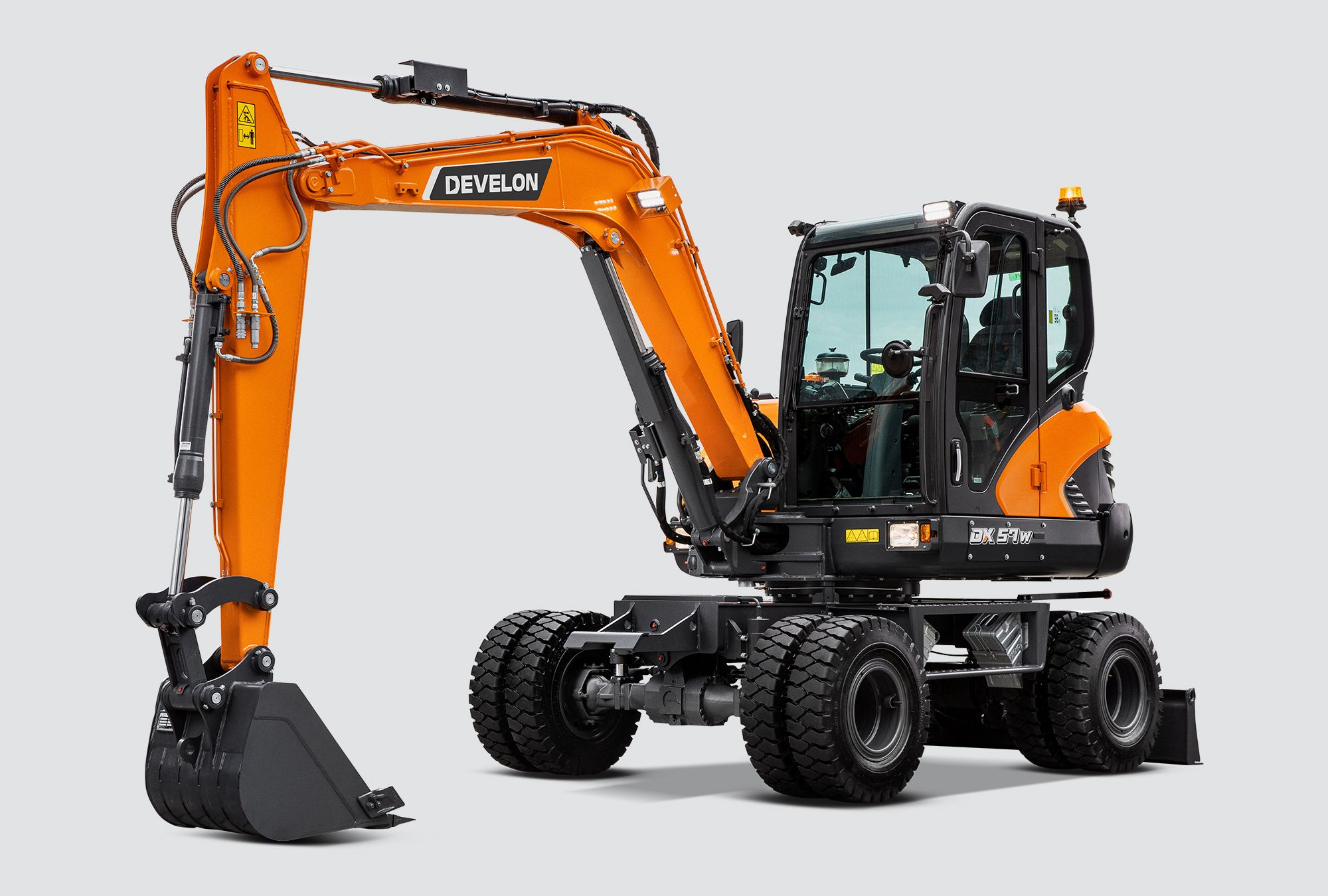

DX57W-7
Operating weight
5.800 kg
Bucket capacity
0.175 m3
Engine power
42.5 kW (52.3 hp) @ 2400 rpm
Engine
Develon D24 (SAE J1349)
Width
2290 mm

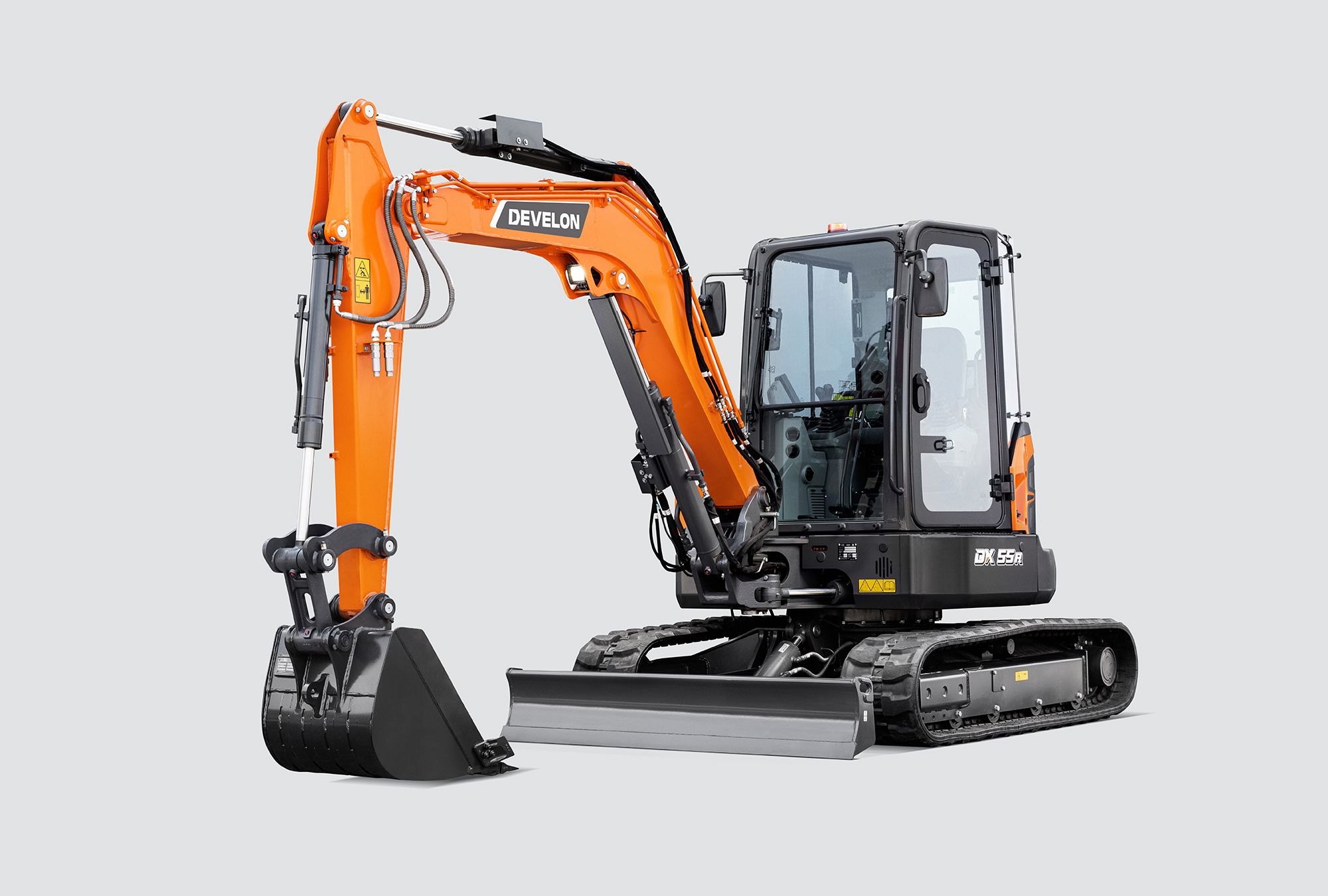

DX55R-7
Operating weight
5740 kg
Bucket capacity
0.16 m3
Emission standard
Stage V
Engine
Develon D18
Engine power
36.4 kW / 48.8 hp at 2000 rpm

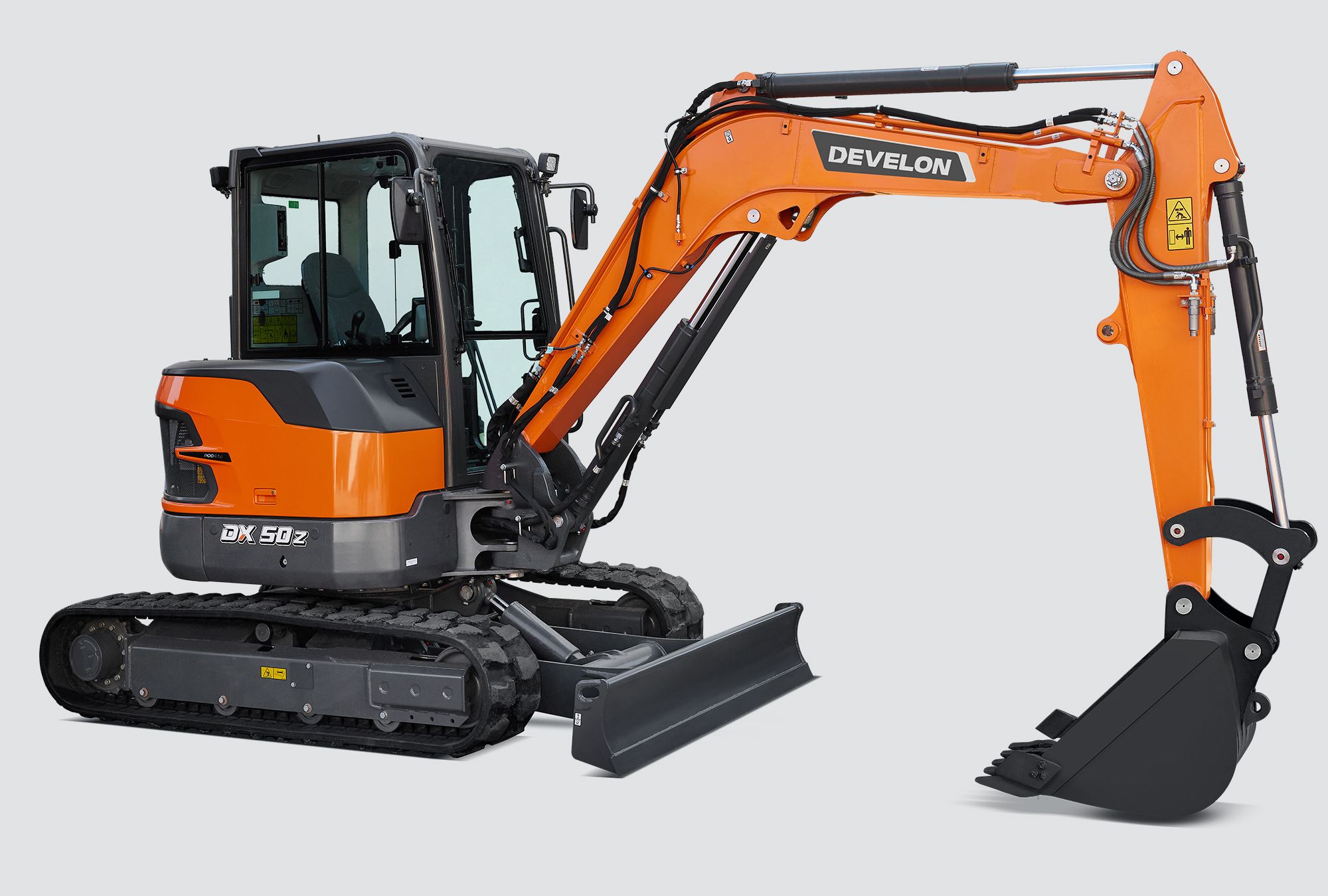

DX50Z-7
Operating weight
5438 kg
Bucket capacity
0.16 m3
Emission standard
Stage V
Engine
Develon D18
Engine power
36.4 kW / 48.8 hp at 2000 rpm

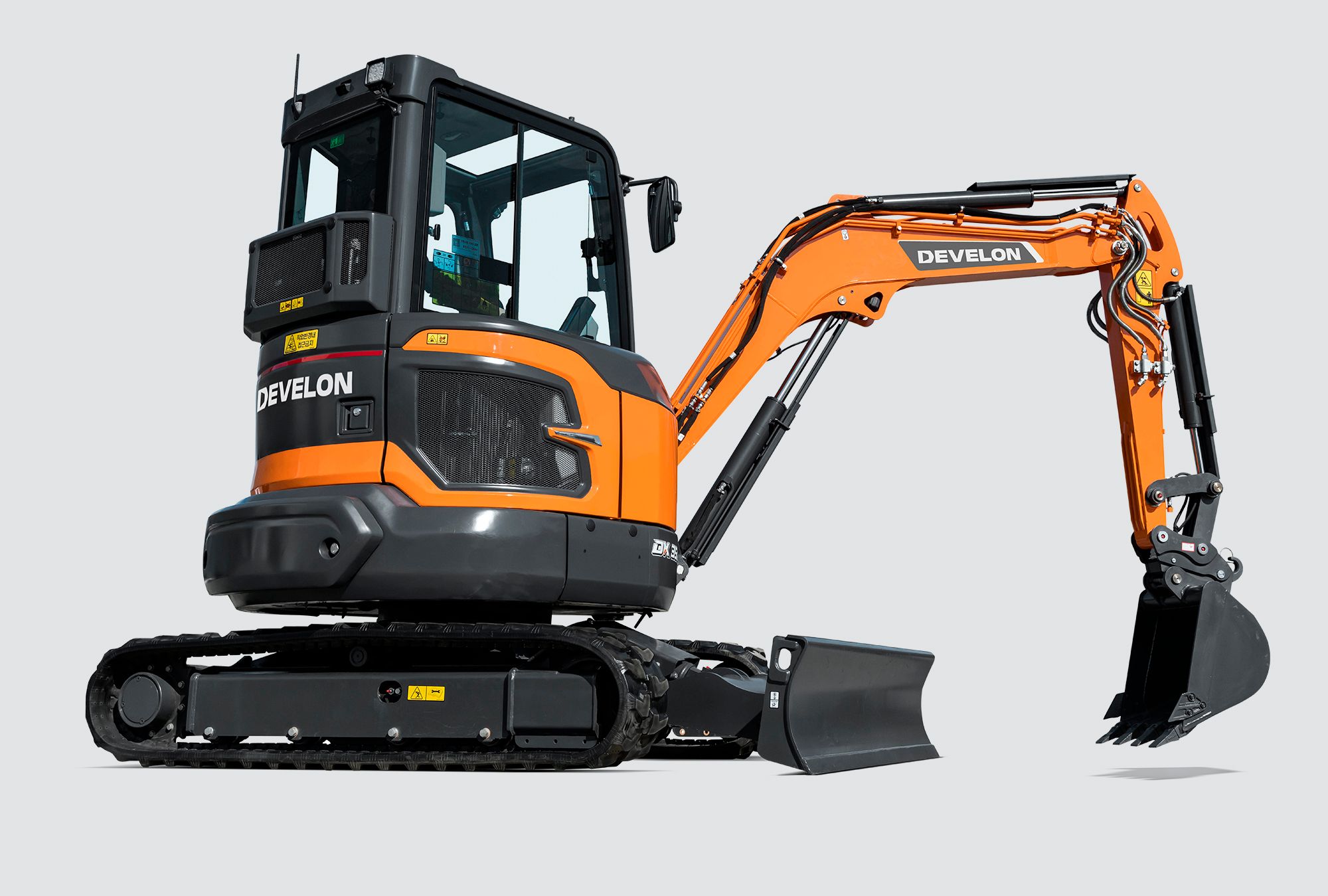

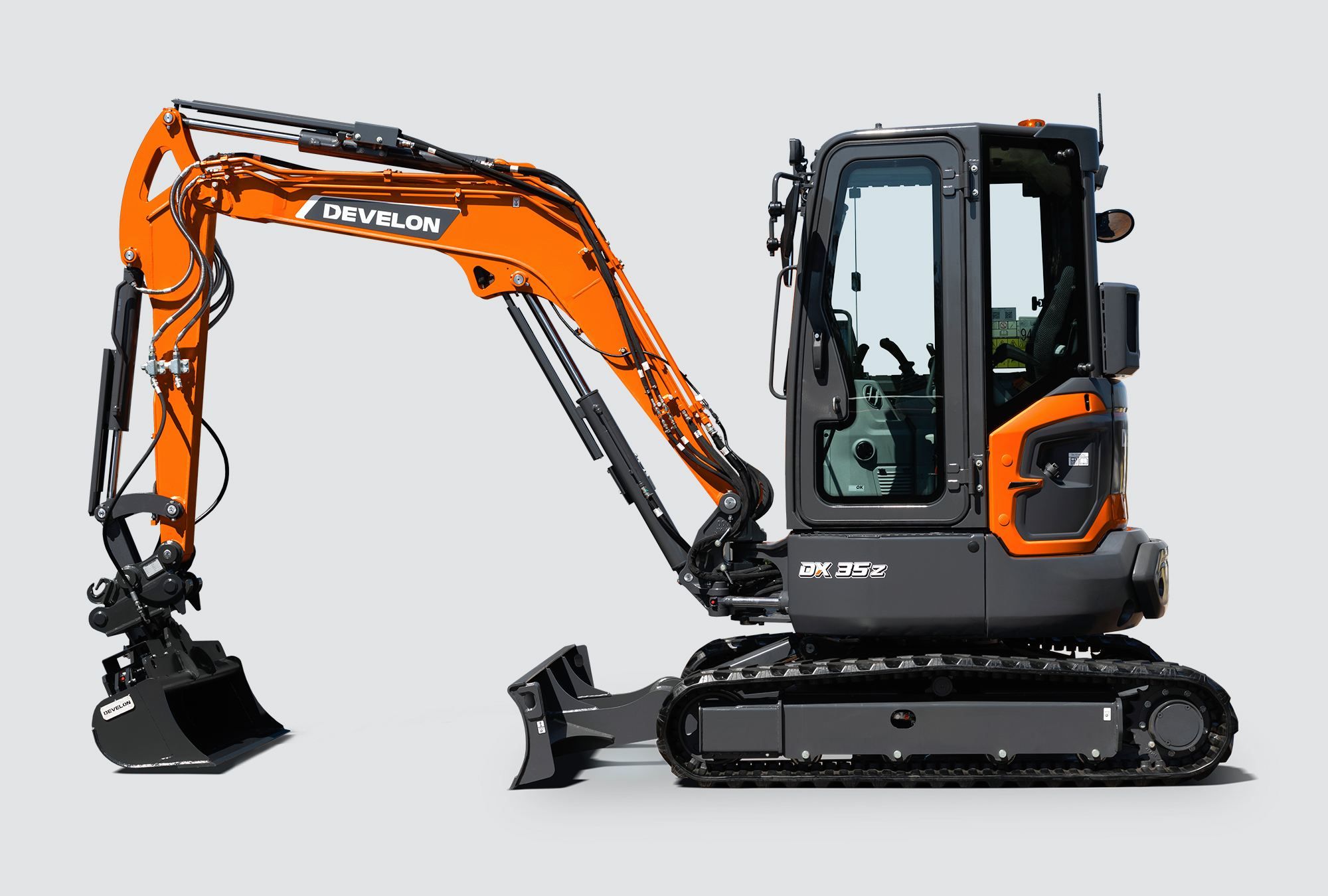

DX35Z-7
Operating weight
3 995 kg
Nominal flywheel power
18.2 kW / 2.200 RPM
Max. reach ground level (standard/long arm)
5235 / 5400 mm
Max. dumping height (standard / long arm)
3340 / 3521 mm
Digging force - bucket
33.43 kN
