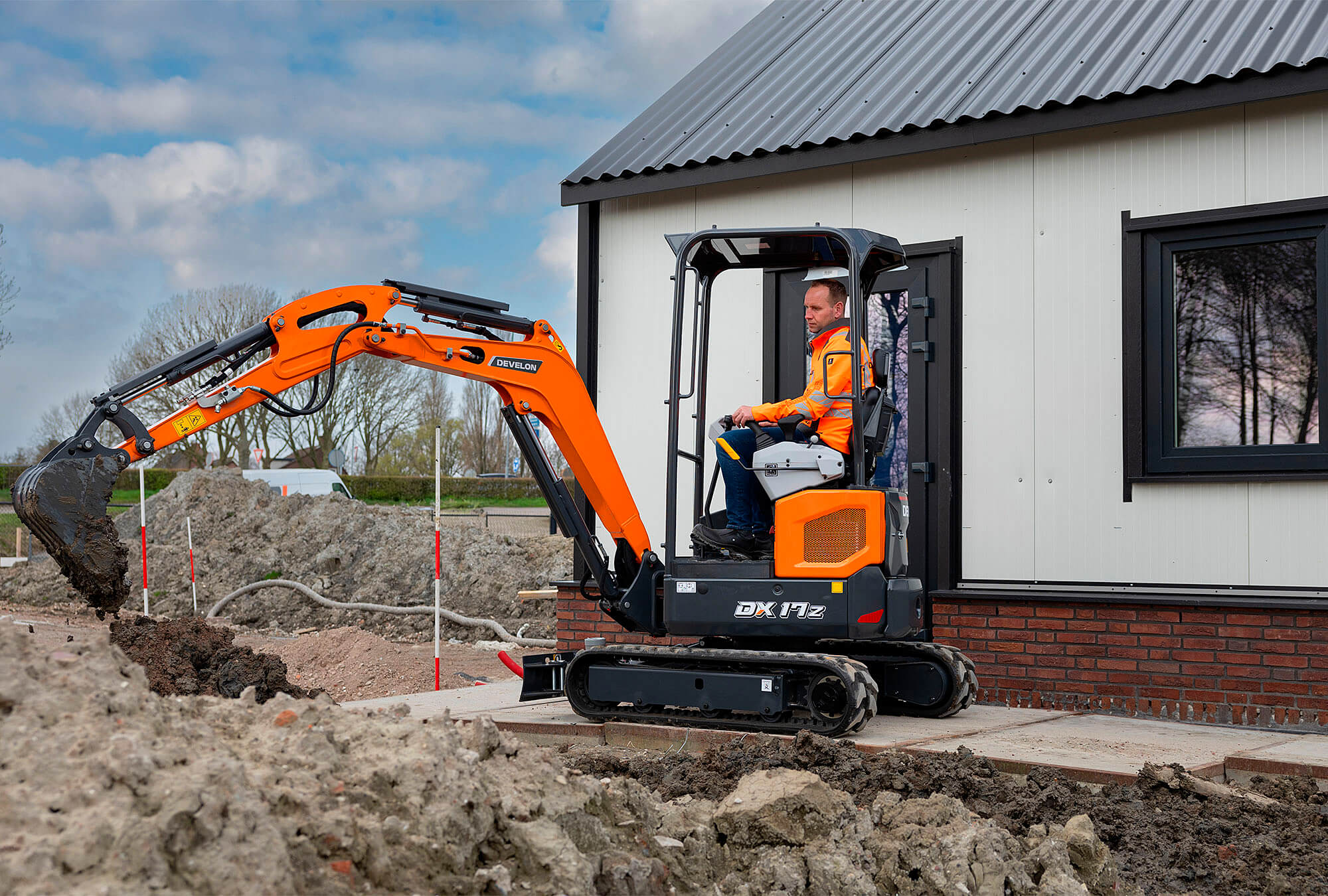

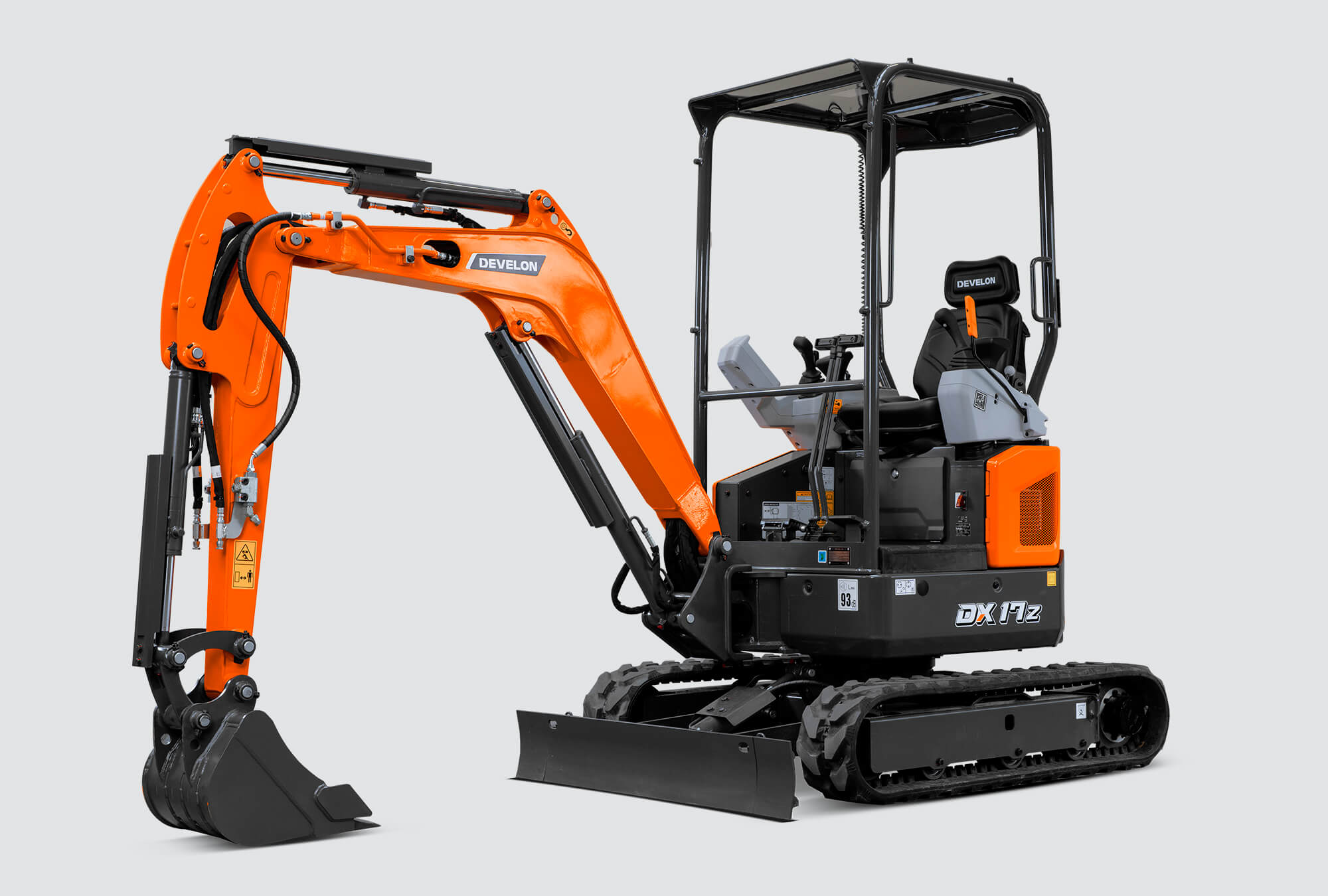

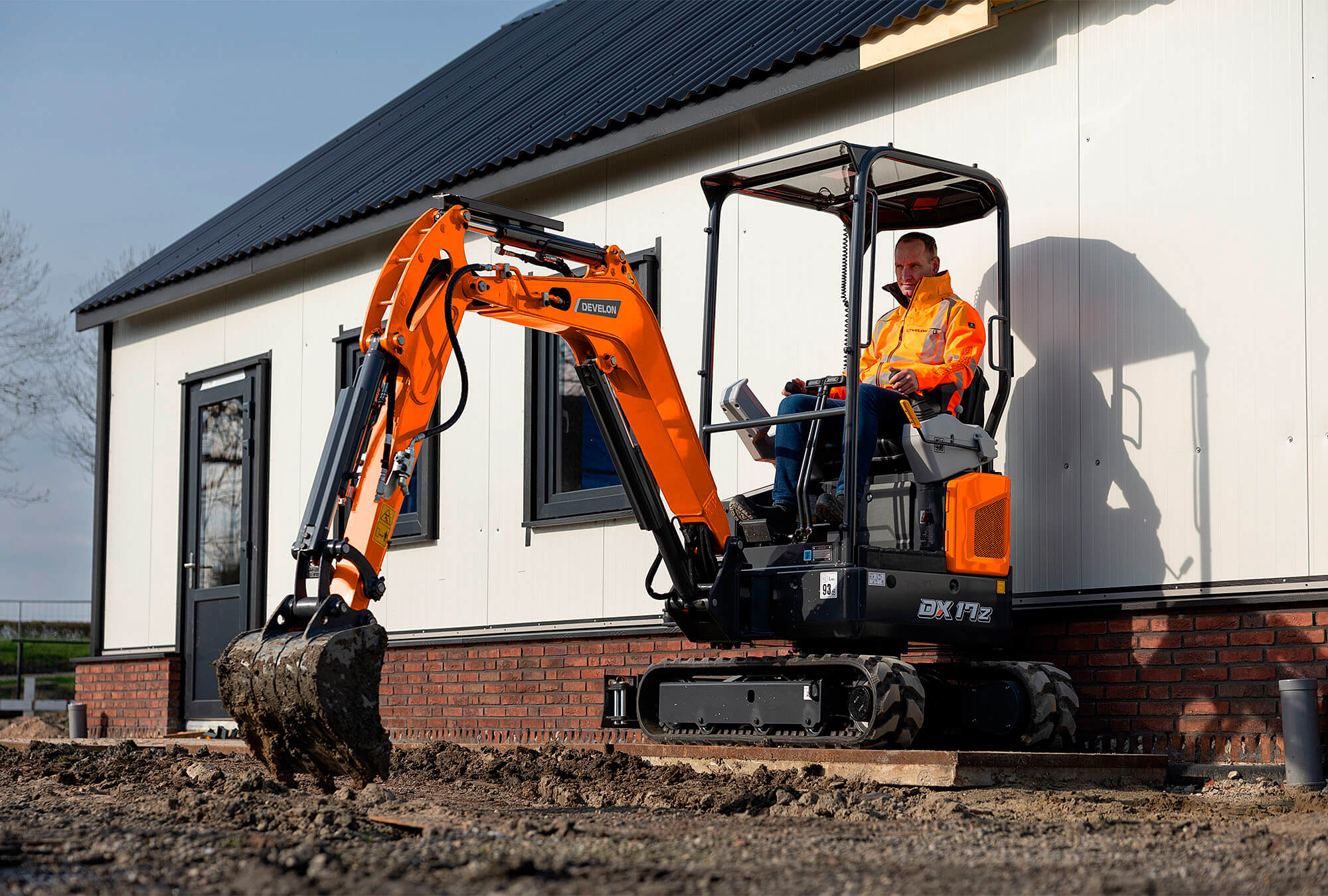

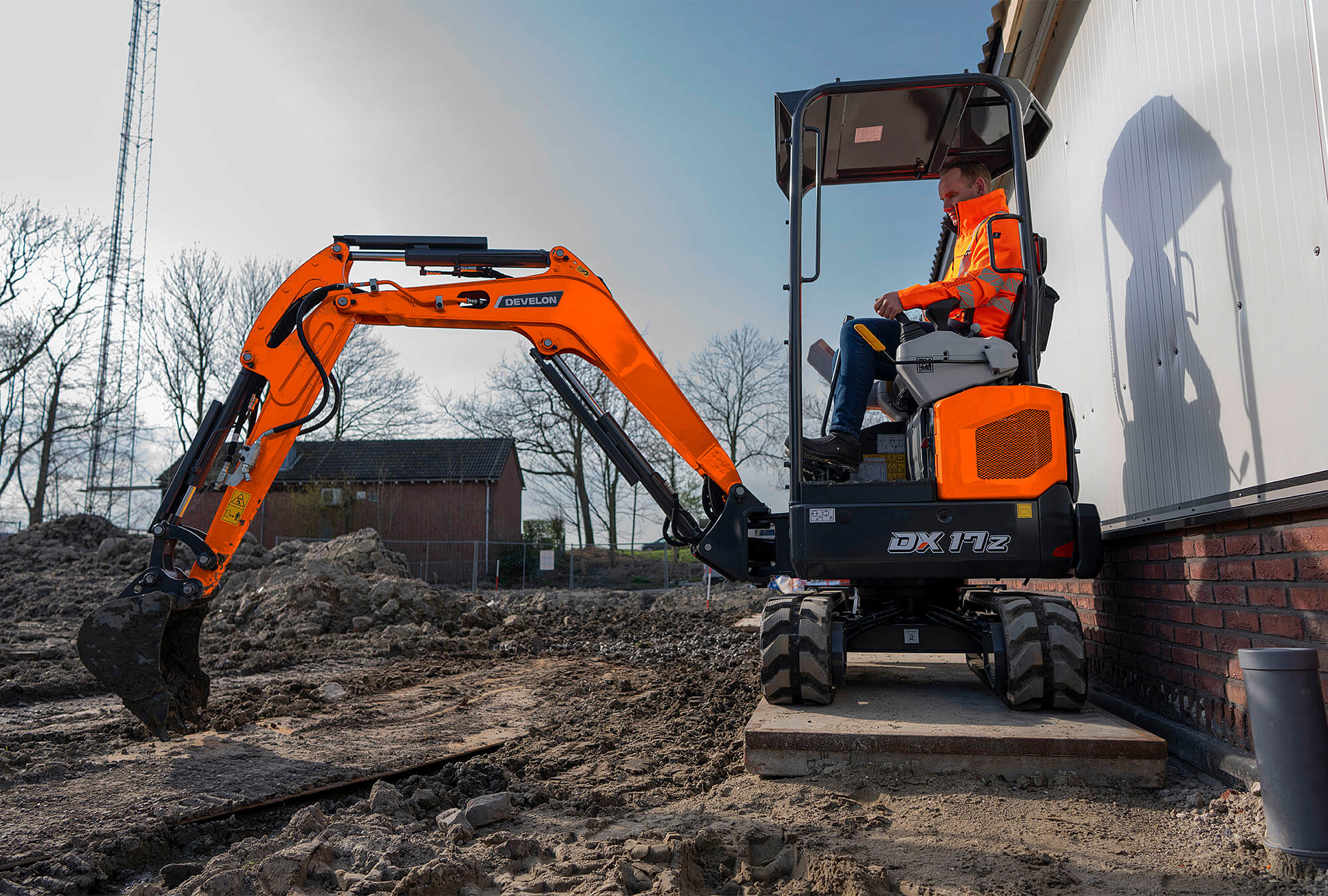

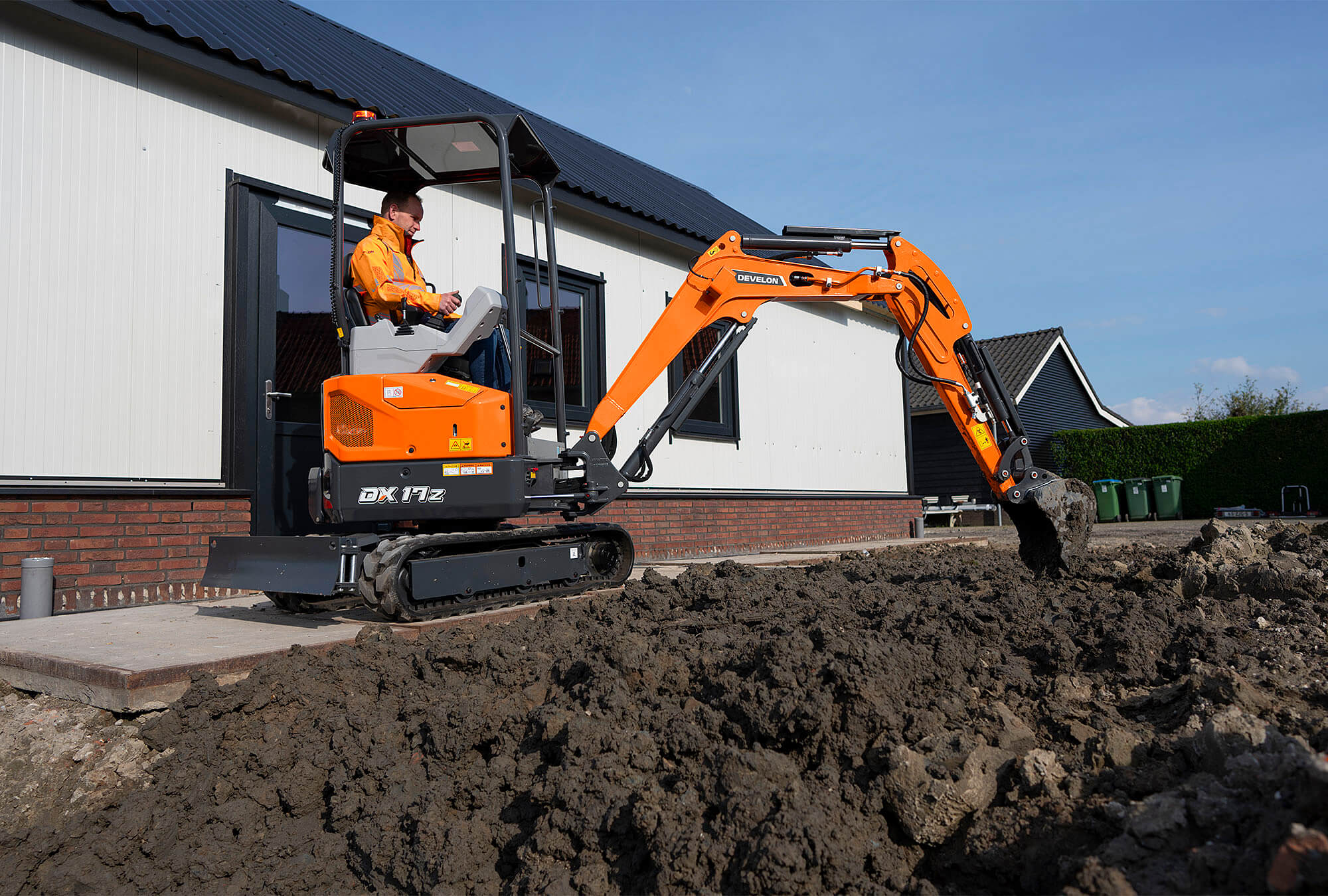

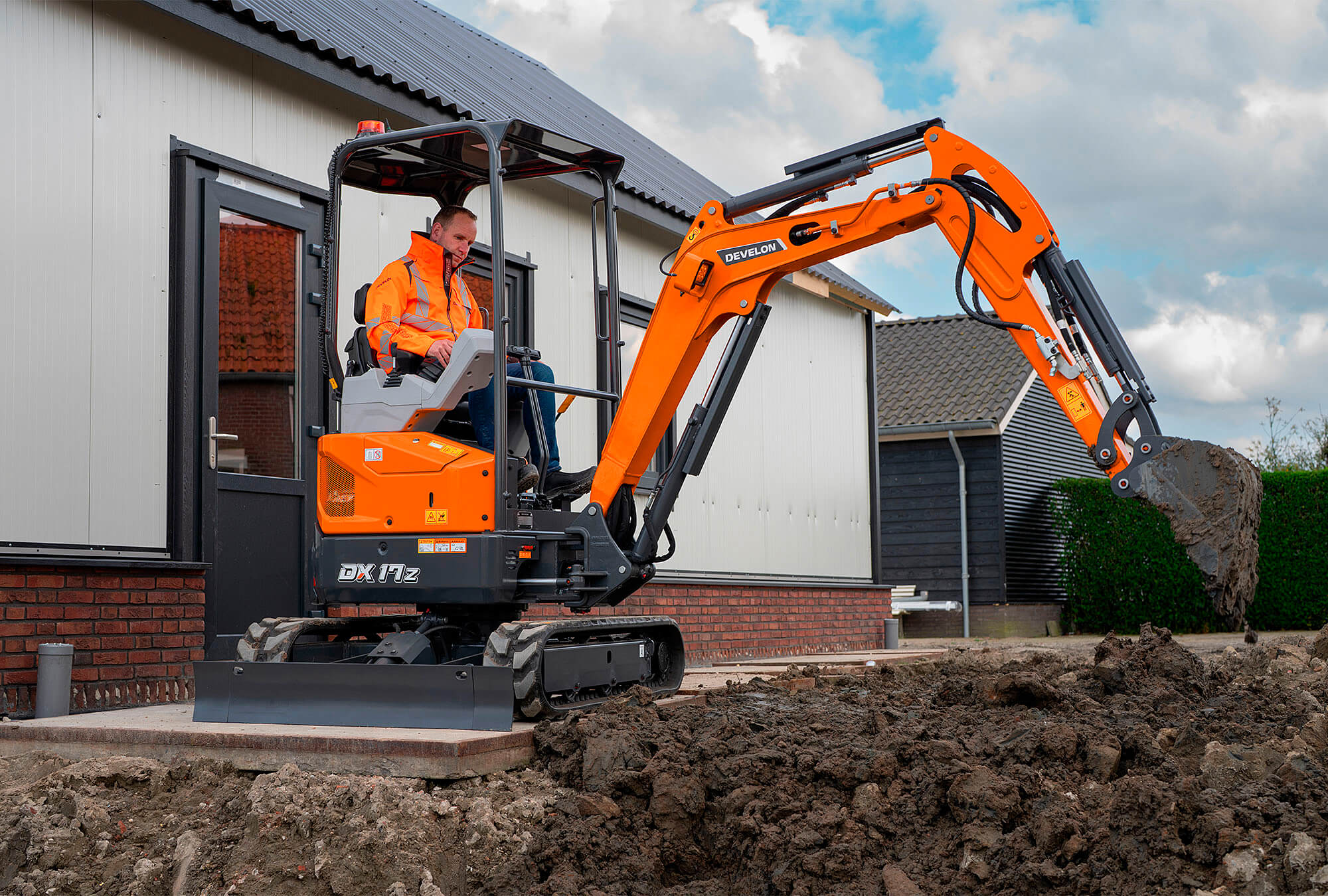

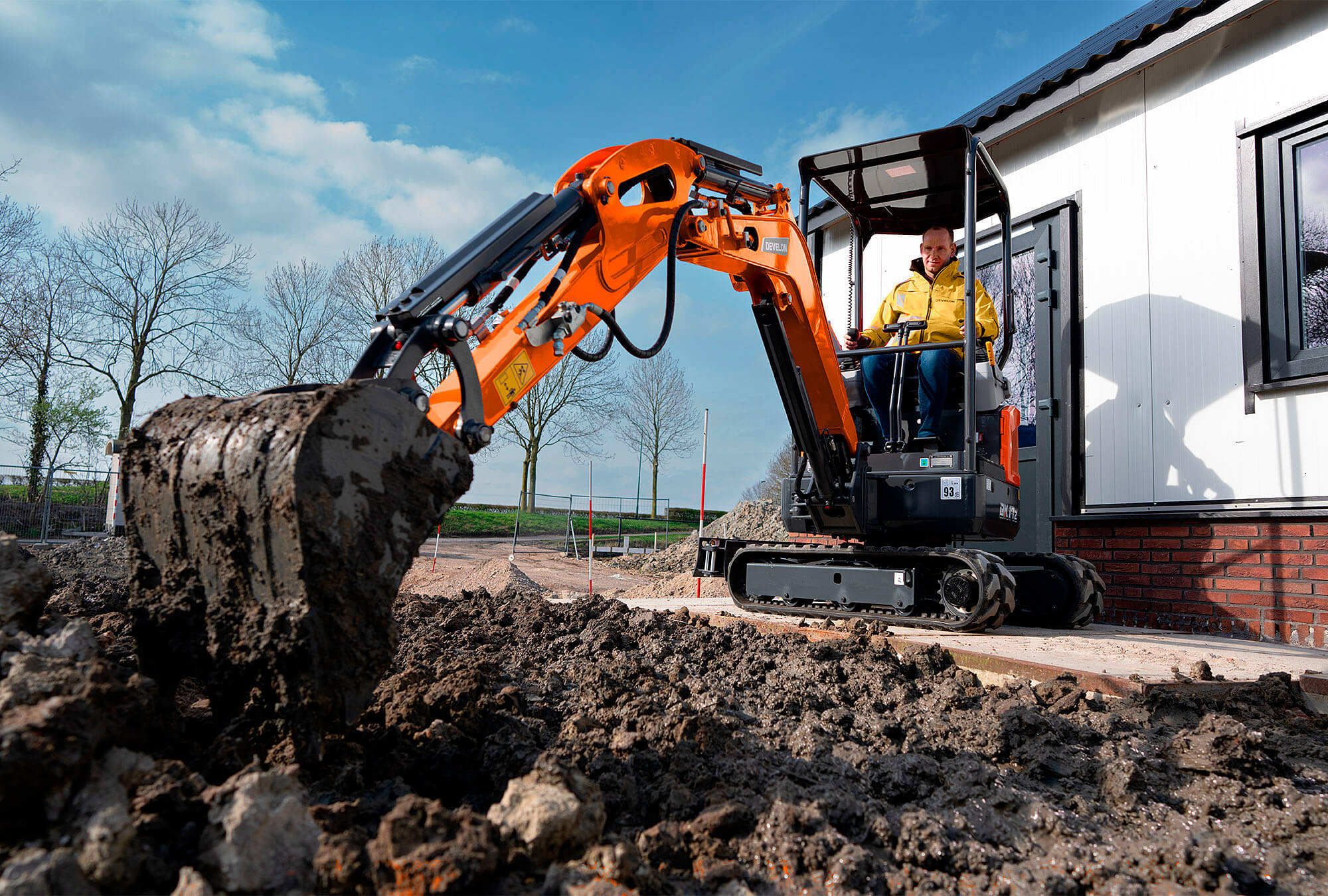

DX17Z-7

I projekter, hvor hver centimeter tæller, skiller DX17z-7 sig ud som en kompakt kraftcenter, der er klar til at tackle enhver udfordring med finesse!

Specifikationer

Operating weight

1850 kg

Engine power

12.1 kW (16.5 hp) @ 2400 rpm

Buckets

0.04 m3

Max. digging depth (std / long arm)

2240 / 2440 mm

Max. reach ground level (standard/long arm)

3820 / 4010 mm

Digging height

3730 mm

Digging force over bucket (ISO)

14.1 kN

Digging force over arm (ISO)

8.8 kN

Boom swing (L/R)

55°/59°

Rear swing radius

645 mm

Track shoe width

230 mm

Travel speed - low range

2.21 km/h

Travel speed - high range

4.09 km/h

Hydraulic flow

34.6 l/min

Width

994 (1290) mm

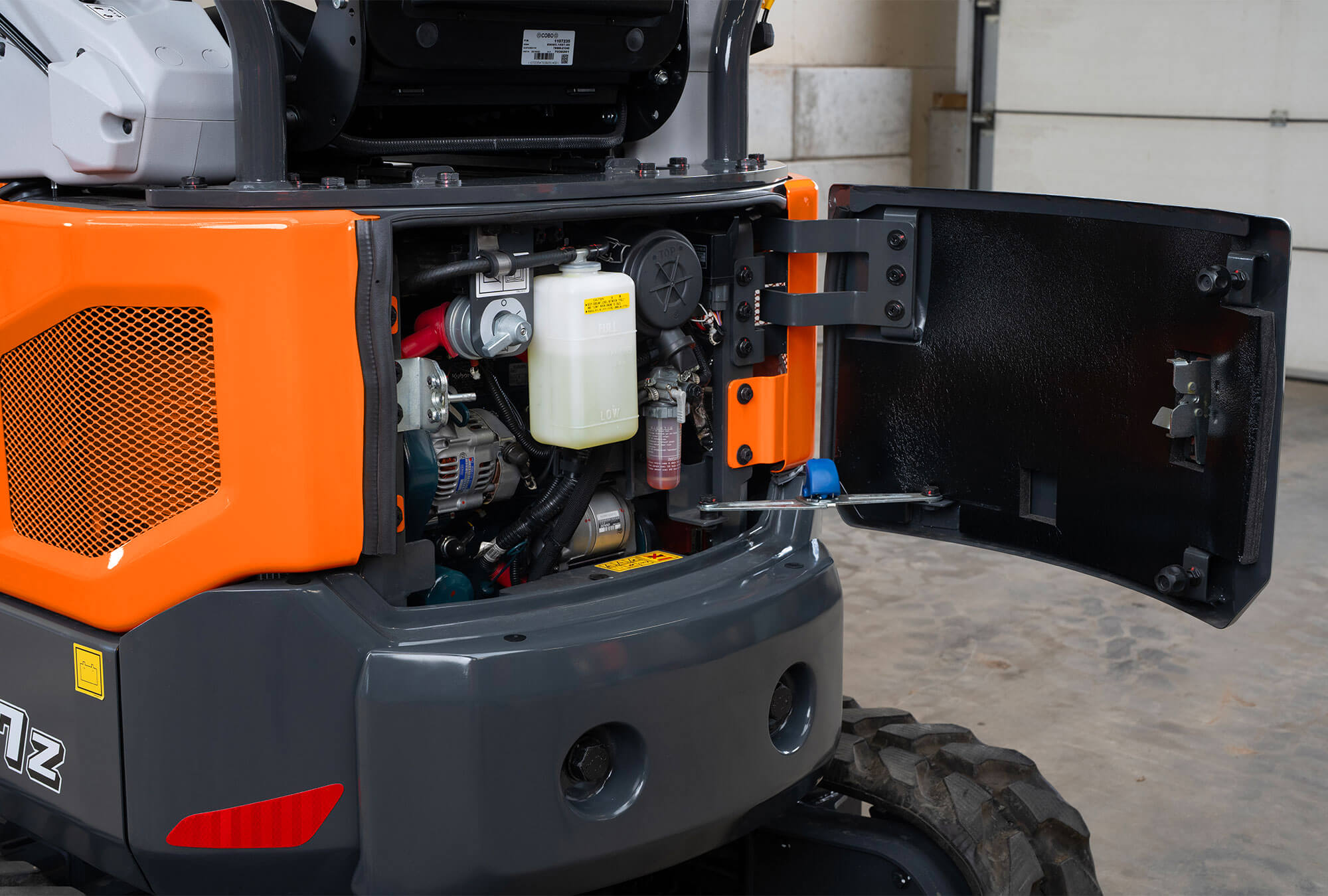

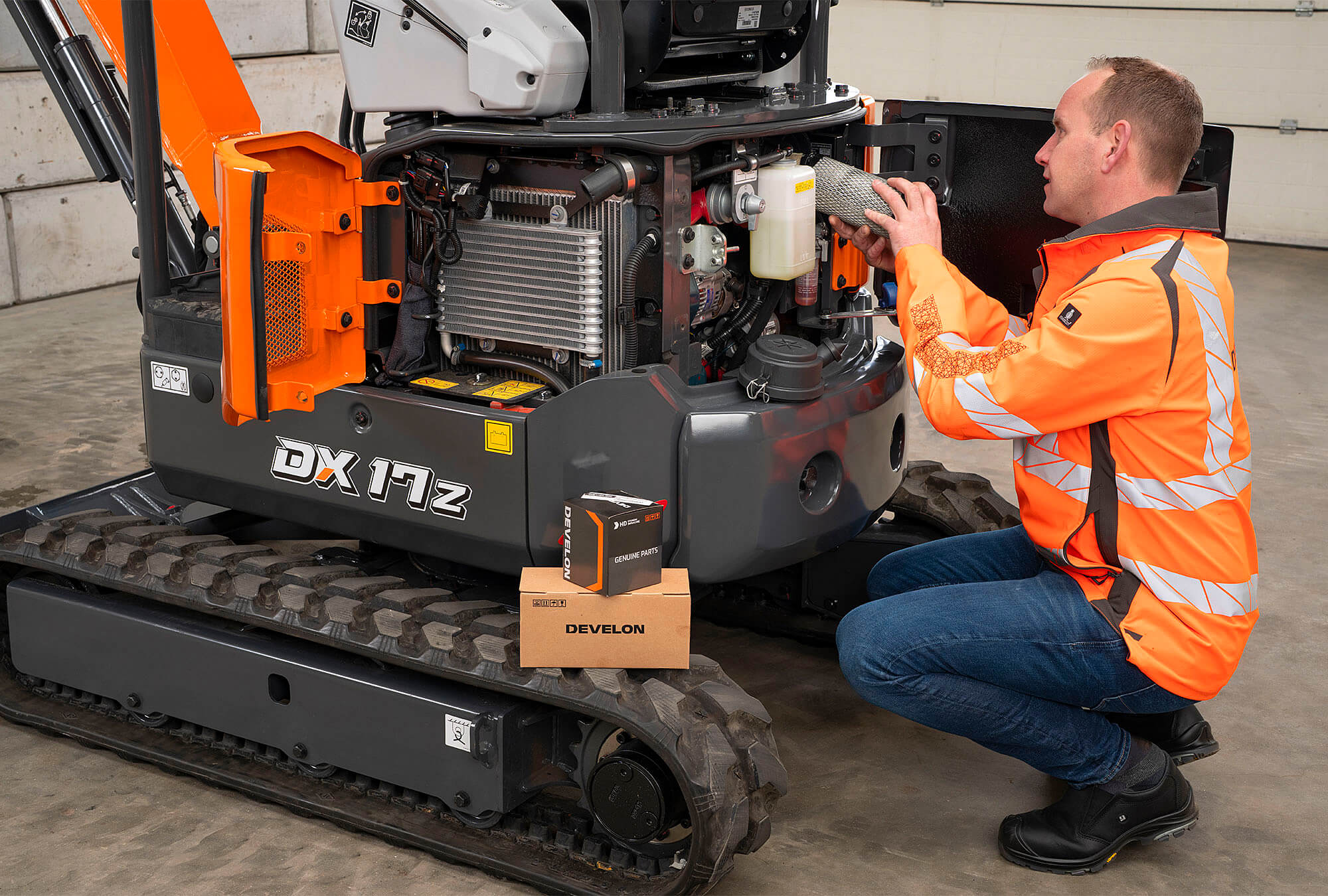

Engine

Kubota D902
